Maintenance
Repair
396 MagneMotion
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Replace Switch Rails
The MagneMover LITE switch rails can be replaced if they become damaged.
Required Tools and Equipment
• Pin, Alignment, Rail to Post, Gen 4.
• Torque wrench.
• Loctite 243, Thread locker Anaerobic Adhesive, Blue.
• Isopropyl Alcohol.
Procedure

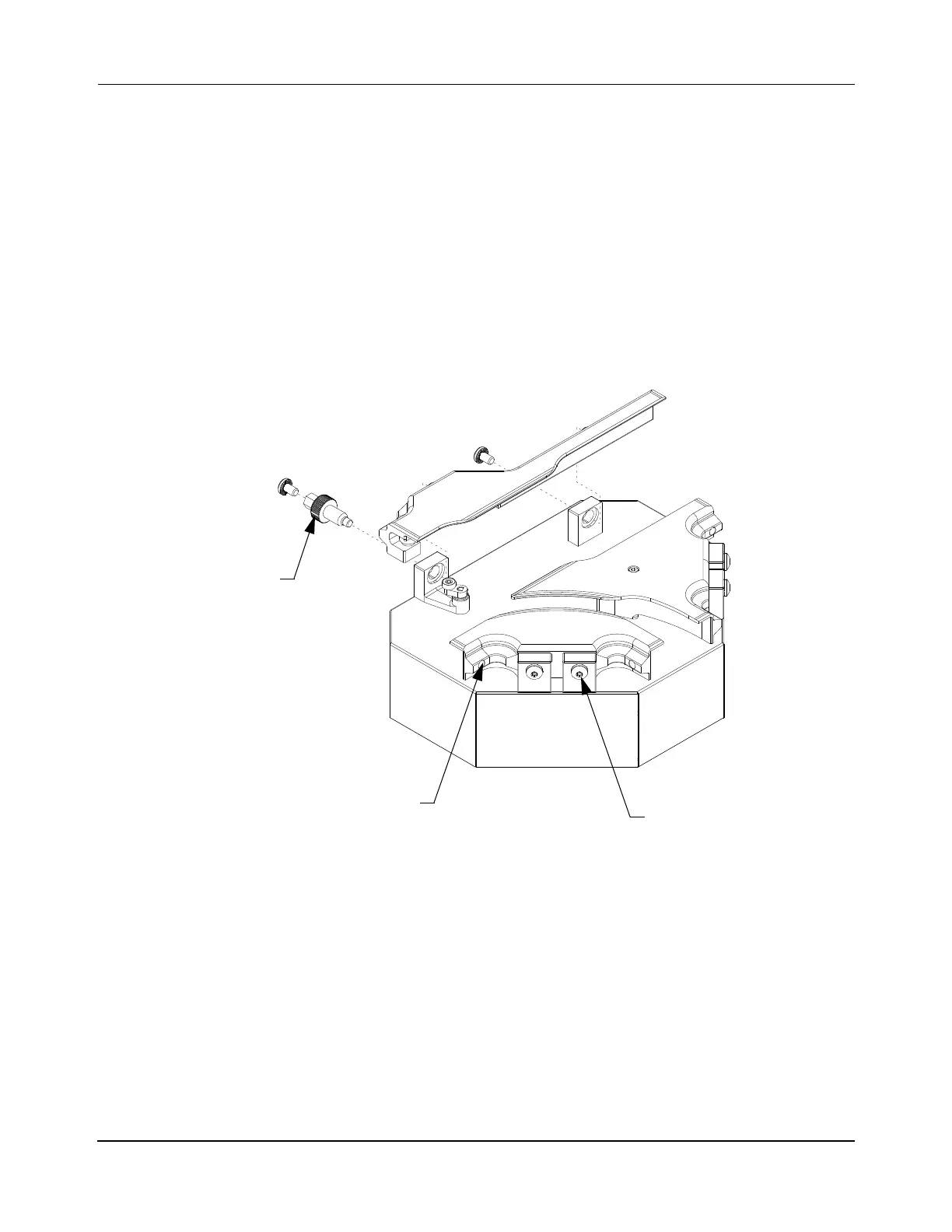

Figure 7-16: Replace Switch Guide Rails
1. Stop all motion on the section of the MagneMover LITE transport system where the
rail is being replaced.
2. Remove the damaged guide rail from the switch.
A. Remove the two M6 x 12 mm screws that secure the V-braces to the guide rail.
B. Remove the two M6 x 10 mm screws that secure the guide rail to the switch.
C. Lift the guide rail off the switch.
Alignment Pin
Guide Rail
Mounting Screw
(2X)
V brace Screw
(2X)
To Next Page
