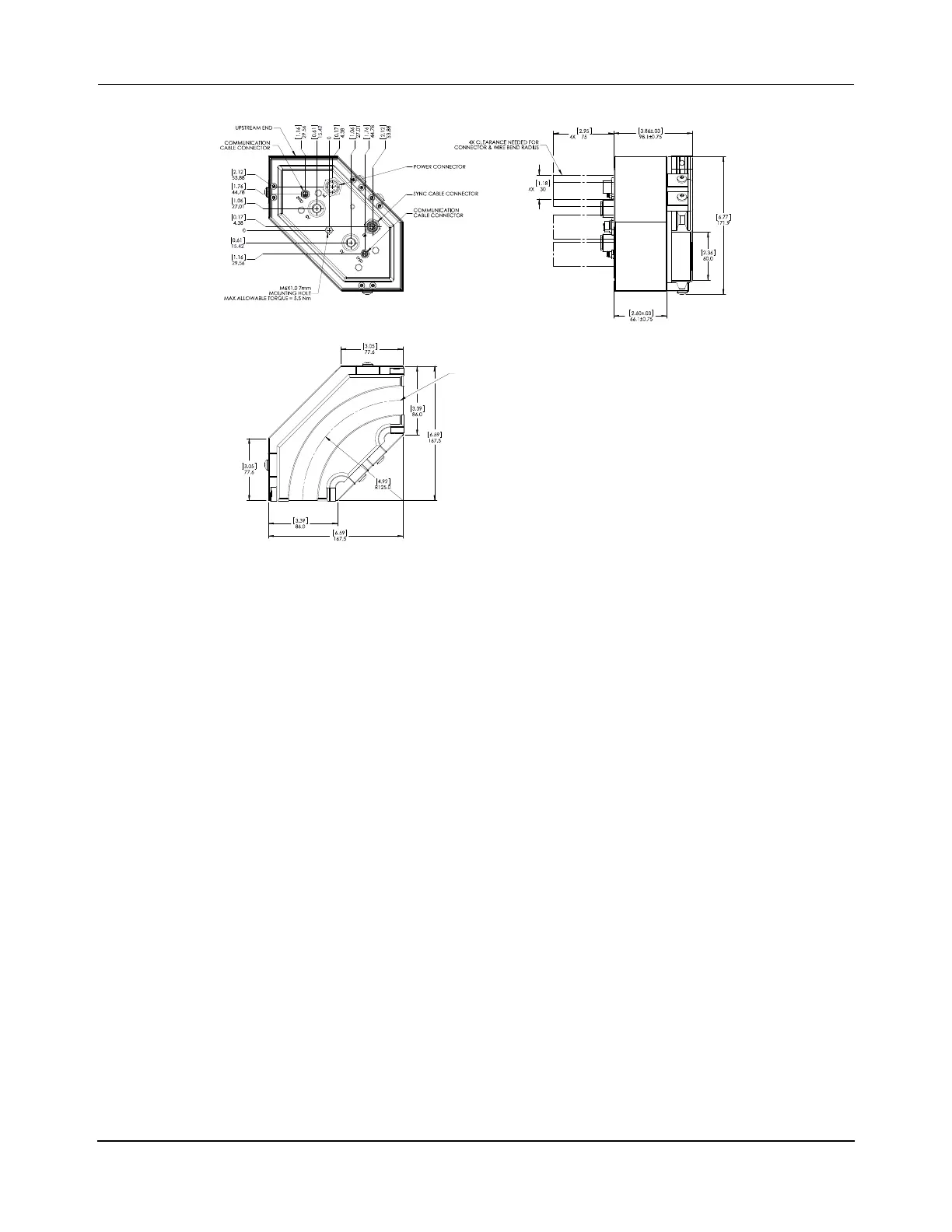

Figure 4-18: 125 mm R 90° Curve RS-422 Air-cooled Motor Mechanical Drawing
NOTE: See Motors and Switches on page 206 for the electrical specifications.
See Air-cooled Motors on page 227 for the pneumatic specifications.
Only available with Aluminum rails.
Only available with the Synchronization option installed.
The exclusion zones that are shown are for the MM LITE motor only. Additional
exclusion zones may be required based on the material being transported.
Ingress Protection Rating: Designed for IP65 (IEC 60529).
Vibration Rating: 5…500 Hz. @ 2 g.
Shock Rating: 15 g.
Exposed Materials
• 6061-T6 AL (AL rail posts), Anodized per MIL-A8625-F, Type II, Class 1, Non-dyed.
• 6061-T6 AL (AL rails), Hardcoat Anodized per MIL-A-8625-F, Type III, Class 1, Non-dyed.
• Copper alloy, Nickel plate.
• Zinc, Nickel plate.
• Dow Corning
®
Silicone 737 and 734.
• EPDM (synthetic rubber).
• A4 SS.
• 316 SS.
• 316L SS, Passivated.
• A286 SS.
• 300 Series SS, Passivated.
• 303 SS.
• 304 SS.
• 303 SS, Nickel plate (air ports).
• Steel, Zinc plate (air port plug).
All Dimensions in Millimeters [Inches]Weight: 1.8 kg [4 lb]
PUCK TRAVEL
PATH
700-1308-12
