Rockwell Automation MagneMotion MagneMover LITE User Manual

Installation
Option Installation
296 MagneMotion
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Precision Locator Installation
When installing the optional precision locator, make sure that all previous installation steps
except mounting the motors where the precision locators are installed has been completed. A
typical assembly is shown in Figure 5-43.
NOTE: The precision locator cannot be used with the precision rails option.

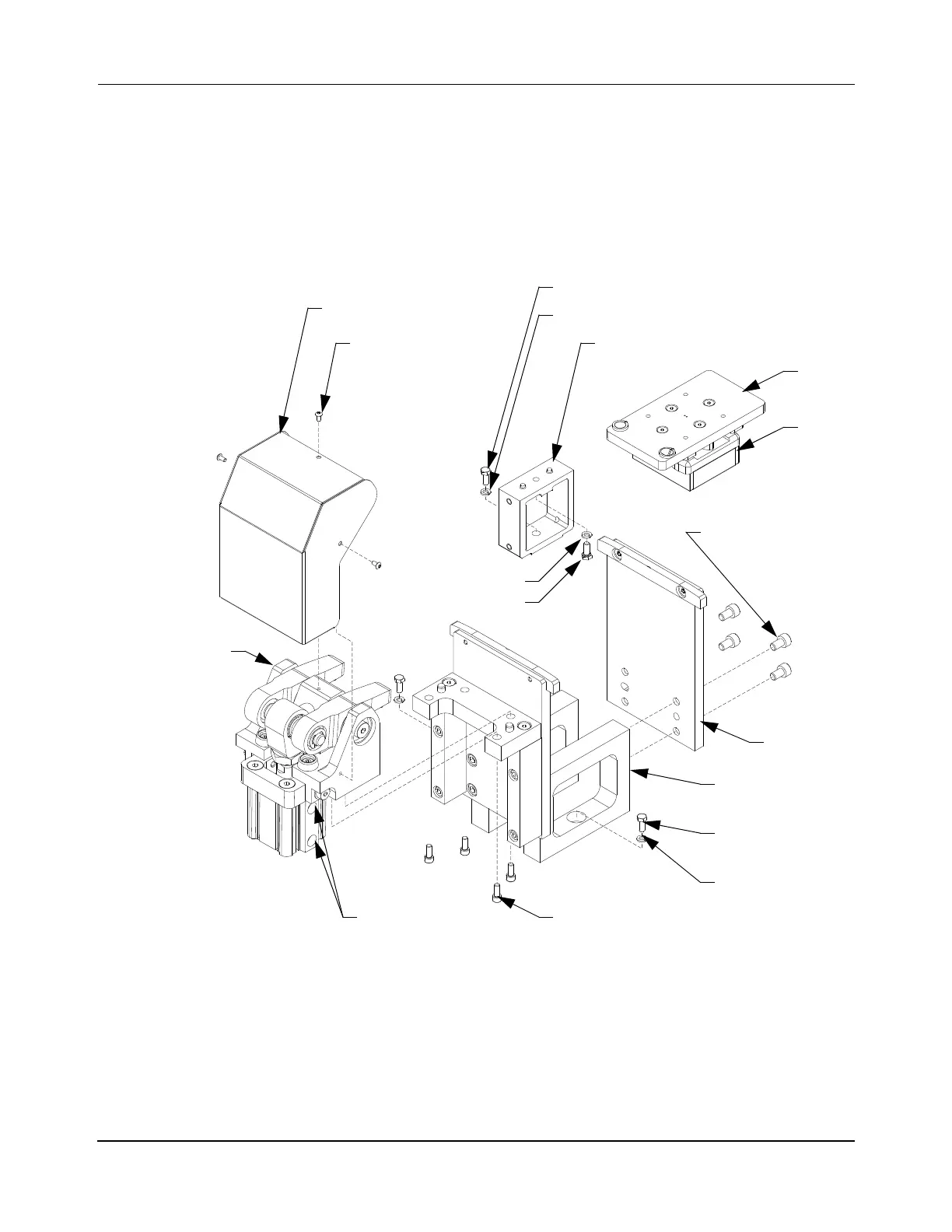

Figure 5-43: MagneMover LITE Precision Locator Option, Standard
Back Plate
Pallet
Precision
Locator
Puck
Adjustable Motor Mount
M6 x 20 mm Bolt
M6 Lock Washer
M8 x 20 mm Bolt
M8 Lock Washer
M8 x 30 mm Bolt
M8 Lock Washer
(1X per Rib)
(1X per Rib)
M6 x 25 mm Screw
(4X)
M6 x 12 mm Screw
(2X per Rib)
Pneumatic
Connections
Stand Rib
Cover
M3 x 6 mm Screw
(2 + 1X per Locator)
