Wheeled Pucks
Wheeled pucks are used on standard MagneMover LITE transport systems with either alumi-
num or stainless steel integral rails. Each wheeled puck can carry up to a 5 kg [11.0 lb] load.

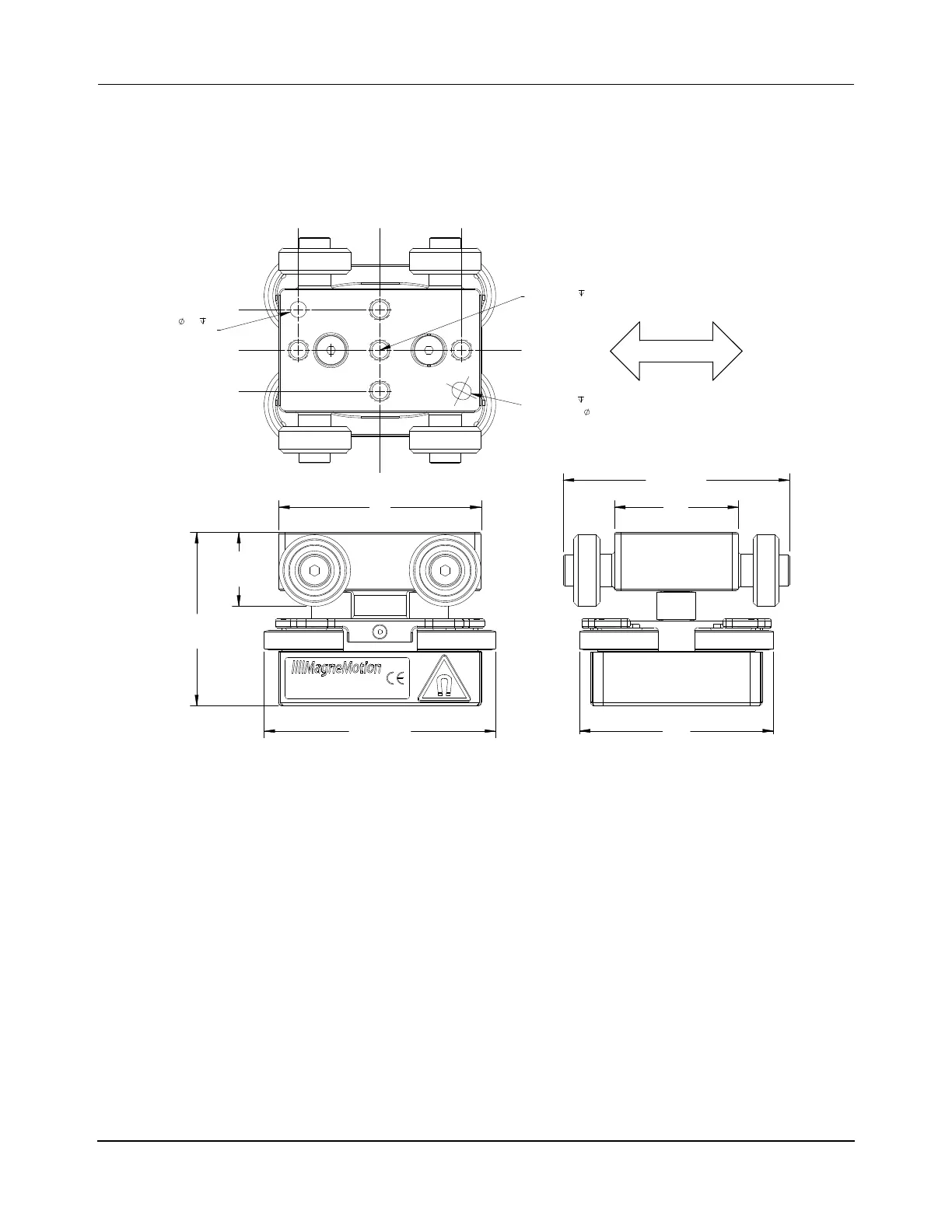

Figure 4-35: 4 Wheel Puck Mechanical Drawing
Exposed Materials
• 7075-T651 Aluminum, Anodized per MIL-A8625, Type III, Class 2, Black.
• 6061-T6 Aluminum, Natural.
• 174-PH/18-8/304/316/440C Stainless Steel.
• PEEK.
• Polyurethane.
• Stainless Steel.
• 316L/316L #2 Stainless Steel.
• UHMW Polyethylene.
All Dimensions in Millimeters [Inches]Weight: 0.63 kg [1.4 lb]
DIRECTION OF TRAVEL
C
L
C
L
0
[0.492]
12.50
[0.492]
12.50
[0.984]
25.00
[0.984]
25.00
0
[2.34]
59.5
[2.80]
71.00
OVERALL LENGTH
[0.894±0.01]
22.71±0.25
(0.5MM [0.02] TYPICAL
WEAR NOT INCLUDED)
[2.44]
62.00
[2.09]
53.20
OVERALL HEIGHT
(FOR LOCATING
M5 DOWEL PIN)
5.05
5.02
6.0
5.05
5.02
(FOR LOCATING M5 DOWEL PIN)
X 6.0 SLOT 6.0
5X M6X0.8 - 6H 7.5 MAX 304SS DRY-FILM LIBE HELICOIL
(24 IN-LBS MAX TORQUE, NO THREADLOCKER)
[2.73]
69.4
OVERALL WIDTH
[1.50]
38.0
700-1738-02
