Rockwell Automation MagneMotion MagneMover LITE User Manual

Specifications and Site Requirements
Mechanical Specifications
194 MagneMotion
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Spine Plates
Spine plates are preassembled onto the support post assemblies that are used by the precision
rail system as shown in Figure 4-44.
Exposed Materials
• Aluminum MIC-6
®
.

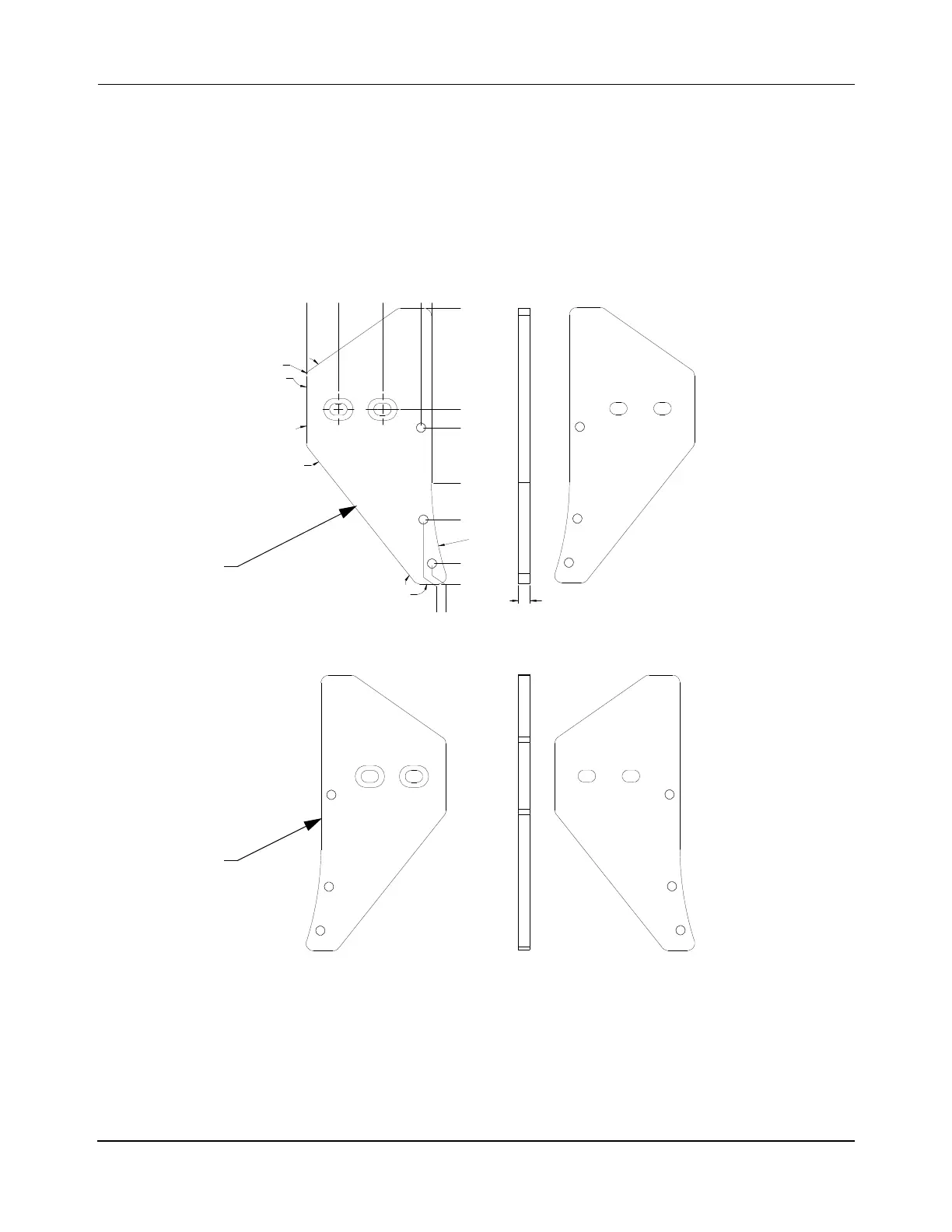

Figure 4-45: Precision Rail Straight to Curve, Spine Plates, Mechanical Drawing
0
0
2X 54.98
64.98
94.99
114.98
138.90
150.0
5.62 26.63 50.63 68.0
4.30 0.35
6X R4
128.5°
141.5°
R169.88
125.0°
[0.25]
6.35
Right
Left
All Dimensions in Millimeters
700-1622-00
700-1622-03
