Specifications and Site Requirements
Mechanical Specifications
168 MagneMotion
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022

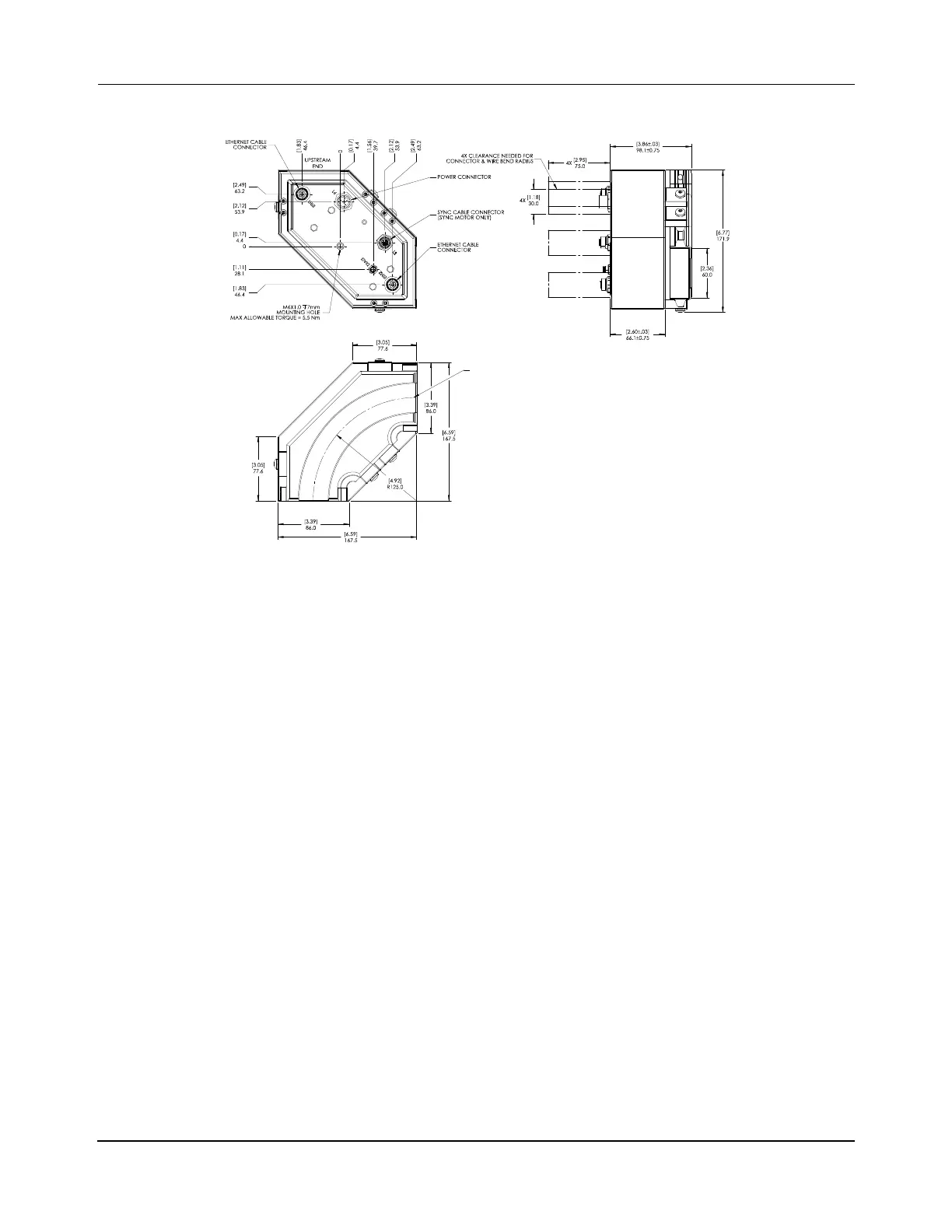

Figure 4-21: 125 mm R 90° Curve Ethernet Motor Mechanical Drawing
NOTE: See Motors and Switches on page 206 for the electrical specifications.
Aluminum rails shown. Dimensions are the same for stainless steel rail version.
The Sync cable connection is only present if the Synchronization option is installed.
If the Sync Option connector is not installed, a low-profile cap is installed to cover
the connector mounting hole.
The exclusion zones that are shown are for the MM LITE motor only. Additional
exclusion zones may be required based on the material being transported.
Ingress Protection Rating: Designed for IP65 (IEC 60529).
Vibration Rating: 5…500 Hz. @ 2 g.
Shock Rating: 15 g.
Exposed Materials
• 6061-T6 AL (AL rail posts), Anodized per MIL-A8625-F, Type II, Class 1, Non-dyed.
• 6061-T6 AL (AL rails), Hardcoat Anodized per MIL-A-8625-F, Type III, Class 1, Non-dyed.
• Copper alloy, Nickel plate.
• Brass, Nickel plate.
• Zinc, Nickel plate.
• Dow Corning
®
Silicone 737 and 734.
• EPDM (synthetic rubber).
• A4 SS.
• 304L SS, Nickel plate (SS rails).
• 316 SS.
• 316L SS, Passivated.
• A286 SS.
• 300 Series SS, Passivated.
• 303 SS.
• 304 SS.
All Dimensions in Millimeters [Inches]Weight: 1.8 kg [4 lb]
700-1708-40, 700-1708-41, 700-1708-43, 700-1708-44
