Specifications and Site Requirements
Mechanical Specifications
MagneMover LITE User Manual 169
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022

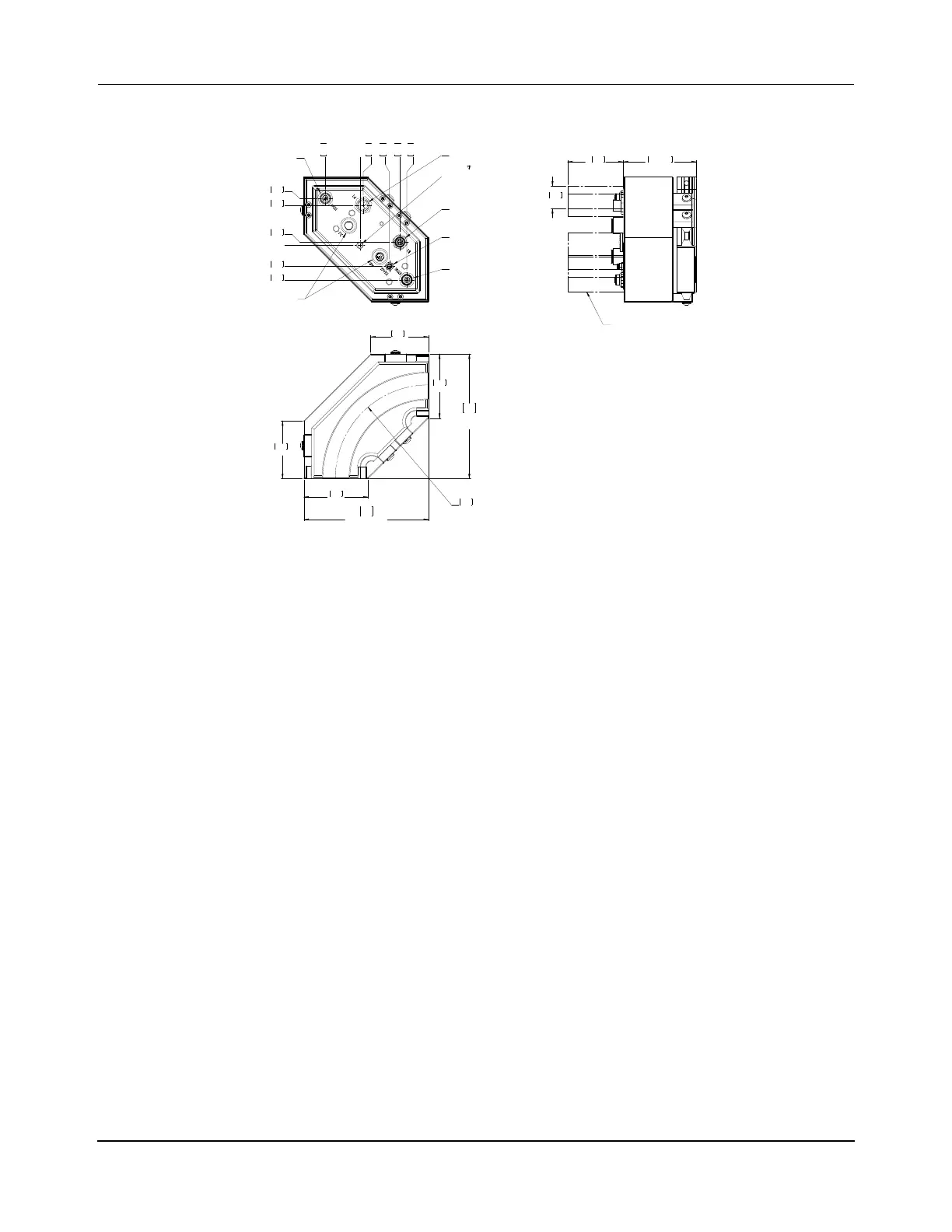

Figure 4-22: 125 mm R 90° Curve Ethernet Air-cooled Motor Mechanical Drawing
NOTE: See Motors and Switches on page 206 for the electrical specifications.
See Air-cooled Motors on page 227 for the pneumatic specifications.
Only available with Aluminum rails.
Only available with the Synchronization option installed.
The exclusion zones that are shown are for the MM LITE motor only. Additional
exclusion zones may be required based on the material being transported.
Ingress Protection Rating: Designed for IP65 (IEC 60529).
Vibration Rating: 5…500 Hz. @ 2 g.
Shock Rating: 15 g.
Exposed Materials
• 6061-T6 AL (AL rail posts), Anodized per MIL-A8625-F, Type II, Class 1, Non-dyed.
• 6061-T6 AL (AL rails), Hardcoat Anodized per MIL-A-8625-F, Type III, Class 1, Non-dyed.
• Copper alloy, Nickel plate.
• Brass, Nickel plate.
• Zinc, Nickel plate.
• Dow Corning
®
Silicone 737 and 734.
• EPDM (synthetic rubber).
• A4 SS.
• 316 SS.
• 316L SS, Passivated.
• A286 SS.
• 300 Series SS, Passivated.
• 303 SS.
• 304 SS.
• 303 SS, Nickel plate (air ports).
• Steel, Zinc plate (air port plug).
All Dimensions in Millimeters [Inches]Weight: 1.8 kg [4 lb]
0
0
4.38
0.17
1.56
39.74
2.12
53.88
2.49
63.16
1.83
46.44
46.44
1.83
63.16
2.49
1.11
28.15
2.12
53.88
0.17
4.38
75
2.95
5X
5X
1.18
30
R125
4.92
3.06
77.7
ETHERNET
DIAGNOSTIC
CONNECTOR
POWER CONNECTOR
UPSTREAM
END
CABLE CONNECTOR
SYNC CABLE
(SYNC MOTOR ONLY)
CONNECTOR
CONNECTOR
ETHERNET
MOUNTING HOLE
TORQUE = 5.5Nm
MAX ALLOWABLE
7mmM6X1.0
AIR PORTS
(MARKED A1 & A2)
CLEARANCE NEEDED FOR
CONNECTOR &WIRE BEND RADII
3.87±0.03
98.3±0.75
ENCLOSURE - RAIL
6.61
6.56
168.0
166.5
3.40
86.3
3.40
6.56
168.0
166.5
ENCLOSURE - RAIL
6.61
86.3
3.06
77.7
700-1708-43-AC, 700-1708-44-AC
