Precision Rail Lubrication System
The precision rail lubrication system uses push-to-connect fittings for all connections and
comes with all parts that are required to connect the precision rails to the pump.

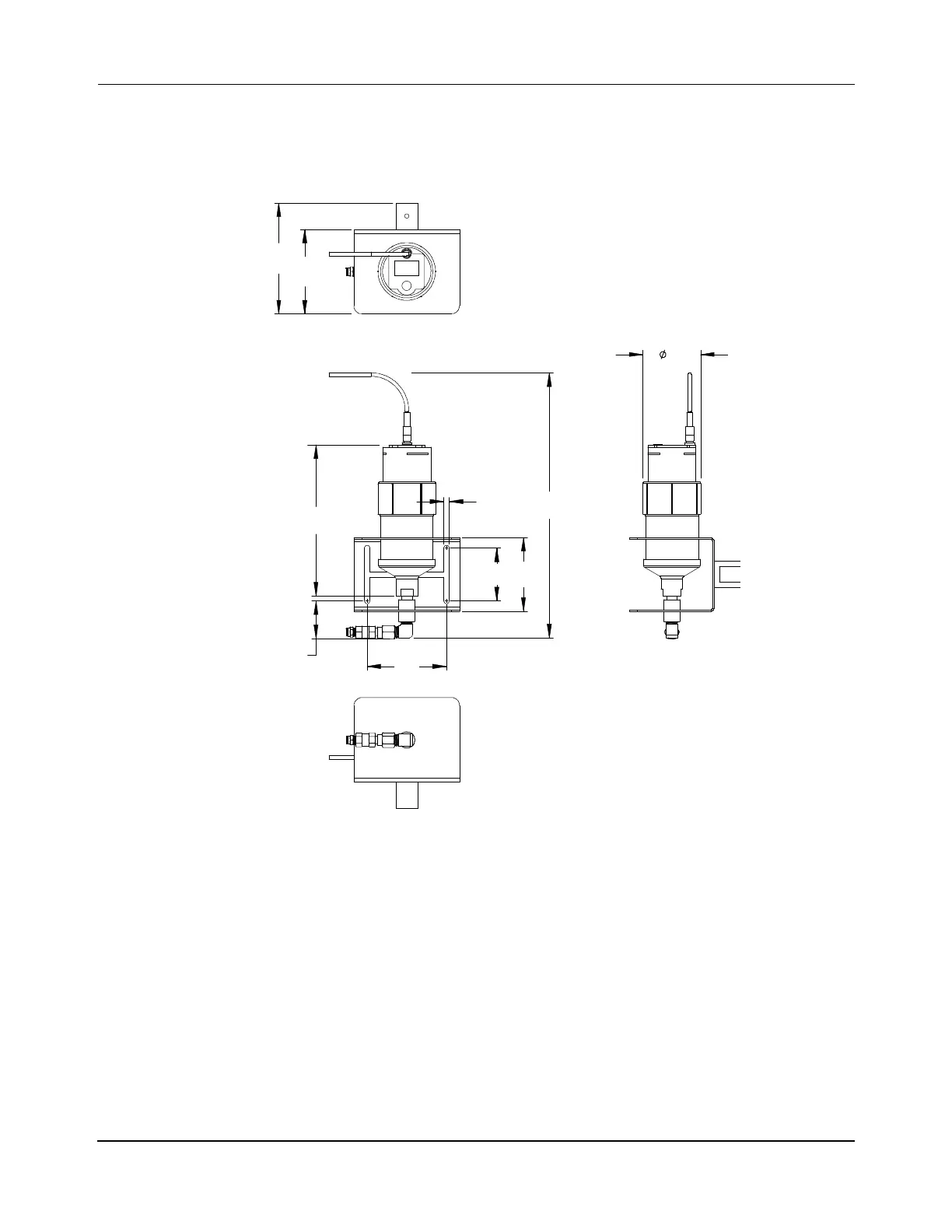

Figure 4-50: Precision Rail Support Lubricator Pump
NOTE: See Precision Rail Lubrication Pump on page 223 for the electrical specifications.
Must be used with a rail section with lubricator attachment features (see Table 4-6).
Exposed Materials
• Kluber 4 UH1-68N oil.
• Fluoropolymer Tubing.
• 304 SS.
• Brass.
•Plastic.
• Technical Polymer.
• Nitrile rubber.
• Brass, Nickel plate.
• Nylon Plastic.
• Drive housing with LCD.
All Dimensions in Millimeters [Inches]
C920600
[4.0]
101.6
[3.75]
95.25
[7.15]
181.7
[1.79]
45.4
[3.5]
88.9
[2.5]
63.5
[0.25]
6.4
[12.5]
318.5
[2.7]
69
[5.25]
133.4
