Rockwell Automation MagneMotion MagneMover LITE User Manual

Maintenance
Repair
MagneMover LITE User Manual 413
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
• Bumper, Puck, Wheeled, ML (2X).
• Screw, Mach, Che, 6 Lobe, SS, M4 x 0.7 x 7.5, Dri-Loc (4X).
• Screw, Shoulder, SS, 1/4” Ø x 9/16” L,10-32, Dri-Loc (4X).
• Washer, Shim, SST, 1/4” ID x 3/8” OD x 0.115” L (4X).
• Screw, Mach, Flat, Hex, SS, M2 x 0.4 x 5, Dri-Loc (2X).
• Torx T7 wrench.
• 1/8 in hex wrench.
• Metric hex wrench set.
• Torque wrench.
• Isopropyl Alcohol.
• Loctite 243.
Procedure

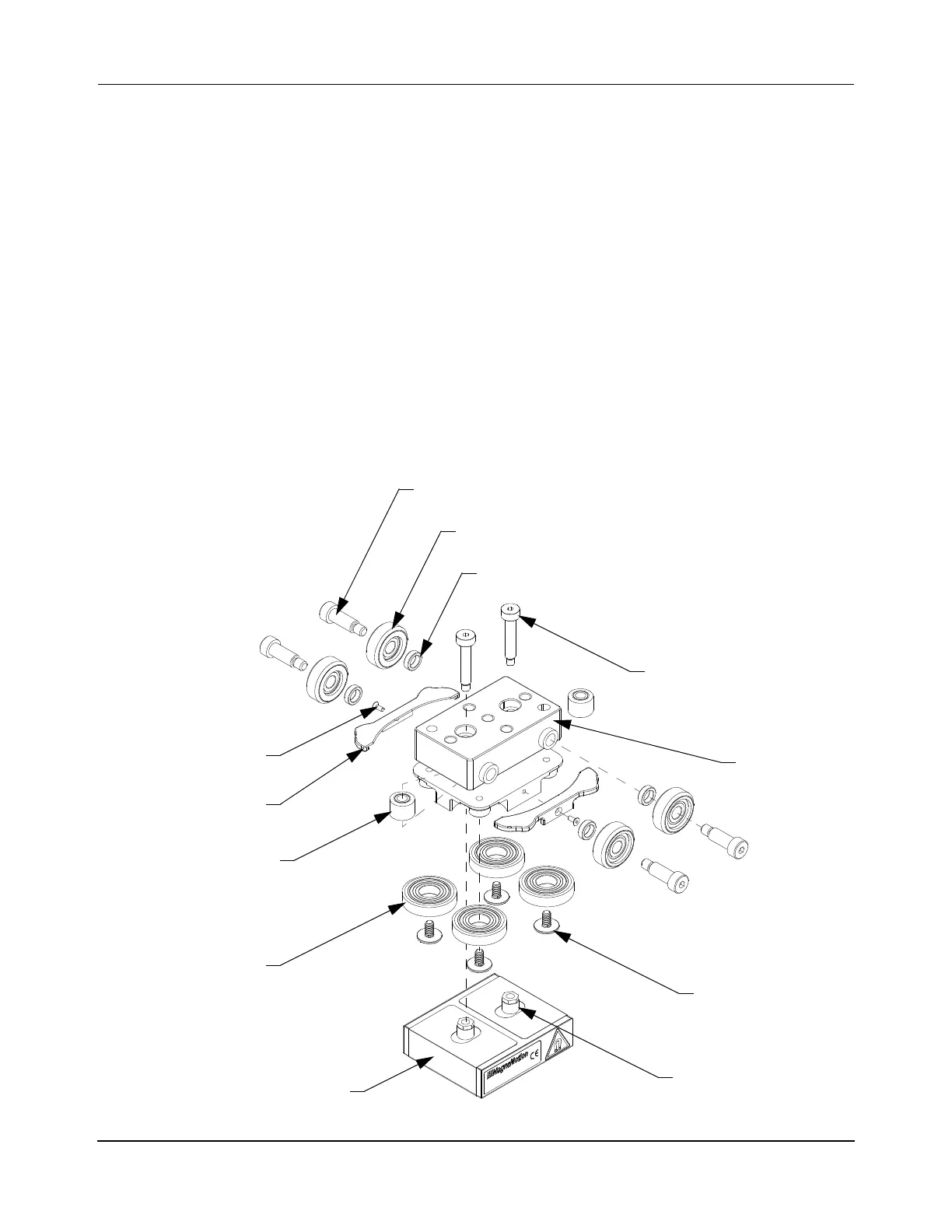

Figure 7-25: Replace 4-Wheel Puck Wear Points
M4 x 23.5 Shoulder Screw
(2X)
Magnet Array
10-32 Ultra-Low-Profile Shoulder Screw
Suspension (Payload) Wheels
(4X)
(4X)
M2 Screw
(2X)
Bumper
(2X)
Lateral Guide
Wheels (4X)
M4 x 0.7 x 7.5
Screws (4X)
Septum Wheel
Puck Body
(2X)
Shim Washer
(4X)
Threaded Standoff
(ref)
