Specifications and Site Requirements
Mechanical Specifications
MagneMover LITE User Manual 153
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022

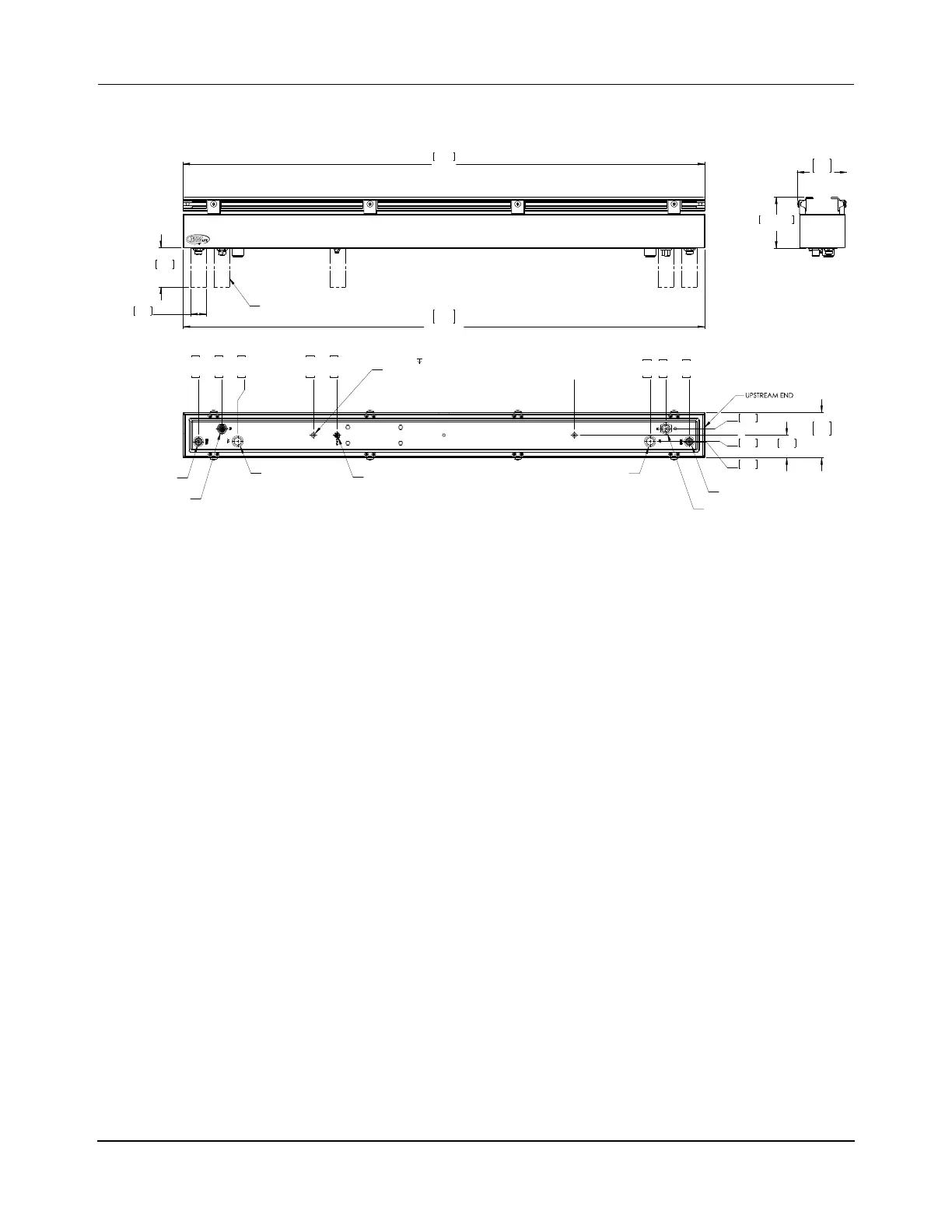

Figure 4-6: 1000 mm Ethernet Air-cooled Motor Mechanical Drawing
NOTE: See Motors and Switches on page 206 for the electrical specifications.
See Air-cooled Motors on page 227 for the pneumatic specifications.
Only available with Aluminum rails.
Only available with the Synchronization option installed.
The exclusion zones that are shown are for the MM LITE motor only. Additional
exclusion zones may be required based on the material being transported.
Ingress Protection Rating: Designed for IP65 (IEC 60529).
Vibration Rating: 5…500 Hz. @ 2 g.
Shock Rating: 15 g.
Exposed Materials
• 6061-T6 AL (AL rail posts), Anodized per MIL-A8625-F, Type II, Class 1, Non-dyed.
• 6063-T5 AL (AL rails), Hardcoat Anodized per MIL-A-8625-F, Type III, Class 1, Non-dyed.
• Copper alloy, Nickel plate.
• Brass, Nickel plate.
• Zinc, Nickel plate.
• Dow Corning
®
Silicone 737 and 734.
• EPDM (synthetic rubber).
• A4 SS.
• 316 SS.
• 316L SS, Passivated.
• A286 SS.
• 300 Series SS, Passivated.
• 303 SS.
• 304 SS.
• 303 SS, Nickel plate (air ports)
• Steel, Zinc plate (air port plug).
All Dimensions in Millimeters [Inches]Weight: 7.3 kg [16 lb]
3.75
96.2
3.79
95.2
3.86±0.03
98.01±0.75
RAIL
999.5
39.35
30
1.18
5X
5X
2.95
75
0
0
5.71
145
6.89
175
8.67
220.1
0.49
12.50
0.49
12.50
0.47
12.00
17.91
455
19.69
500
25.39
645
26.57
675
28.35
720.1
39.37
39.31
1000.0
998.5
ENCLOSURE
MAX ALLOWABLE TORQUE = 5.5Nm
CONNECTOR
AIR PORT (MARKED A2)
SYNC CABLE CONNECTOR
DIAGNOSTIC CABLE
ETHERNET
CONNECTOR
(SYNC MOTOR ONLY)
2X M6X1.0
7mm
MOUNTING HOLE
AIR PORT (MARKED A1)
POWER CONNECTOR
CONNECTOR
ETHERNET CABLE
1.70
43.1
3.48
3.39
88.50
86.00
CLEARANCE NEEDED FOR
CONNECTOR & WIRE BEND RADIUS
700-1708-03-AC, 700-1708-04-AC
