Maintenance
Repair
408 MagneMotion
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
5. Lift the linkage plate off the pucks and dispose of properly.

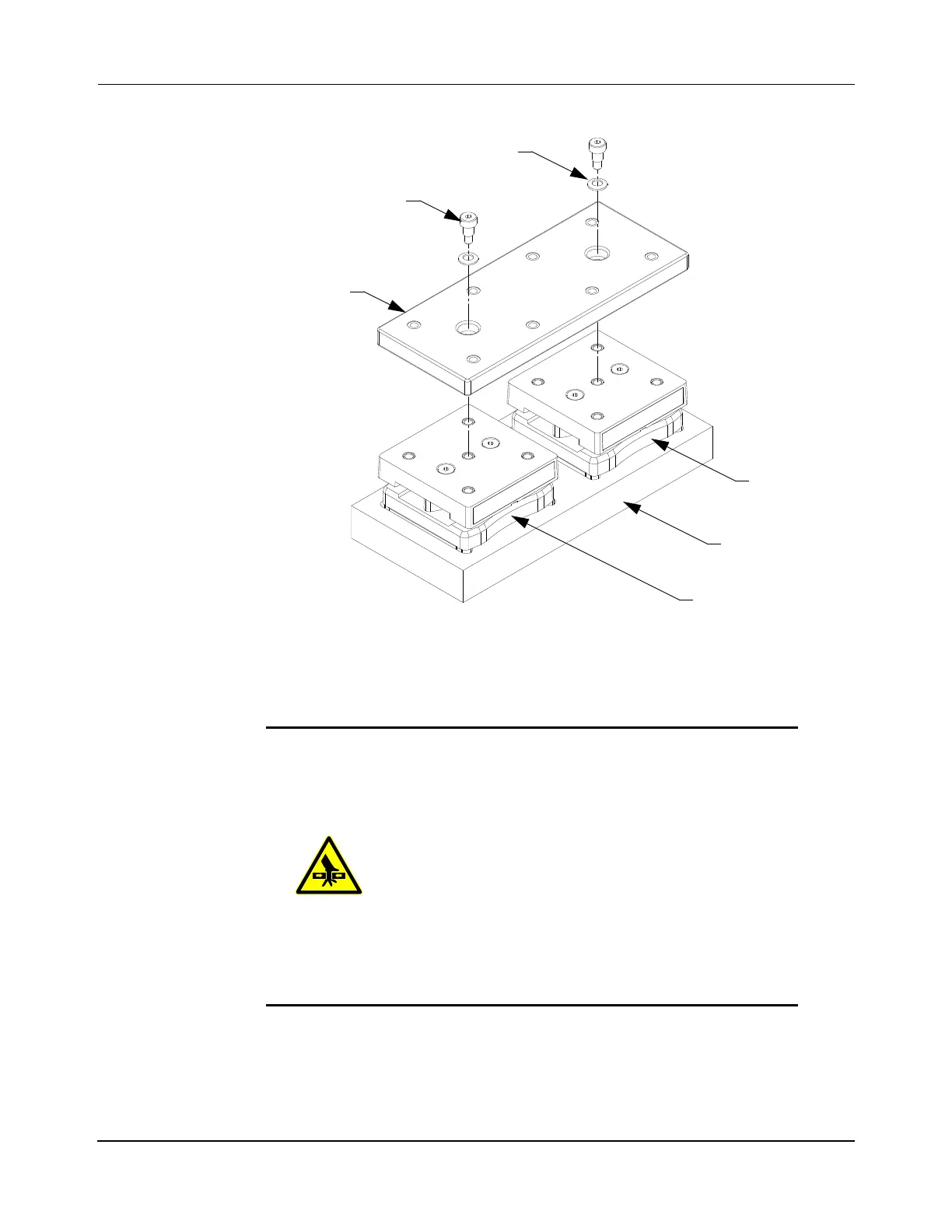

Figure 7-21: Remove Tandem Glide Puck Linkage Plate Assembly
6. With both pucks in the fixture, hold the left puck in place and lift the right puck out of
the fixture and away from the left puck.
7. Store the removed puck wrapped in bubble-wrap to help protect the puck and to mini-
mize any safety risks. Do not move one puck over, or near, the other puck.
PINCH/CRUSH HAZARD: Strong magnets in use.
To avoid injury from strong magnetic attractive
forces:
• Handle only one vehicle (puck) or magnet array at
a time.
• Do not place any body parts (for example, fingers)
between a magnet array and any ferrous material
or another magnet array.
• Vehicles (pucks) and magnet arrays not being used
must be secured individually in isolated packag-
ing.
Linkage Plate
Installation
Fixture
Puck
Puck
M4 Shoulder Screw
(2X)
Belleville Spring Washer
(2X)
To Next Page
