Rockwell Automation MagneMotion MagneMover LITE User Manual

Specifications and Site Requirements
Mechanical Specifications
MagneMover LITE User Manual 175
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
90° Right Switches

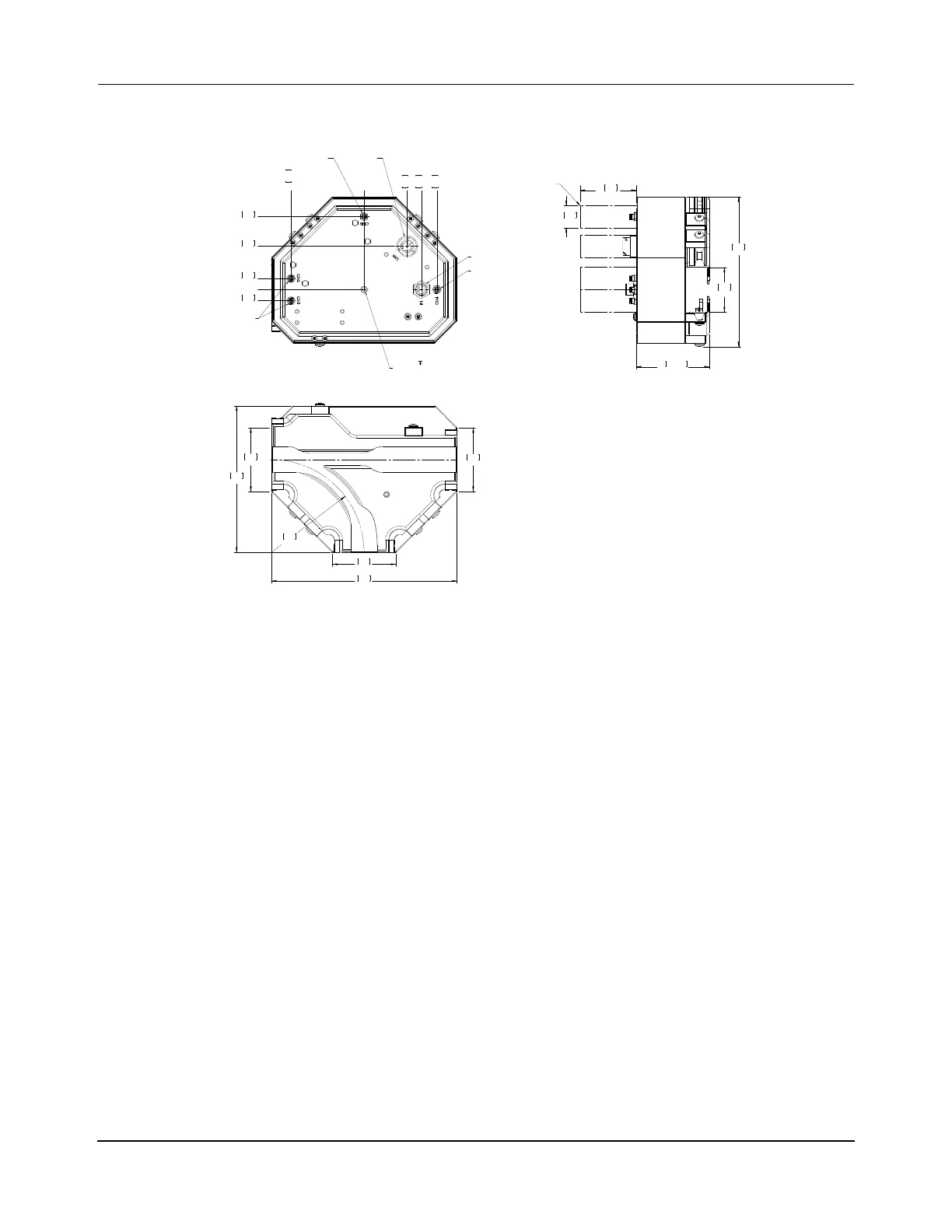

Figure 4-28: Right RS-422 Switch Mechanical Drawing
NOTE: See Motors and Switches on page 206 for the electrical specifications.
Aluminum rails shown. Dimensions are the same for stainless steel rail version.
The exclusion zones that are shown are for the MM LITE switch only. Additional
exclusion zones may be required based on the material being transported.
The noise of the switching mechanism is minimal and varies from switch to switch.
Ingress Protection Rating: Designed for IP65 (IEC 60529).
Vibration Rating: 5…500 Hz. @ 2 g.
Shock Rating: 15 g.
Exposed Materials
• 6061-T6 AL (AL rail posts), Anodized per MIL-A8625-F, Type II, Class 1, Non-dyed.
• 6061-T6 AL (AL rails), Hardcoat Anodized per MIL-A-8625-F, Type III, Class 1, Non-dyed.
• Copper alloy, Nickel plate.
• Zinc, Nickel plate.
• IGUS iglide® L280.
• Silicon.
• Dow Corning
®
Silicone 737 and 734.
• EPDM (synthetic rubber).
• A4 SS.
• 303 SS, Nickel plate (SS rails).
• 316 SS.
• 316L SS, Passivated.
• 300 Series SS, Passivated.
• 303 SS.
• 304 SS.
• 440 SS.
• 18-8 SS.
All Dimensions in Millimeters [Inches]Weight: 4.1 kg [9 lb]
700-1308-60, 700-1308-61
0
0
COMMUNICATION
CABLE CONNECTOR
COMMUNICATION
CABLE CONNECTOR
COMMUNICATION
CABLE CONNECTOR
POWER
CONNECTOR
M6 X 1.00 7mm
MOUNTING HOLE
MAX ALLOWABLE TORQUE = 5.5 Nm
ETHERNET
CONNECTOR
3.86 98.0 3.03 77.0 2.28 58.0
3.86
98.0
2.28
58.0
.59
15.0
.59
15.0
2X
3.86 98.0
2.36
60.0
3X
3.86±.03
98.1±0.75
7.92
201.1
6X
1.18
30
6X
2.95
75
6X CLEARANCE NEEDED FOR
CONNECTOR & WIRE BEND RADIUS
7.74
196.5
9.80
249.0
3.36
85.3
3.36
85.3
3.36
85.3
4.92
R125.0
