Design Guidelines
Transport System Design
114 MagneMotion
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Dual Array Vehicle
Vehicles with two magnet arrays, as shown in Figure 3-41, are typically used in precision rail
systems when the material being moved weighs up to 5 kg [11.0 lb]. See Figure 4-43, Preci-
sion Rail Dual Array Vehicle Mechanical Drawing, on page 192 for details.

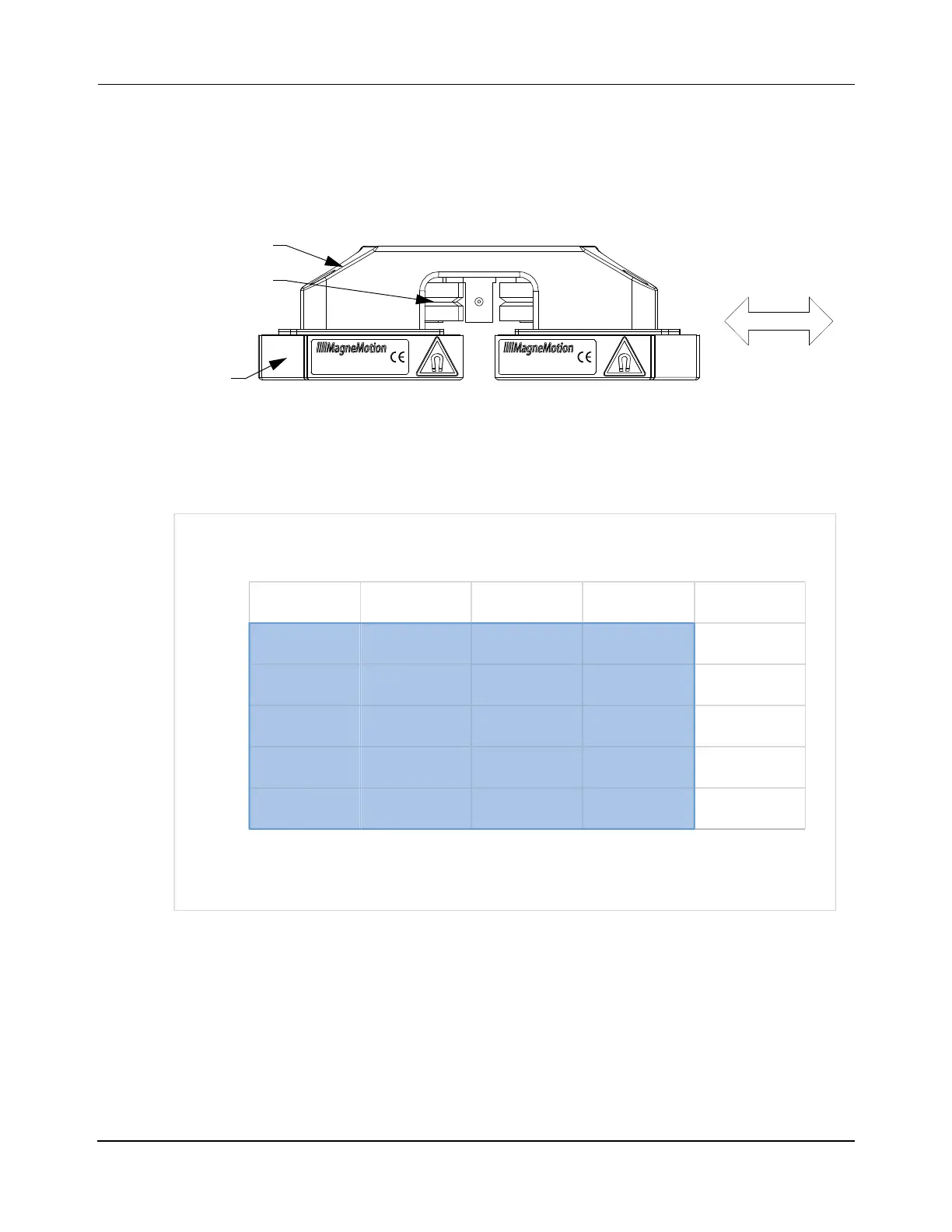

Figure 3-41: Dual Array Precision Rail Vehicle
For proper operation, the payload on the vehicle and the velocity of the vehicle must fit within
the curve that is shown in Figure 3-40.
Figure 3-42: Dual Array Precision Rail Vehicle Payload vs. Velocity
Magnet
Vehicle Body
Precision
Bearings
Array
0
1
2
3
4
5
6
00.511.522.5
Payload (kg)
Velocity (m/s)
Dual Array Precision Rail Vehicle Max Velocity
