Rockwell Automation MagneMotion MagneMover LITE User Manual

Design Guidelines
Transport System Options
MagneMover LITE User Manual 131
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Precision Rail Installation
Figure 3-57 shows the standard dimensions for the precision rail option. These dimensions
include the distance between the center of the precision rail to the center of the motor and the
nominal gap between the bottom of the magnetic array and the top of the motor.

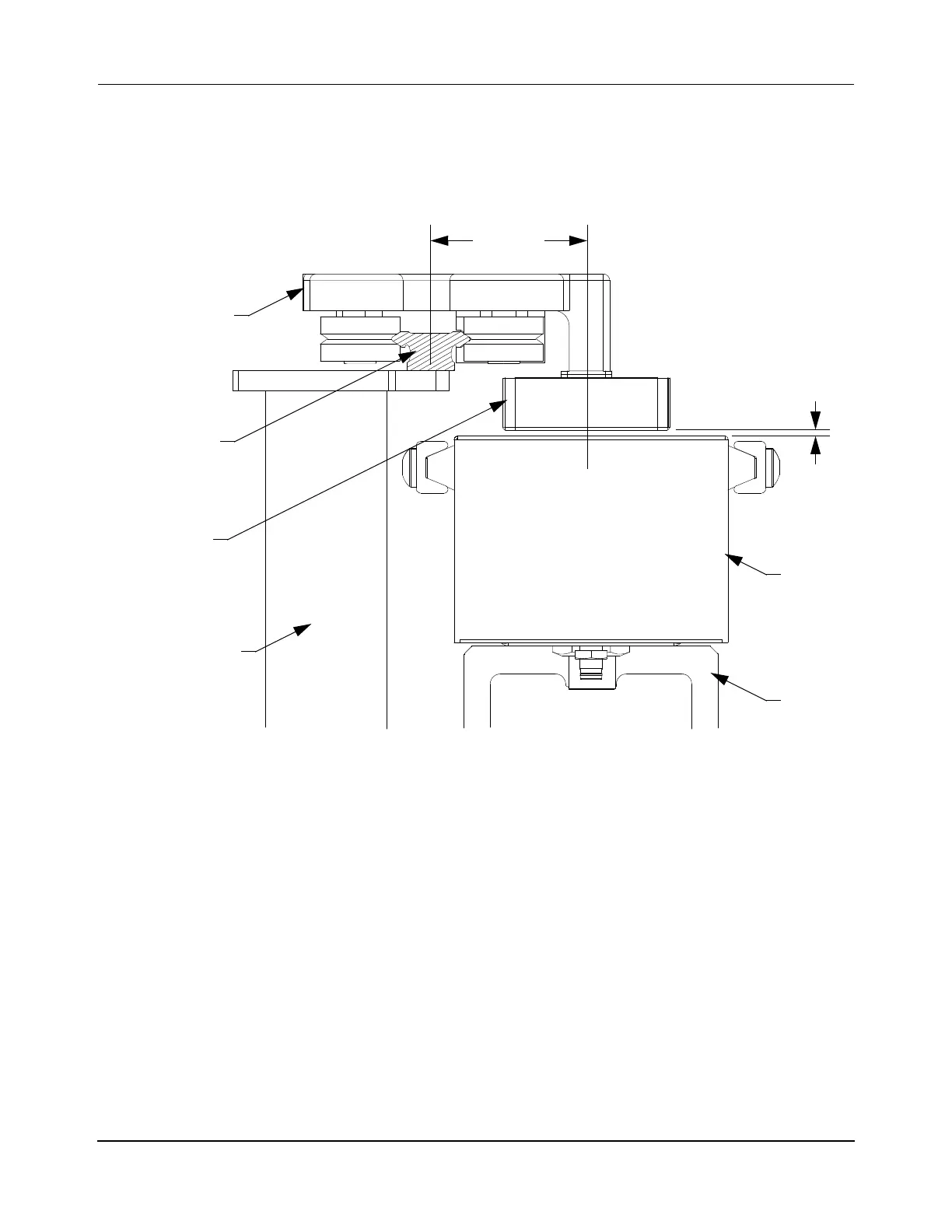

Figure 3-57: Precision Rail to Motor Reference Diagram
49.00
[1.929]
1.50
Motor
Motor
Mount
Support
Post
Assembly
Array
Single
Array
Vehicle
Rail
All Dimensions in Millimeters [Inches]
[0.059]
