Rockwell Automation MagneMotion MagneMover LITE User Manual

Specifications and Site Requirements
Mechanical Specifications
MagneMover LITE User Manual 191
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Precision Rail Single Array Vehicle

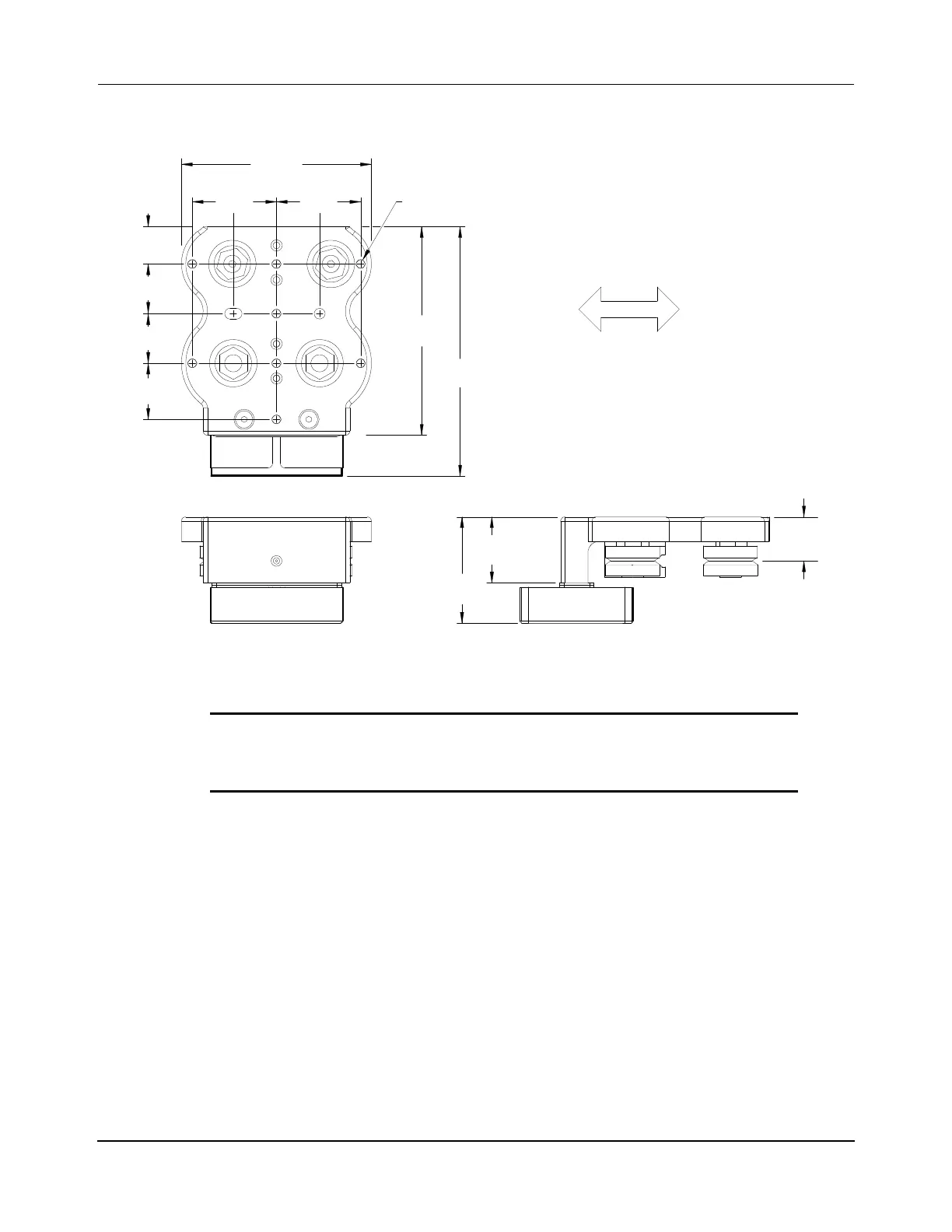

Figure 4-42: Precision Rail Single Array Vehicle Mechanical Drawing
Exposed Materials
• 6061-T6 AL, Anodized per MIL-A8625-F, Type II, Class 2, Black.
• Stainless Steel.
• 316L/316L #2 Stainless Steel.
• 440C Stainless Steel.
• UHMW Polyethylene.
• Nitrile.
•Plastic.
• Mobilgear
™
600 XP Oil.
NOTICE The bearings on the precision rail vehicles must always be
lubricated with a thin coating of oil to provide proper opera-
tion and environmental protection.
All Dimensions in Millimeters [Inches]Weight: 0.8 kg [1.6 lb]
LOCKING HELICOIL INSERTS
DIRECTION OF MOTION
C
L
[3.46]
88.0
[1.54]
39.0
[0.683]
17.35
[0.906]
23.00
[0.906]
23.00
[1.024]
26.00
[1.54]
39.0
[3.807]
96.70
[4.553]
115.64
[1.937]
49.21
[0.803]
20.40
[1.201]
30.51
700-1525-00

Rockwell Automation MagneMotion MagneMover LITE Specifications

General

Brand	Rockwell Automation
Model	MagneMotion MagneMover LITE
Category	Accessories
Language	English
