Machine mode of operation | Tool measurement
4
134
HEIDENHAIN | MANUALplus 620 | User's Manual | 12/2017
Touch probe (tool touch probe)
Refer to your machine manual.
Your machine manufacturer enables this function.

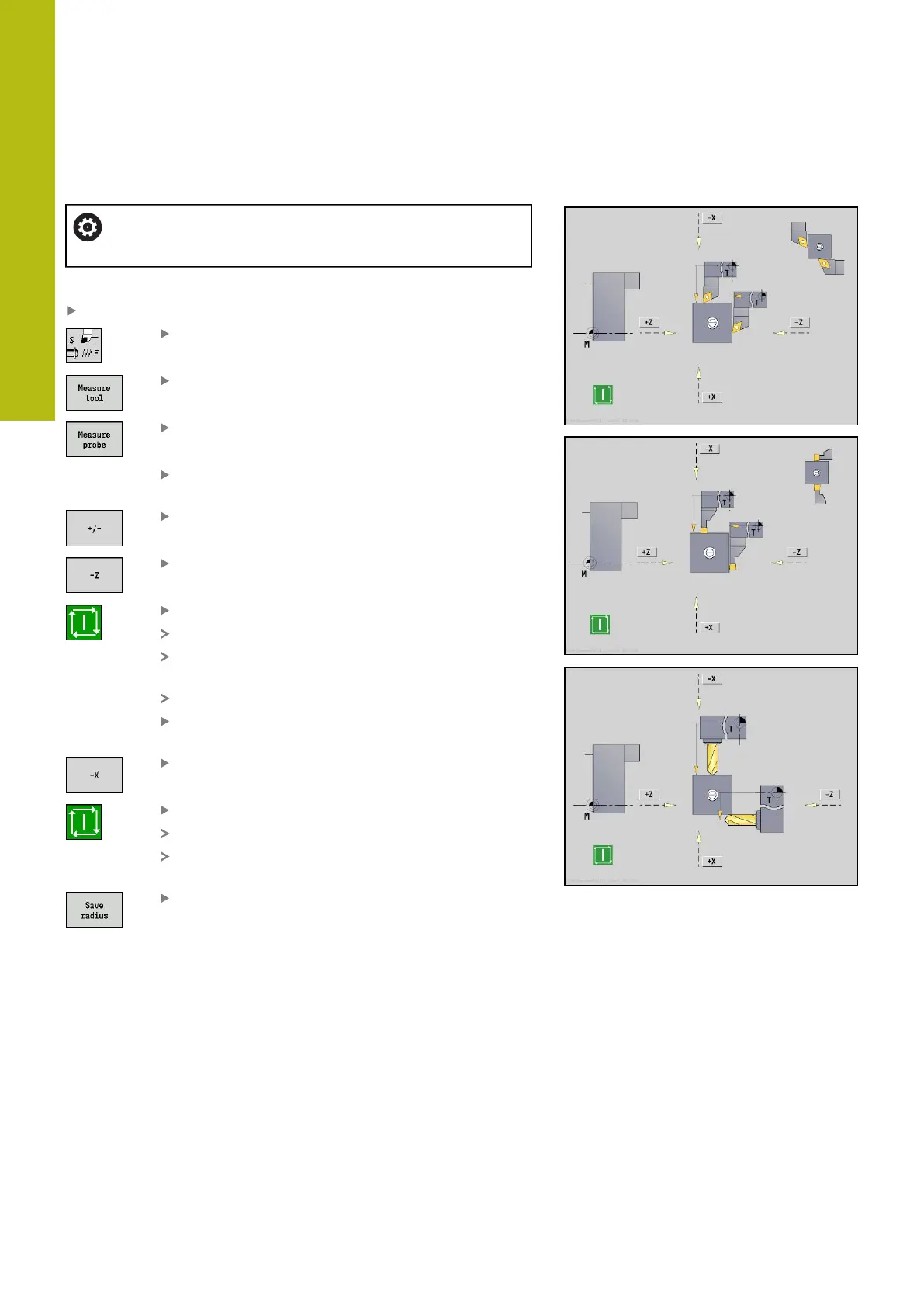

Finding the tool dimensions by using a touch probe:
In the tool table, enter the tool you want to measure
Insert the tool and enter the tool number in the
TSF dialog
Press the Measure tool soft key
Press the Measure probe soft key
Pre-position the tool for the first measuring
direction
Set the positive or negative traverse direction
Press the soft key for this direction (e.g. –Z
direction)
Press the NC start key
The tool moves in the measuring direction.
When it contacts the touch probe, the control
calculates and saves the set-up dimensions.
The tool returns to the starting point.
Pre-position the tool for the second measuring
direction
Press the soft key for this direction (e.g. –X
direction)
Press the NC start key
The tool moves in the measuring direction.
When it contacts the touch probe, the control
calculates and saves the set-up dimensions.
For turning tools, enter the cutting edge radius
and load it into the tool table
