ICP programming | Contours in the YZ plane
6
516
HEIDENHAIN | MANUALplus 620 | User's Manual | 12/2017
Figures, patterns, and holes in YZ plane (lateral
surface)

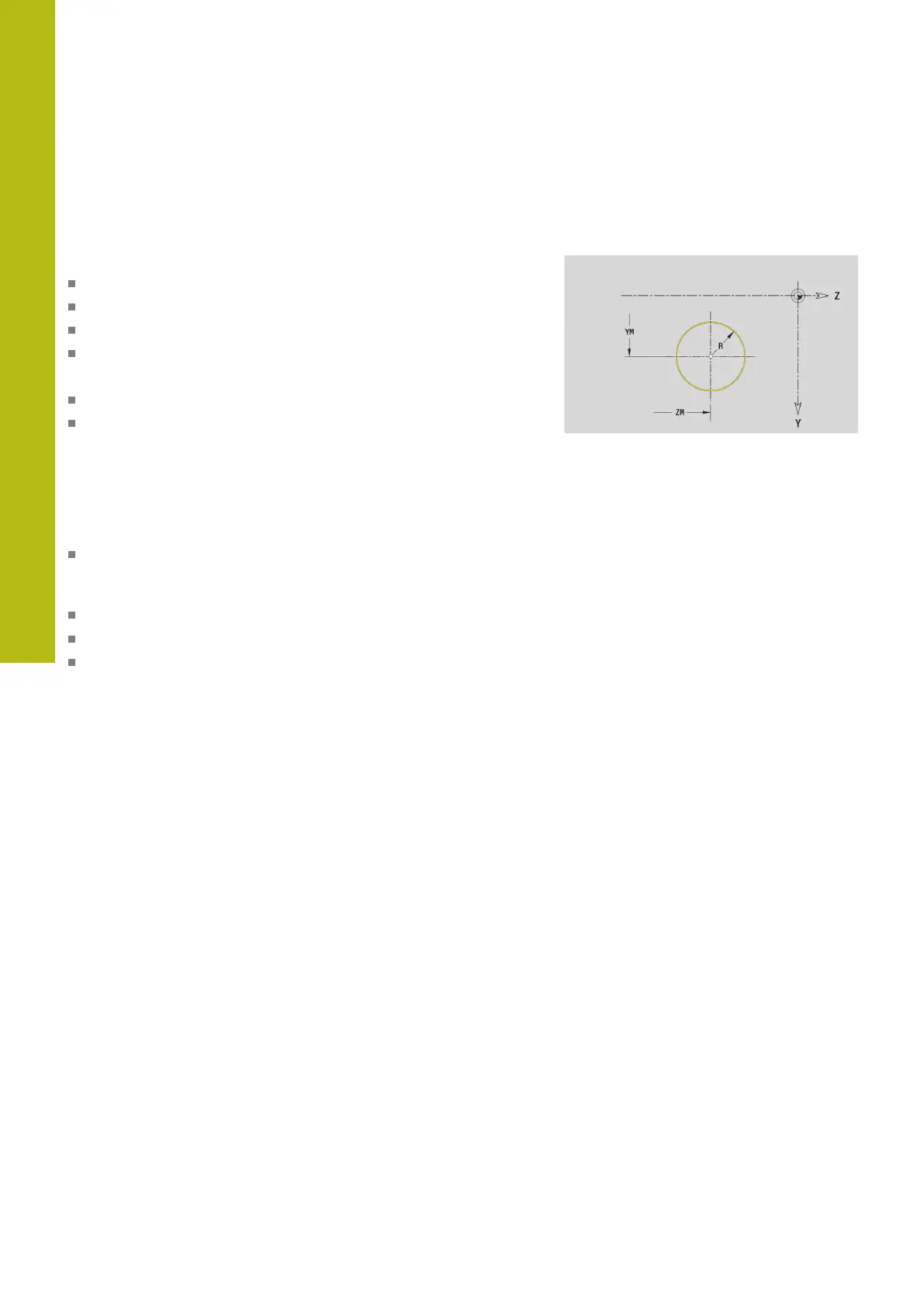

Circle in YZ plane
Reference data of YZ plane:
ID: Contour
PT: Milling depth
C: Spindle angle
XR: Reference diameter
Parameters of figure:
YM, ZM: Center
R: Radius
You can use the Select reference plane function to determine the
Reference diameter XR.
Further information: "Reference data and nested contours",
Page 472
ICP generates the following:
The SURFACE Y section code with the Reference diameter
and Spindle angle parameters. The section code is omitted for
nested contours.
A G308 with the Contour name and Milling depth parameters
A G384 with the parameters of the figure
A G309
