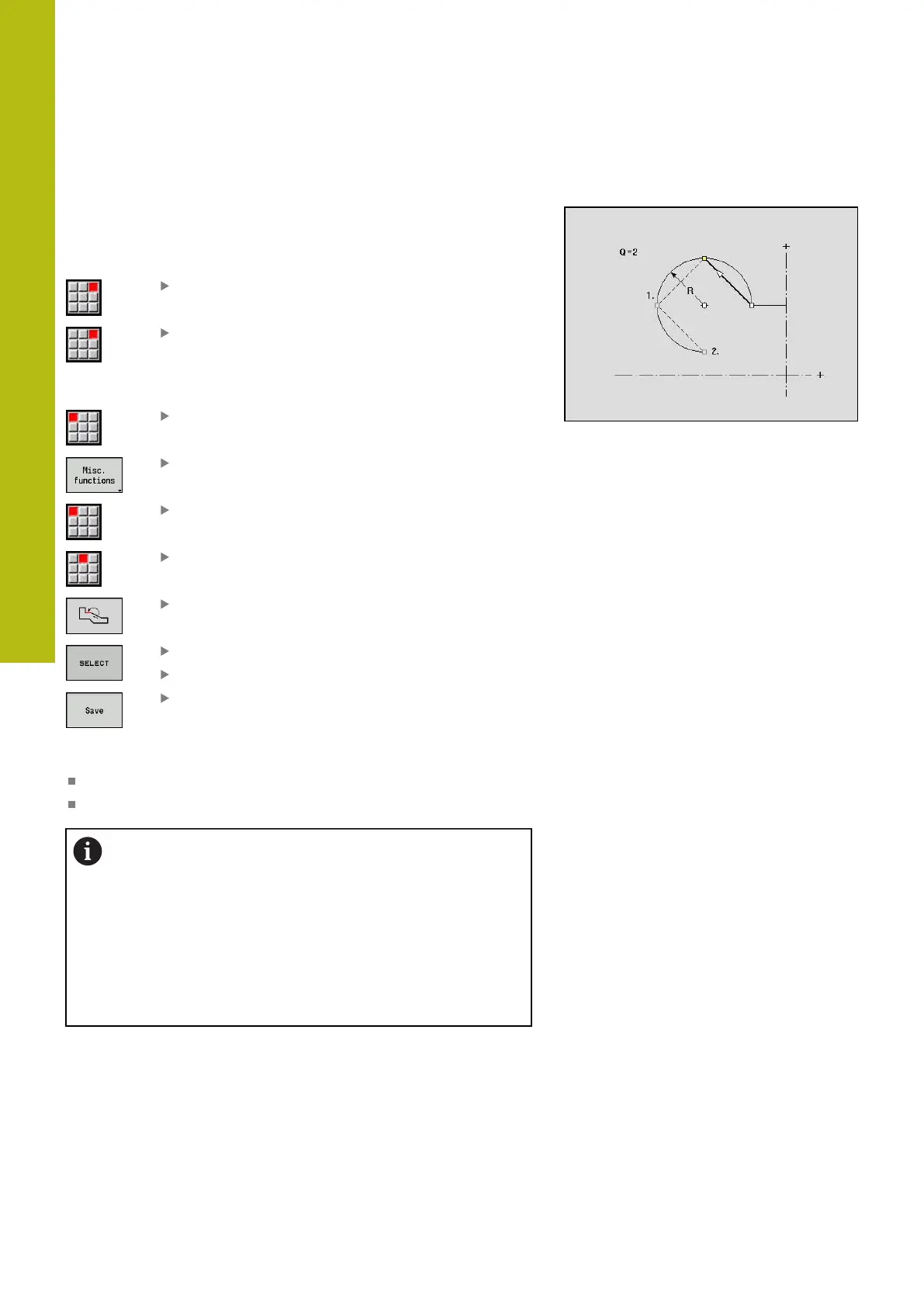

Duplicating a contour section in circular series
With this function, you can define a contour section and append it
to the existing contour in a circular series.
First, select the Finished part menu:
Select the ICP menu item
Select the Finished part menu item
Duplicating:
Select the Contour menu item
Press the Miscellaneous functions soft key
Select the Duplicate menu item in the finished
part menu
Select the Circular row menu item
Use the Next element or Previous element soft
key to select contour elements
Press the Select soft key
Enter the number of repeats and the radius
Press the Save soft key
Parameters
Q: Quantity – The contour section is duplicated Q times
R: Radius
The control uses the entered radius for creating a circle
both around the starting point and the end point of the
contour section. The points of intersection of the circles
are the two possible centers of rotation.
The angle of rotation is calculated from the distance
between the starting point and the end point of the
contour section.
Use the next solution or previous solution soft key to
select one of the mathematically possible solutions.
