ICP programming | Contours in the XY plane
6
496
HEIDENHAIN | MANUALplus 620 | User's Manual | 12/2017

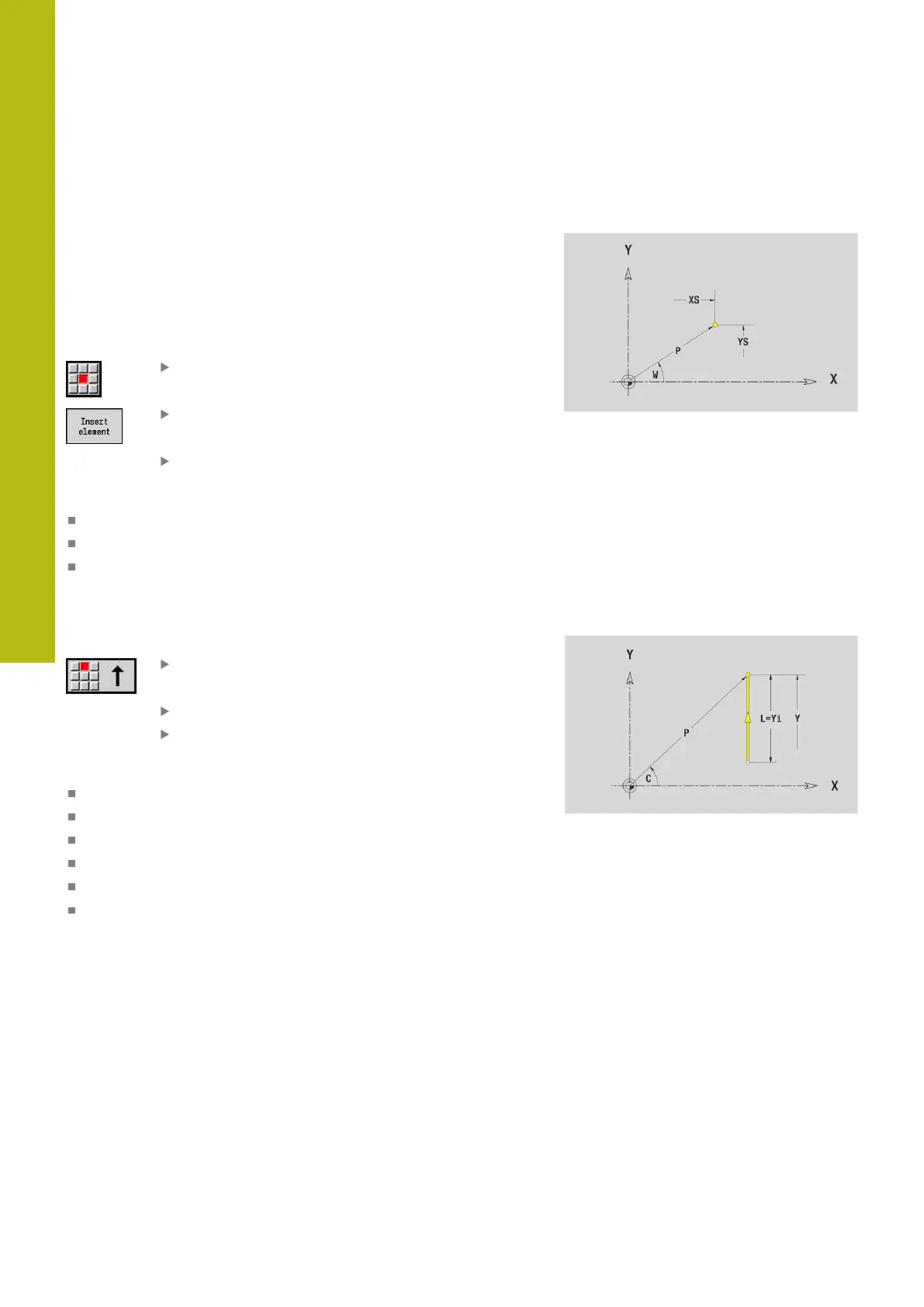

Basic elements of XY plane
Starting point of contour in XY plane
Enter the coordinates for the Starting point and Destinat. point in
the first contour element of the contour. Entering the starting point
is only possible in the first contour element. In subsequent contour
elements, the Starting point results from the previous contour
element in each case.
Defining the Starting point:
Press the Contour menu item
Alternative: Press the Insert element soft key
Define the Starting point
Parameters for defining the starting point:
XS, YS: Starting point of contour
WS: Starting point of contour (polar angle)
PS: Starting point of contour (polar; radius)
ICP generates a G170 in smart.Turn mode of operation.
Vertical lines in XY plane
Programming a vertical line:
Select the line direction
Enter the line dimensions
Define the transition to the next contour element
Parameters:
Y: Target point
Yi: Target point (incremental)
W: Target point (polar angle)
P: Target point (in polar coordinates)
L: Line length
F: Further information: "Machining attributes", Page 418
ICP generates a G171 in smart.Turn mode of operation.
