ICP programming | Editing ICP contours
6
HEIDENHAIN | MANUALplus 620 | User's Manual | 12/2017
439

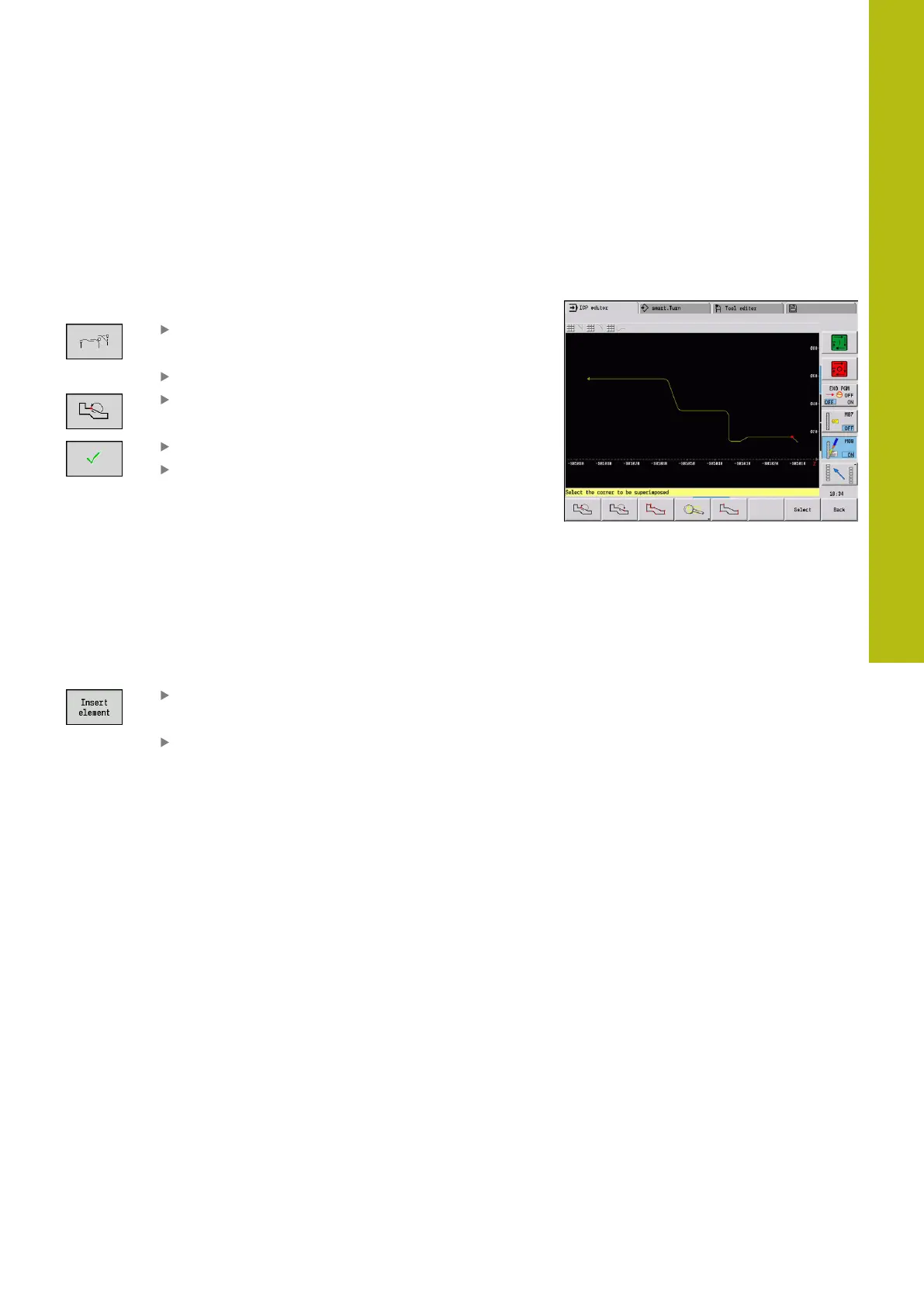

6.5 Editing ICP contours
The control offers the following possibilities for extending or
changing a programmed contour.
Superimposing form elements
Superimposing form elements:
Press the Form elements soft key
Select the desired form element
Select the corner
Confirm the corner for the form element
Enter the data for the form element
Adding contour elements
You can add to an ICP contour by entering additional contour
elements that are appended to the existing contour. A small
square indicates the end of the contour and an arrow indicates the
direction.
Adding contour elements:
Press the Insert element soft key
Append additional contour elements to the
existing contour
