HEIDENHAIN | MANUALplus 620 | User's Manual | 12/2017
6.6
Zoom functions in ICP editor submode
The zoom functions make it possible to change the visible detail by
using soft keys, the arrow keys, and the PgUp and PgDn keys. The
zoom function can be called in all ICP windows.
The control sizes the detail depending on the programmed contour.
With the zoom function you can select another detail.
Changing the detail
Modifying the detail by using keys:
The displayed detail can be modified with the arrow keys, the
PgUp and the PgDn keys without opening the zoom menu.
Keys for modifying the displayed detail
The arrow keys move the workpiece in the
indicated direction
Magnify the displayed frame (zoom –)
Reduce the displayed frame (zoom +)
Modifying the detail with the zoom menu:

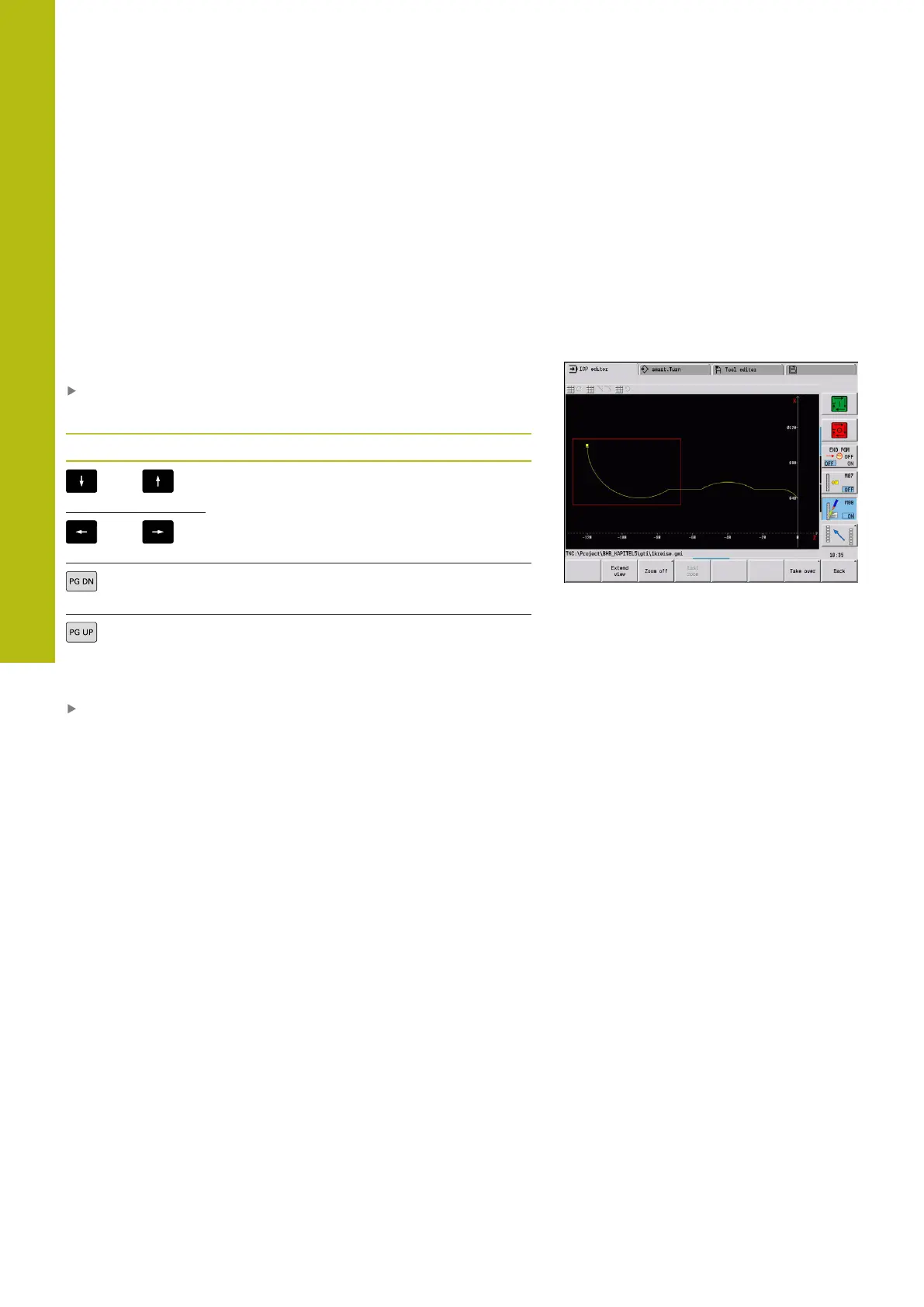

If the zoom menu is selected, a red frame appears in the
contour window. This red frame indicates the zoom area, which
you can select using the Apply soft key or the ENT key. Use the
following keys to change the frame size and position.
