Contour direction (cycle programming)

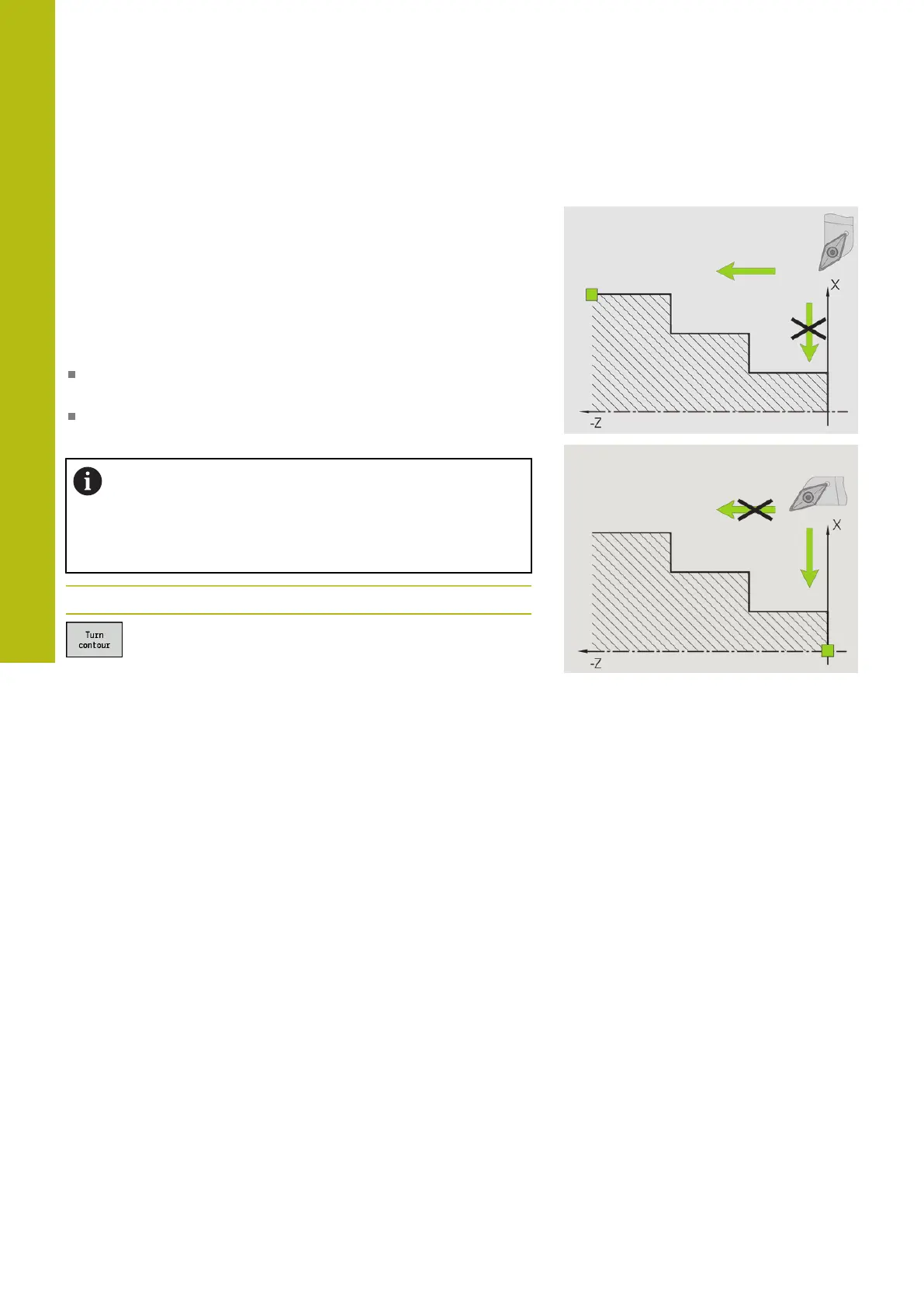

The cutting direction during cycle programming depends on the
direction of the contour. If the contour is described in the –Z
direction, a tool with the orientation 1 must be used for longitudinal
machining. The cycle used determines whether machining is
transverse or longitudinal.
Further information: "General tool parameters", Page 576
If the contour is described in the –X direction, a transverse
machining cycle or a tool with the orientation 3 must be used.
ICP cut, longitudinal/transverse (roughing): The control
machines the workpiece in the contour direction.
ICP finishing, longitudinal/transverse : The control finishes in
the contour direction.
An ICP contour which was defined for a roughing
operation with the ICP cut longitudinal cycle cannot be
used for machining with the ICP cut transverse cycle.
Reverse the contour direction with the Turn contour
soft key.
Soft keys in the ICP editor submode – Main menu
Invert the definition direction of the contour
To Next Page
