Tool and technology database | Tool data
8
580
HEIDENHAIN | MANUALplus 620 | User's Manual | 12/2017

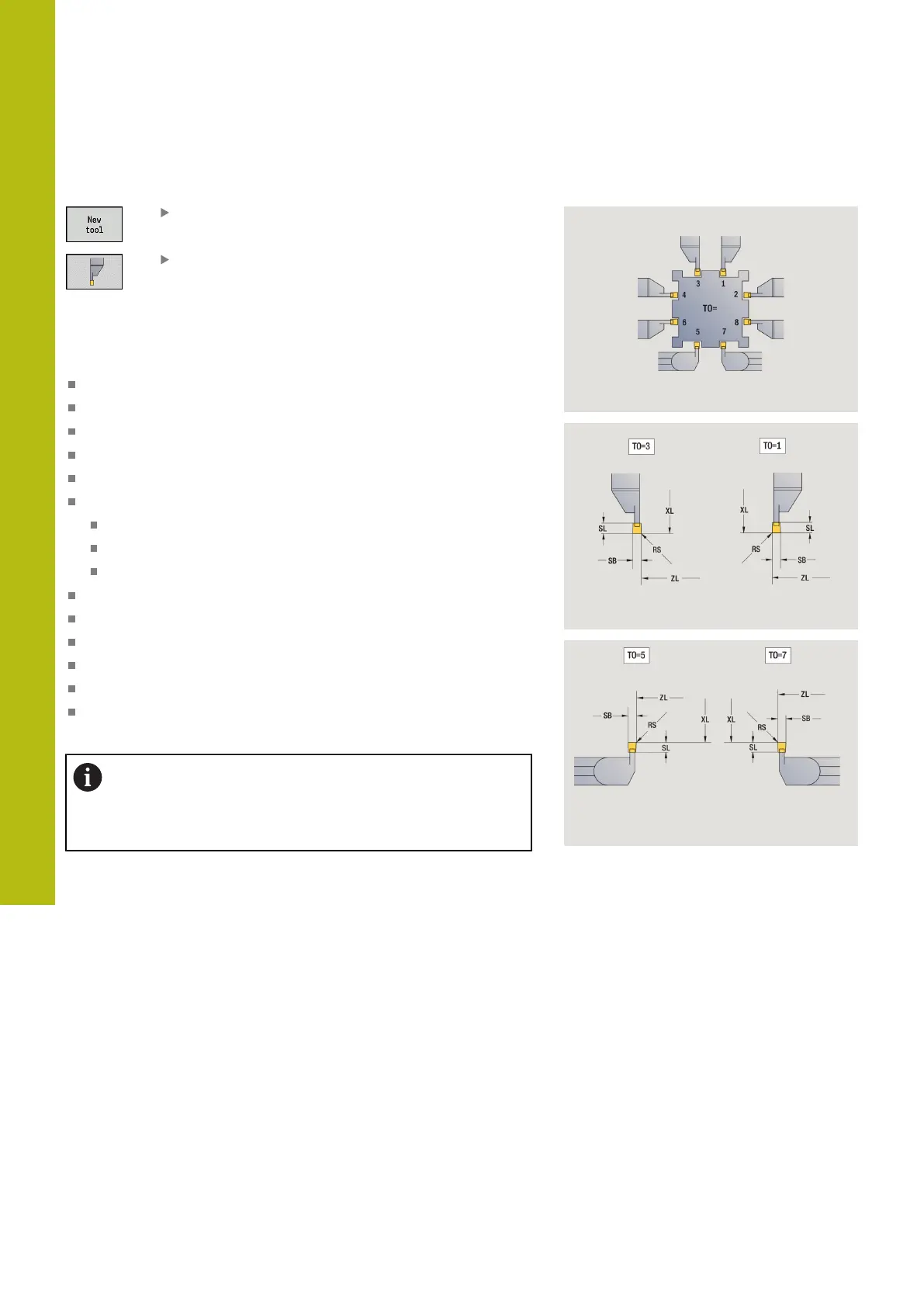

Recessing tools
Press the New tool soft key
Press the Recessing tool soft key
Recessing tools are used for recessing, parting, recess turning and
finishing (only in the smart.Turn mode of operation).
Special parameters for recessing tools:
RS: Cutting edge radius
SW: Point angle
SB: Cutting width
SL: Cutting length
DS: Special corr.
SUT: Tool type (required for AWG submode in TURN PLUS)
0: Recessing
1: Parting
2: Rec. turn.
DN: Tool width
SD: Shank diameter
ET: Max. plunging depth
NL: Usable length
RW: Angular offset (only for B axis)
Further tool parameters:
Further information: "General tool parameters", Page 576
The wear compensation DX, DZ compensates for wear
on the two sides of the tool tip that lie next to the tool
reference point. The Special corr. DS compensates for
wear on the third side of the tool tip.
