Teach-in | Drilling and milling patterns
5
HEIDENHAIN | MANUALplus 620 | User's Manual | 12/2017
401

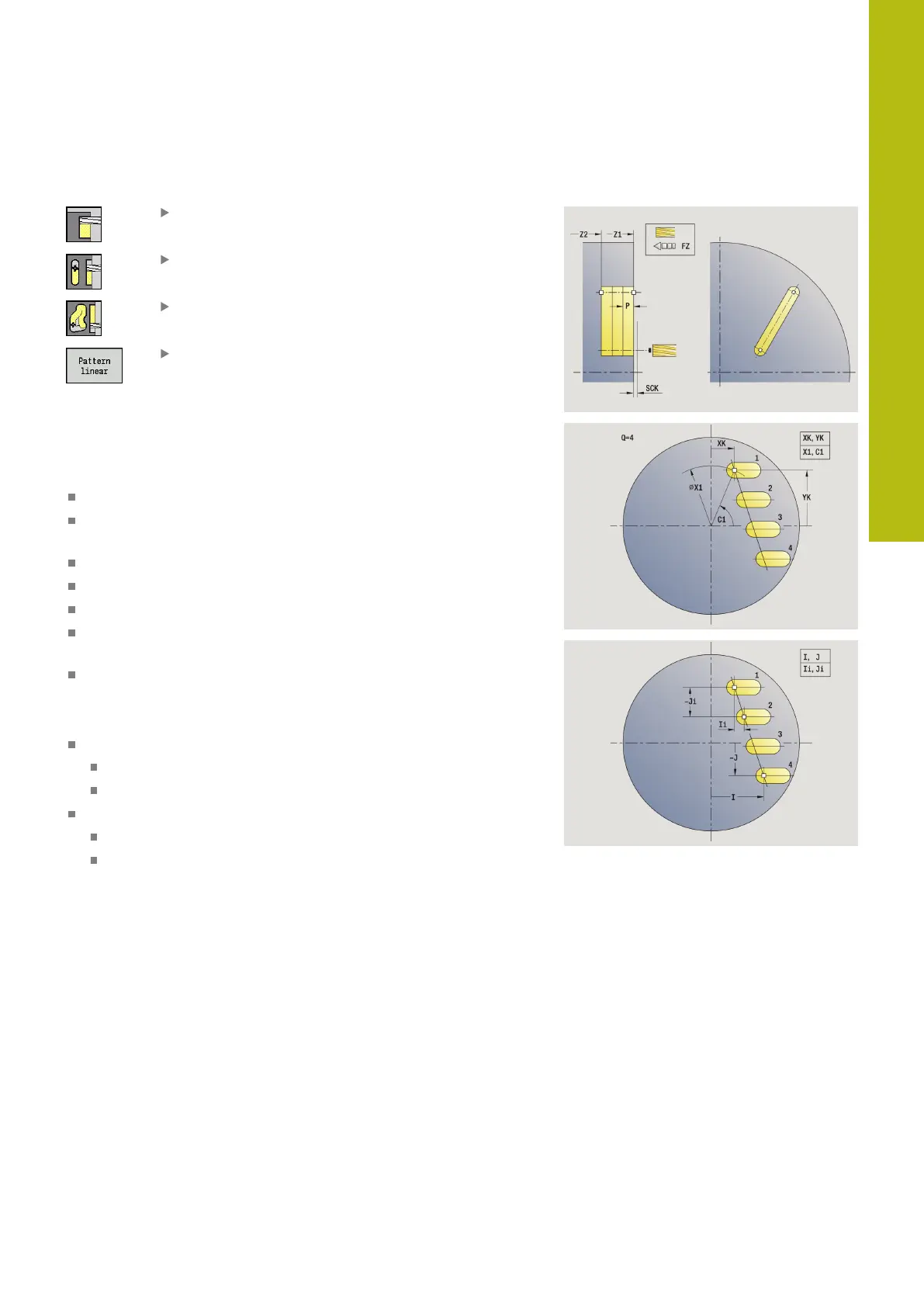

Linear milling pattern, axial
Select Milling
Select Axial slot
Alternative: Select Axial contour ICP
Press the Pattern linear soft key
Press Pattern linear to machine milling patterns in which the
individual features are arranged at a regular spacing in a straight line
on the face.
Cycle parameters:
X, Z: Start point
C: Spindle angle – C-axis position (default: current spindle
angle)
Q: Number of slots
X1, C1: Polar starting point – starting point of the pattern
XK, YK: Cartesian starting pnt
I, J: End point (XK) and (YK) – end point of the pattern
(Cartesian)
Ii, Ji: Distance (XKi) and (YKi) – incremental pattern spacing
The parameters of the milling operation are also requested.
Use the following parameter combinations to define the:
Starting point of pattern:
X1, C1
XK, YK
Pattern positions:
Ii, Ji and Q
I, J and Q
