4.3 Machine data
Input of machine data

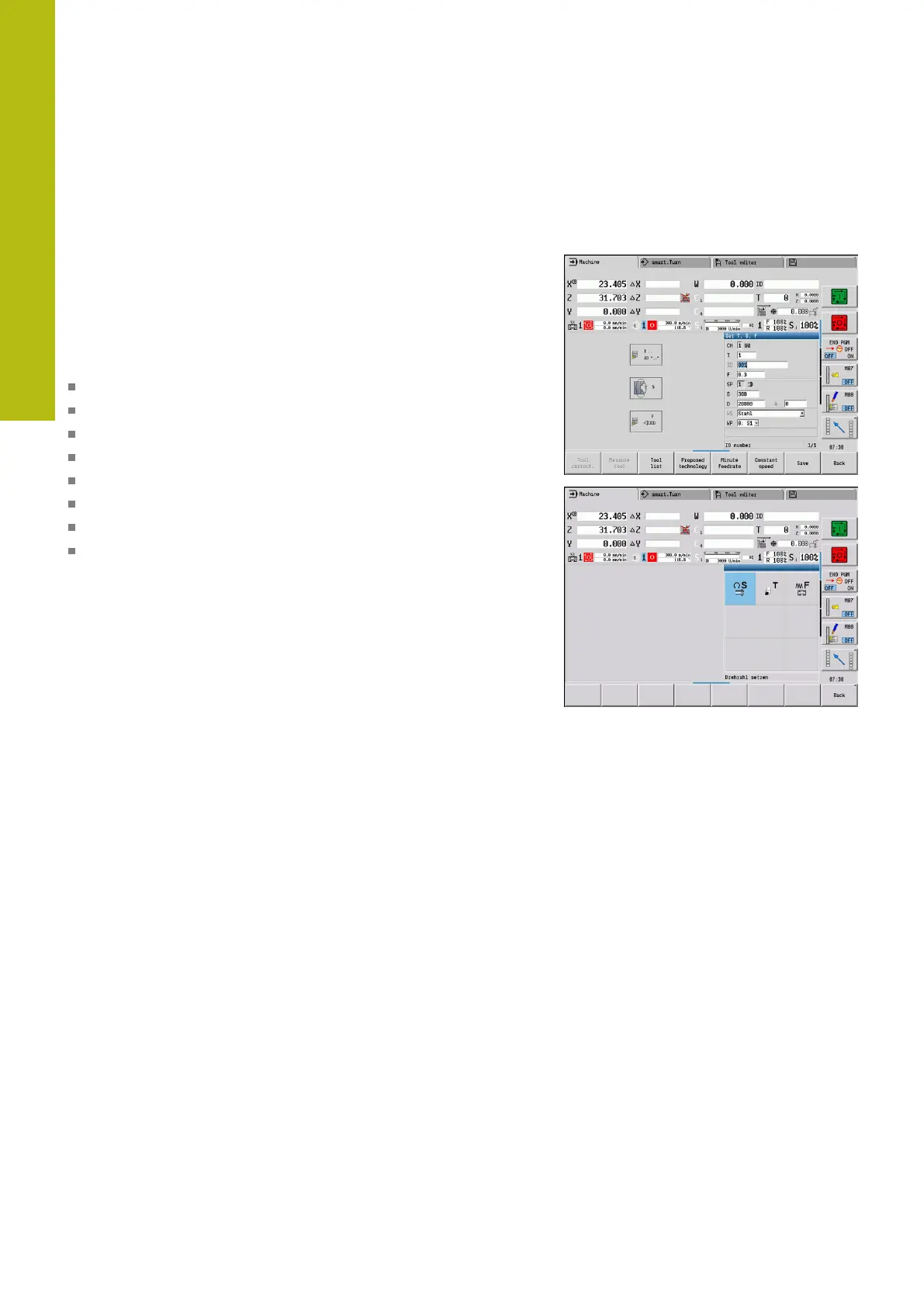

In Machine mode of operation, you enter the information for
tool, spindle speed and feed rate/cutting speed in the TSF menu
(Set T, S, F input window).
In the TSF menu you also define the maximum speed, the stopping
angle and the workpiece material.
Cycle parameters:
T: Tool number or Tool pocket
ID: ID no.
F: Feed per revolution or Minute feed
SP: Spindle
S: Cutting speed or Shaft speed constant
D: Maximum speed
A: Stopping angle
WS: Material
You can save the cutting data (cutting speed, feed rate) in the
technology database as a function of the workpiece material,
the tool's cutting material and the type of operation. With the
Proposed technology soft key the data are taken into the dialog.
If the Minute feed soft key is activated, the F value is evaluated in
[mm/min].
If the Constant spindle speed soft key is activated, the S value is
evaluated in [rev/min].
In Teach-in programs the tool information and technology data are
included in the cycle parameters, and in smart.Turn programs they
are part of the NC program.
