ICP programming | Front face contours in smart.Turn mode of operation
6
HEIDENHAIN | MANUALplus 620 | User's Manual | 12/2017
475
6.12
Front face contours in smart.Turn mode
of operation
In smart.Turn mode of operation, ICP provides the following
contours for machining with the C axis:
Complex contours defined with individual contour elements
Figures
Holes
Pattern of figures or holes
Reference data for complex face contours
The reference data is followed by the contour definition with
individual contour elements:
Further information: "Contour elements – front face", Page 459

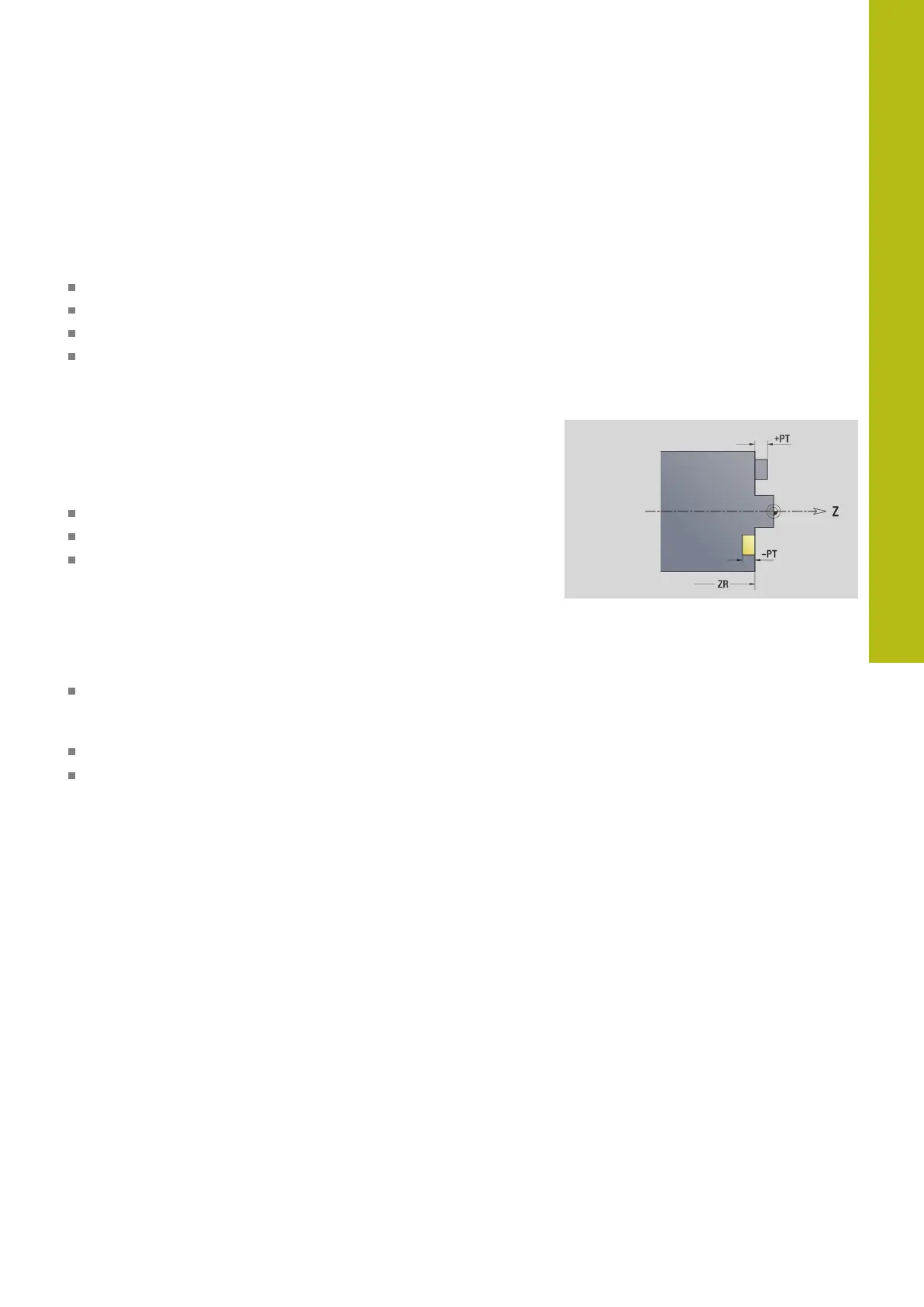

Reference data of face:
ID: Contour
PT: Milling depth
ZR: Reference dimension
You can use the Select reference plane function to determine the
Reference dimension ZR.
Further information: "Reference data and nested contours",
Page 472
ICP generates the following:
The FRONT section code with the Reference dimension
parameter. In nested contours, ICP generates only one section
code
A G308 with the Contour name and Milling depth parameters
A G309 at the end of the contour description
