ICP programming | Programming ICP contours
6
432
HEIDENHAIN | MANUALplus 620 | User's Manual | 12/2017

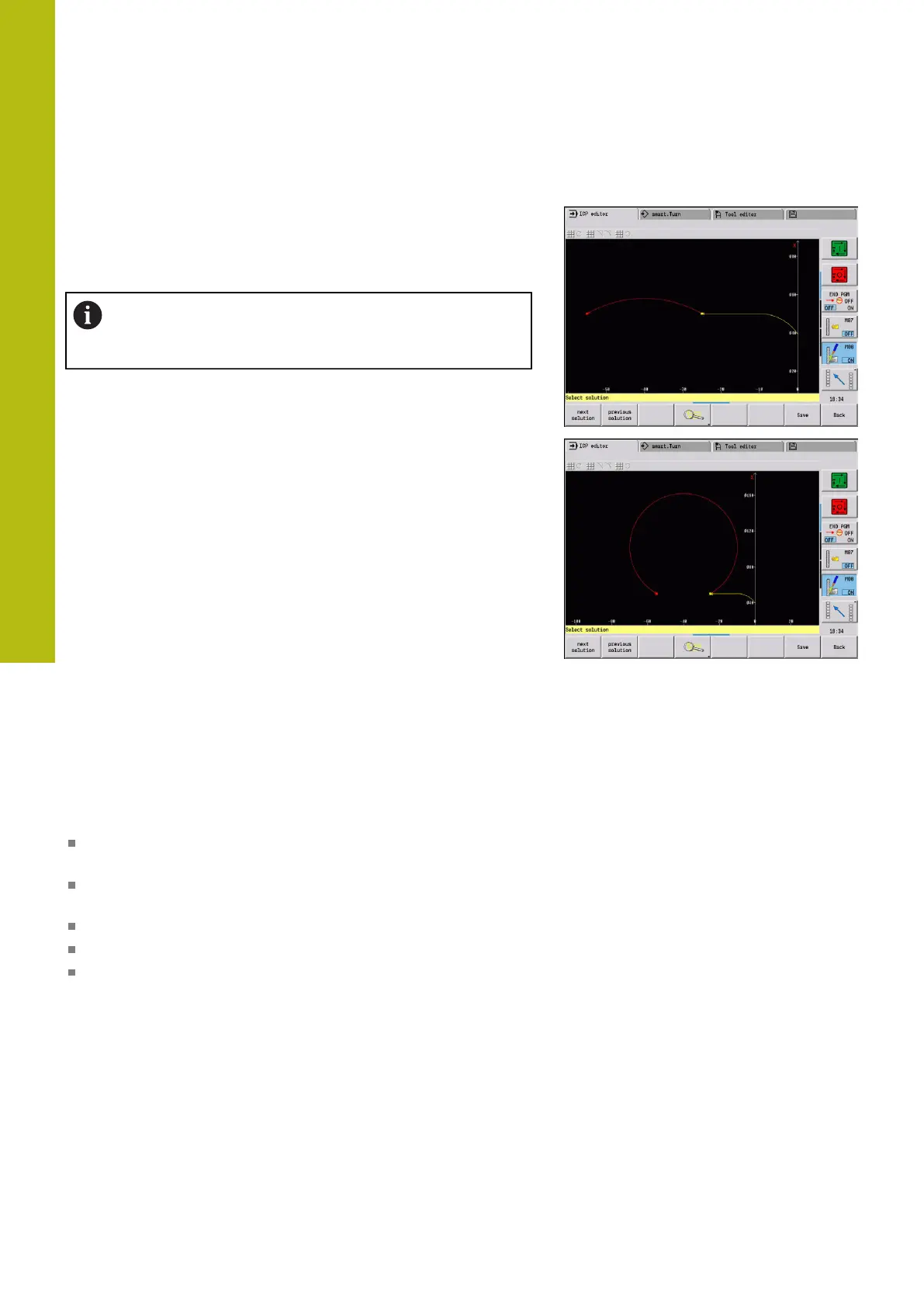

Selection of solutions
If the data entered for unresolved contour elements permit several
possible solutions, you can check all mathematically possible
solutions with the next solution and previous solution soft keys.
You then confirm the correct solution by soft key.
If the contour still contains unresolved contour elements
when you exit the editing mode, the control will ask you
whether to discard these elements.
Colors in contour graphics
Resolved and unresolved contour elements as well as selected
contour elements, selected contour corners, and remaining
contours are depicted in different colors. (The selection of contour
elements, contour corners and remaining contours is important
when you are editing ICP contours.)
Colors:
White: Workpiece blank contour, auxiliary workpiece blank
contour
Yellow: Finished part contours (turned contours, contour for C
and Y axis machining)
Blue: Auxiliary contours
Gray: For unresolved or incorrect but displayable elements
Red: Selected solution, selected element or selected corner
