Teach-in | Drilling and milling patterns
5
404
HEIDENHAIN | MANUALplus 620 | User's Manual | 12/2017

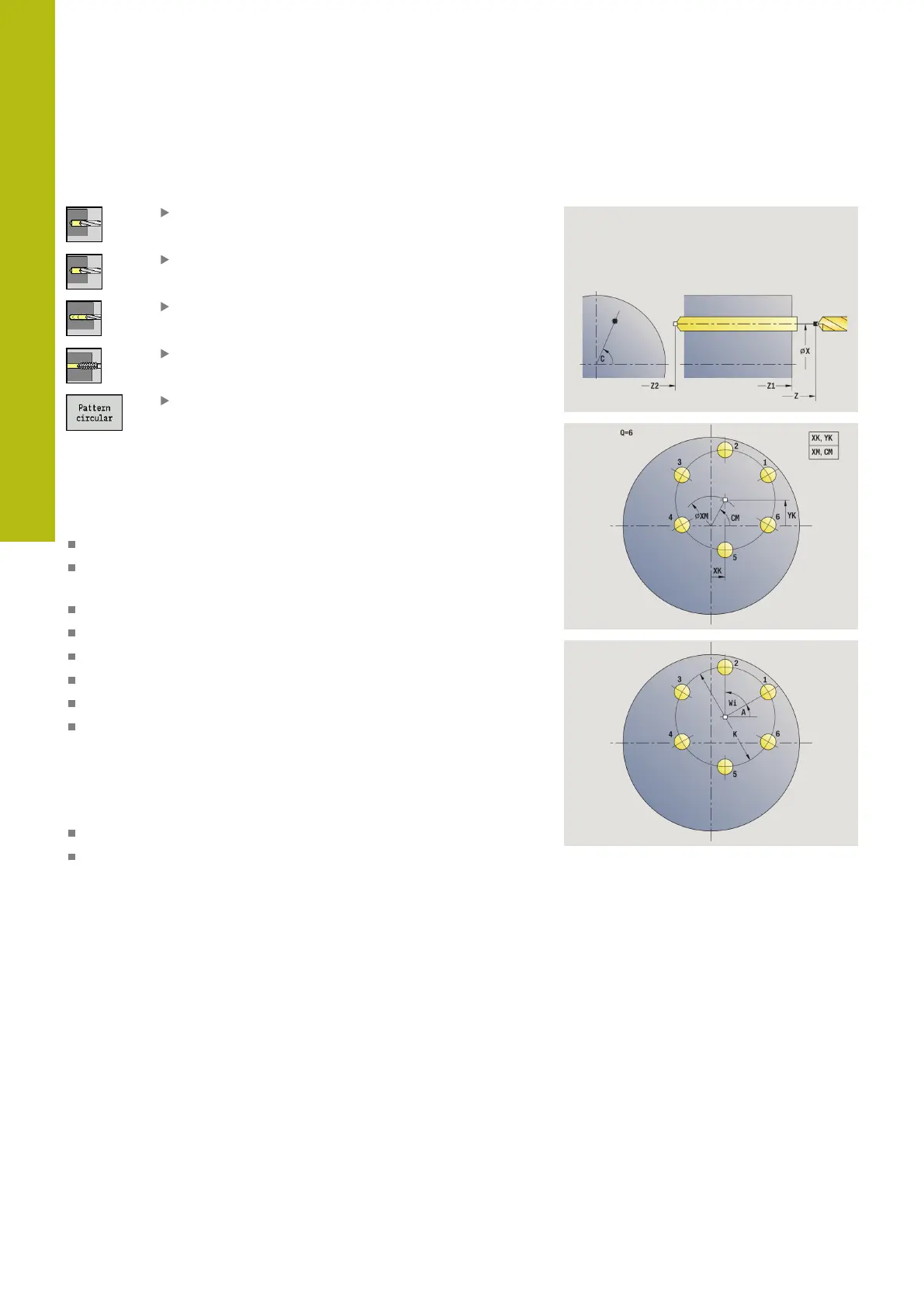

Circular drilling pattern, axial
Select Drilling
Select Drilling axial
Alternative: Select Deep drilling axial
Alternative: Select Tapping axial
Press the Pattern circular soft key
Press Pattern circular during drilling cycles to machine drilling
patterns in which the individual features are arranged at a regular
spacing in a circle or circular arc on the face.
Cycle parameters:
X, Z: Start point
C: Spindle angle – C-axis position (default: current spindle
angle)
Q: Number of holes
XM, CM: Polar center point
XK, YK: Cartesian center point
K: Pattern diameter
A: Angle of 1st hole (default: 0°)
Wi: Angle increment – Pattern spacing (default: holes are
arranged at a regular spacing in a circle)
The parameters of the hole are also requested.
Use the following parameter combinations to define the center of
the pattern:
XM, CM
XK, YK
