Axial figure
Select Milling
Select Axial figure

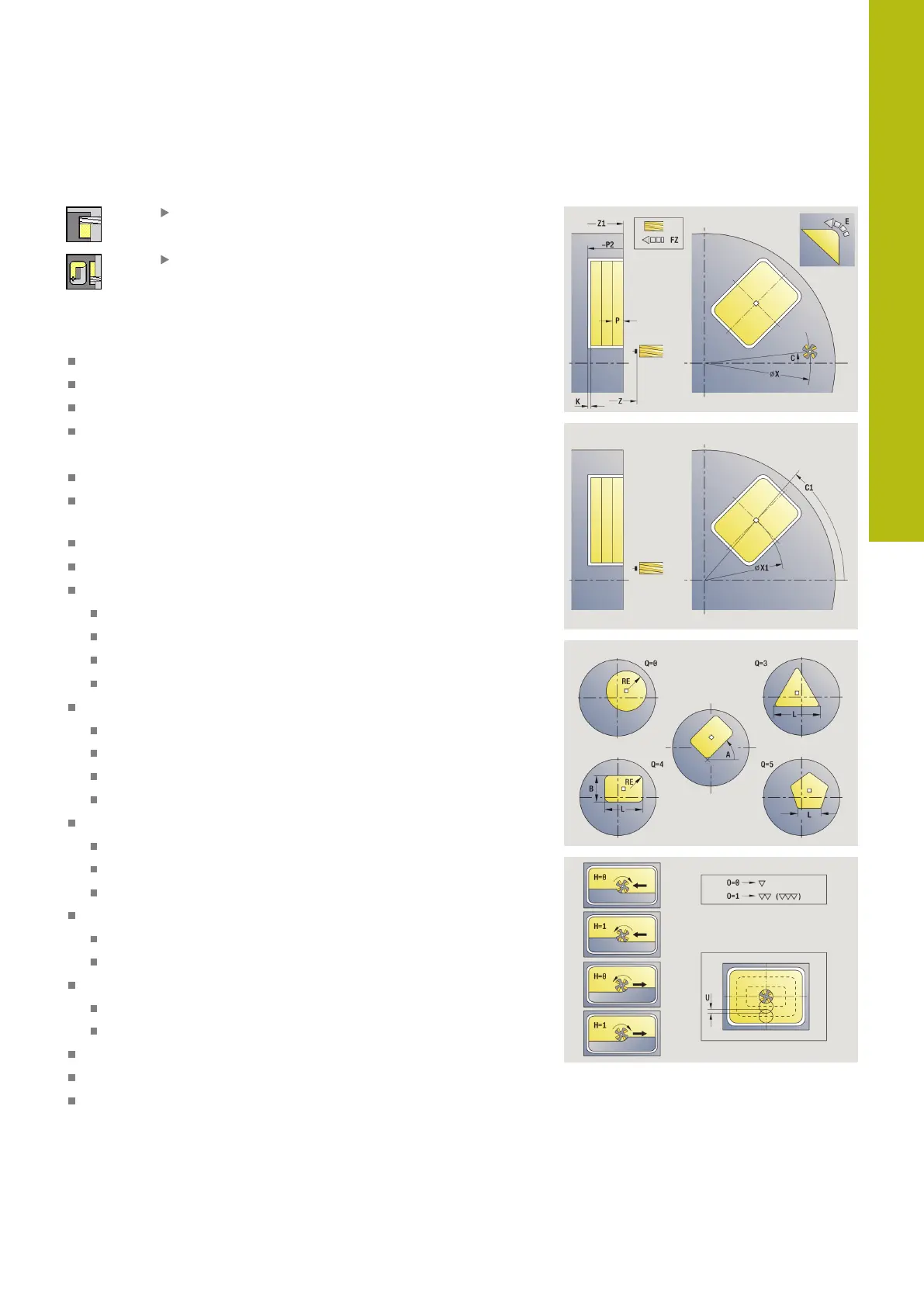

Depending on the parameters, the cycle mills one of the following
contours or roughs/finishes a pocket on the face:
Rectangle (Q = 4, L <> B)
Square (Q = 4, L = B)
Circle (Q = 0, RE > 0, L and B: no input)
Triangle or polygon (Q = 3 or Q > 4, L <> 0)
Cycle parameters:
X, Z: Start point
C: Spindle angle – C-axis position (default: current spindle
angle)
X1: Dia. of figure center
C1: Angle of figure center (default: Spindle angle C)
Q: Number edges (default: 0)
Q = 0: Circle
Q = 4: Rectangle, square
Q = 3: Triangle
Q > 4: Polygon
L: Edge length
Rectangle: Rectangle length
Square, polygon: Edge length
Polygon: L < 0 inscribed circle diameter
Circle: No input
B: Width of rectangle
Rectangle: Rectangle width
Square: L = B
Polygon, circle: No input
RE: Rounding radius (default: 0)
Rectangle, square, polygon: Rounding radius
Circle: Circle radius
A: Angle to X axis (default: 0°)
Rectangle, square, polygon: Position of figure
Circle: No input
Z1: Millg. top edge (default: Starting point Z)
P2: Milling depth
T: Tool number – turret pocket number
