ICP programming | Contour elements on lateral surface
6
470
HEIDENHAIN | MANUALplus 620 | User's Manual | 12/2017
Form elements of lateral surface

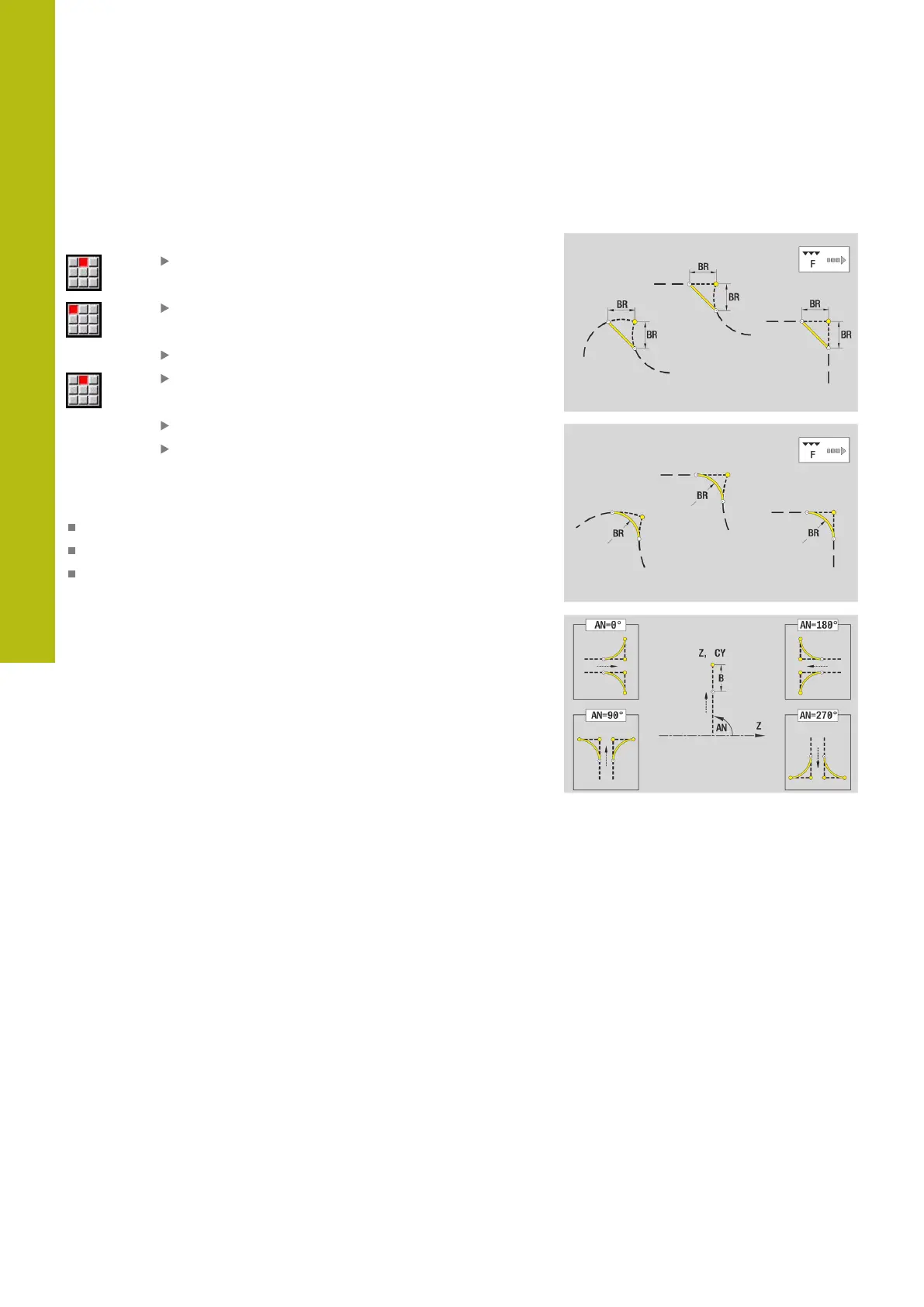

Chamfer or rounding on lateral surface
Programming a chamfer or rounding radius:
Select the form elements
Select a chamfer
Enter the Cham. width BR
Alternative: Select a rounding radius
Enter the Rounding radius BR
Enter the chamfer or rounding as first contour
element: Element pos AN
Parameters:
BR: Cham. width or Rounding radius
AN: Element pos
F: Further information: "Machining attributes", Page 418
Chamfers or roundings are defined at contour corners. A contour
corner is the point of intersection between the approaching
contour element and the departing contour element. A chamfer or
rounding cannot be calculated until the departing contour element
is known.
ICP integrates the chamfer or rounding in the G111, G112 or G113
basic element in smart.Turn mode of operation.
Contour begins with a chamfer or a rounding: Enter the position
of the intended corner as starting point. Then, in the form element
menu, select chamfer or rounding. Since the approaching contour
element is missing, you enter the Element pos AN to clearly
define the position of the chamfer or rounding.
ICP converts a chamfer or rounding at the start of the contour to a
linear or circular element.
