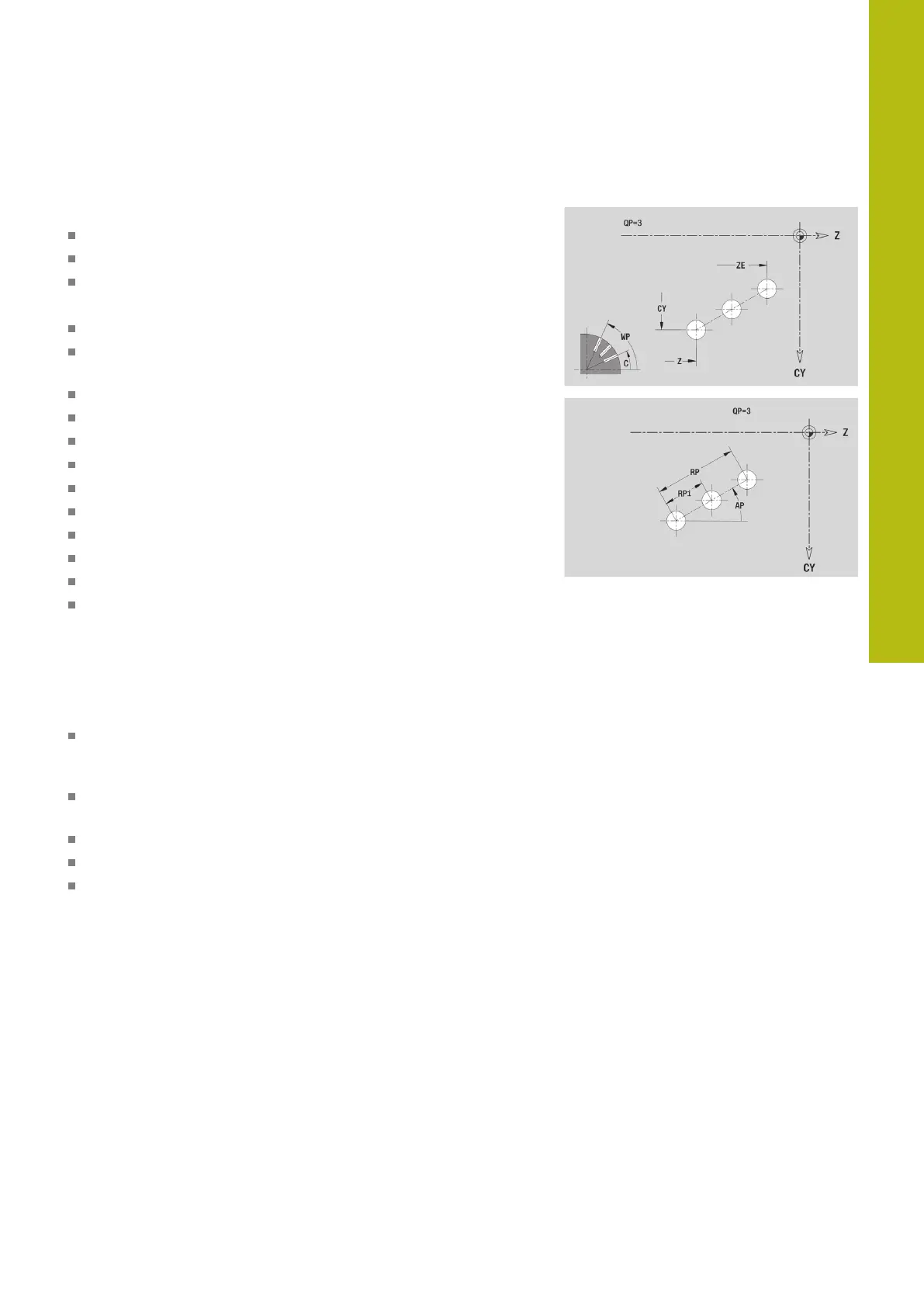

Linear pattern on lateral surface
Reference data of lateral surface:
ID: Contour
PT: Milling depth
XR: Reference diameter
Parameters of figure:
Z: 1st pattern point
CY: 1st pattern point as linear dimension (reference: diameter
XR)
C: 1st pattern point (angle)
QP: Quantity of points in pattern
ZE: Final point of pattern
ZEi: Final point – Distance between two pattern points (in Z)
WP: Final point of pattern (angle)
WPi: Final point – Distance between two pattern points (angle)
AP: Position angle
RP: Length – Total length of pattern
RPi: Length – Distance between two pattern points
Parameters of the selected figure/hole
You can use the Select reference plane function to determine the
Reference diameter XR.
Further information: "Reference data and nested contours",
Page 472
ICP generates the following:
The LATERAL section code with the Reference diameter
parameter. In nested contours, ICP generates only one section
code
a G308 with the Contour name and Milling depth or Boring
depth (–1*BT) parameters
A G411 with the parameters of the pattern
The G code and the parameters of the figure or hole
A G309
