Teach-in | Single cut cycles
5
194
HEIDENHAIN | MANUALplus 620 | User's Manual | 12/2017

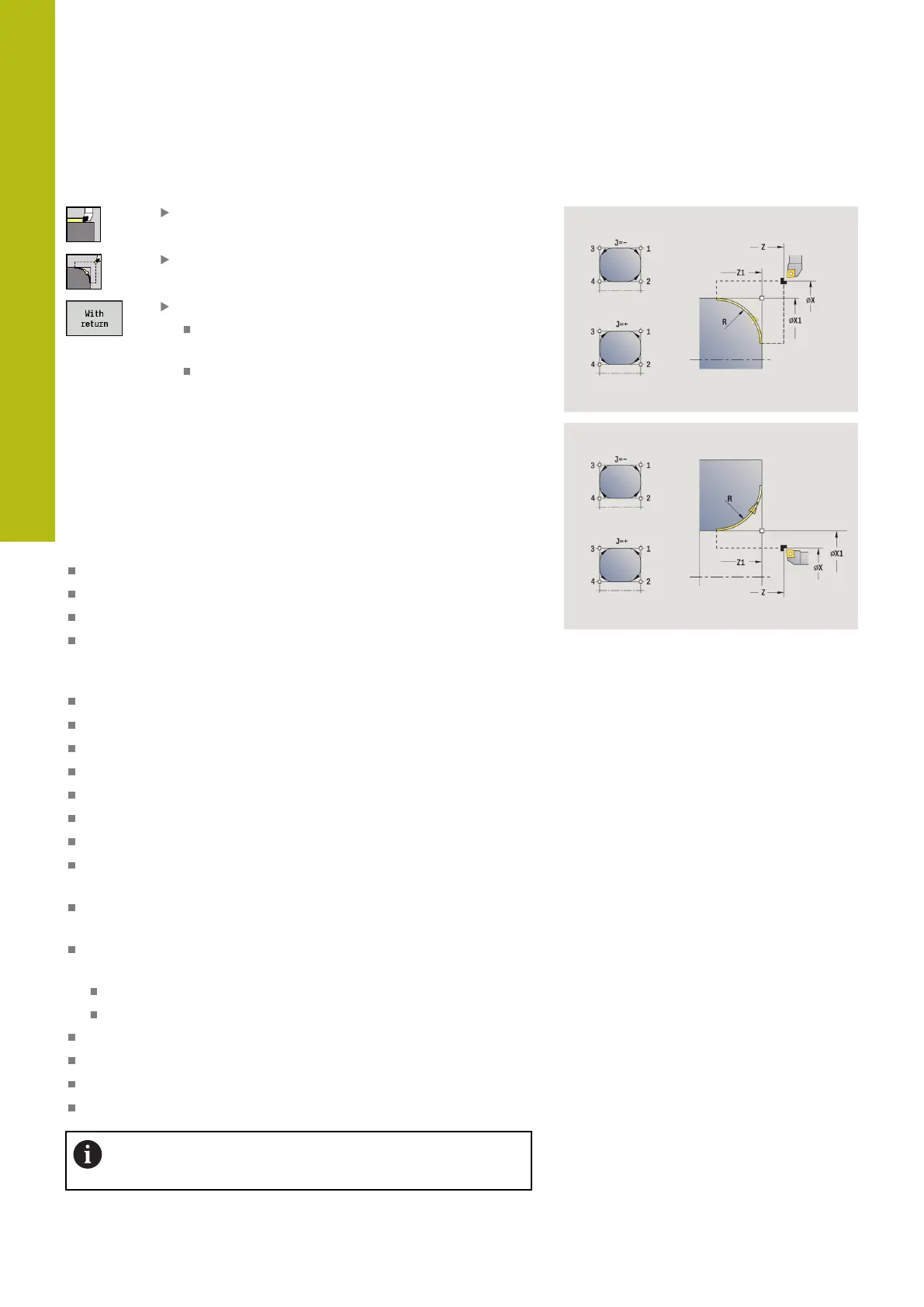

Rounding
Select Single cuts
Select Rounding
Select the scope of the cycle:
Off: When the cycle is completed, the tool
remains at the cycle end position
On: The tool returns to the starting point
Rounding: The cycle produces a rounding that is dimensioned
relative to the corner of the workpiece contour. When the cycle is
completed, the tool remains at the cycle end position.
Rounding (With return): The tool approaches the workpiece,
machines the rounding that is dimensioned relative to the corner of
the workpiece contour and returns to the Start point at the end of
cycle. Tool-tip radius compensation is taken into account.
Cycle parameters:
X, Z: Start point
X1, Z1: Contour corner
R: Rounding
J: Position (default: 1)
The algebraic sign determines the cutting direction (see help
graphic).
G47: Safety clearance (if With return is active)
T: Tool number – turret pocket number
G14: Tool change point (if With return is active)
ID: ID no.
S: Cutting speed or Constant speed
F: Feed per revolution
MT: M after T: M function that is executed after the tool call T
MFS: M at beginning: M function that is executed at the
beginning of the machining step
MFE: M at end: M function that is executed at the end of the
machining step
WP: No. of spindle – Displays which workpiece spindle is used
to execute the cycle (machine-dependent)
Main drive
Opposing spindle for rear-face machining
BW: Angle in the B axis (machine-dependent)
CW: Reverse the tool (machine-dependent)
HC: Shoe brake (machine-dependent)
DF: Miscellaneous function (machine-dependent)
Type of machining for technology database access:
Finishing
