ICP programming | Front face contours in smart.Turn mode of operation
6
HEIDENHAIN | MANUALplus 620 | User's Manual | 12/2017
481

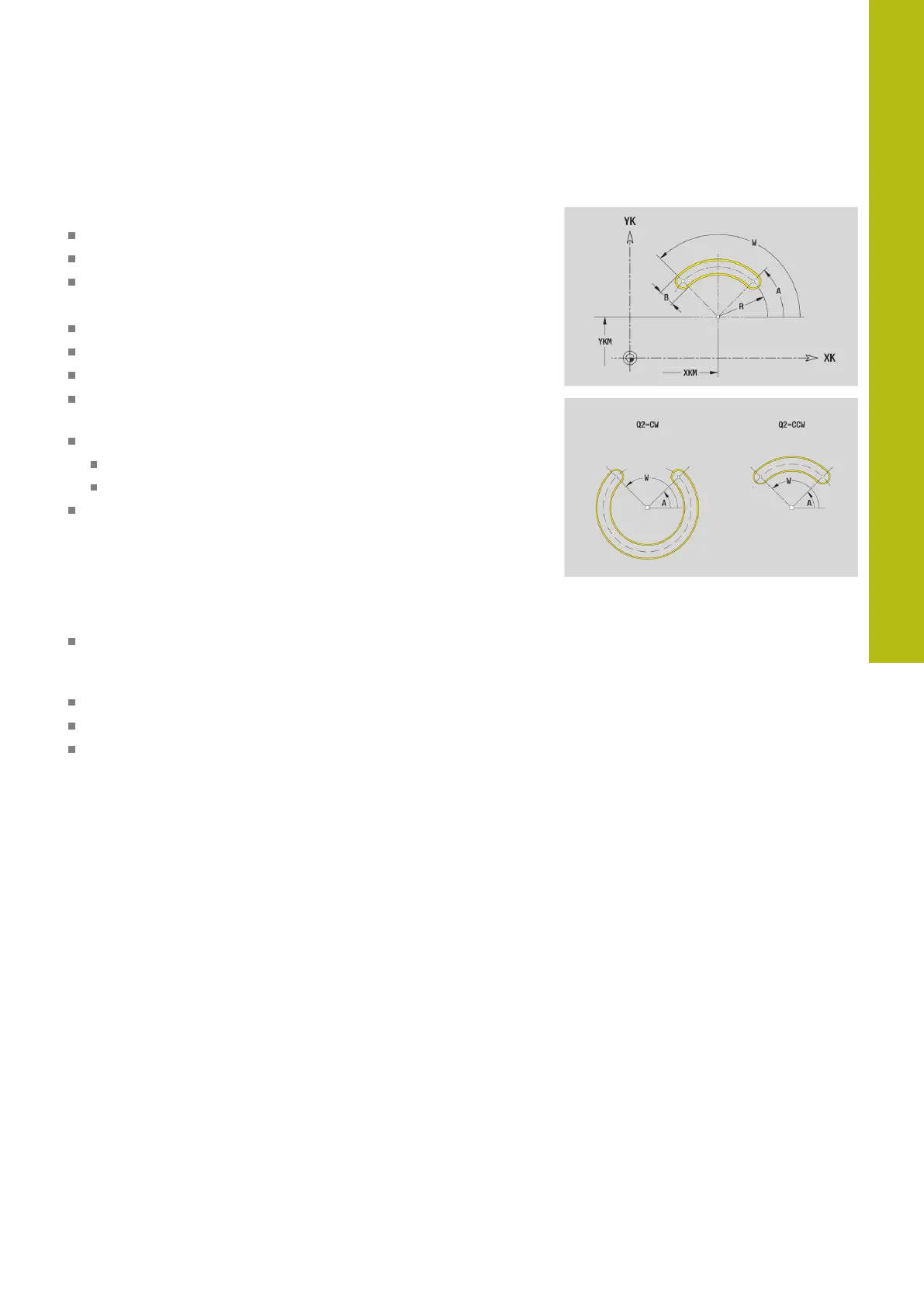

Circular slot on front face
Reference data of face:
ID: Contour
PT: Milling depth
ZR: Reference dimension
Parameters of figure:
XKM, YKM: Center point of figure (in Cartesian coordinates)
A: Start angle (reference: XK axis)
W: Final angle (reference: XK axis)
R: Radius – curvature radius (reference: center point path of the
slot)
Q2: Dir.rot.
CW
CCW
B: Breadth
You can use the Select reference plane function to determine the
Reference dimension ZR.
Further information: "Reference data and nested contours",
Page 472
ICP generates the following:
The FRONT section code with the Reference dimension
parameter. In nested contours, ICP generates only one section
code
A G308 with the Contour name and Milling depth parameters
A G302 or G303 with the parameters of the figure
A G309
