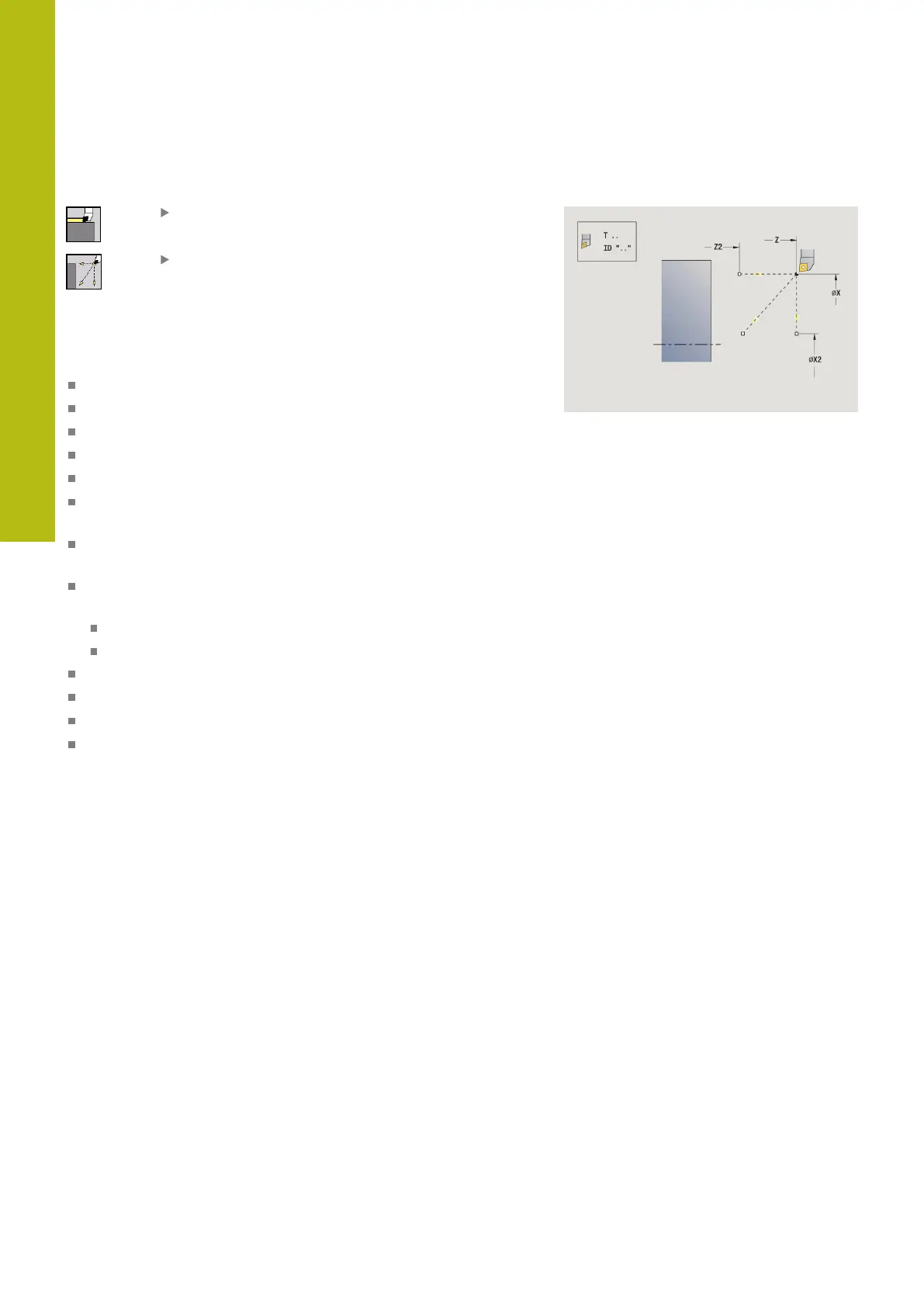

Rap. trav. positioning
Select Single cuts
Select Rap. trav. positioning
The tool moves at rapid traverse from the Start point to the Target
point.
Cycle parameters:
X, Z: Start point
X2, Z2: Target point
T: Tool number – turret pocket number
ID: ID no.
MT: M after T: M function that is executed after the tool call T
MFS: M at beginning: M function that is executed at the
beginning of the machining step
MFE: M at end: M function that is executed at the end of the
machining step
WP: No. of spindle – Displays which workpiece spindle is used
to execute the cycle (machine-dependent)
Main drive
Opposing spindle for rear-face machining
BW: Angle in the B axis (machine-dependent)
CW: Reverse the tool (machine-dependent)
HC: Shoe brake (machine-dependent)
DF: Miscellaneous function (machine-dependent)
