Graphic simulation | Time calculation
7
548
HEIDENHAIN | MANUALplus 620 | User's Manual | 12/2017
7.6 Time calculation

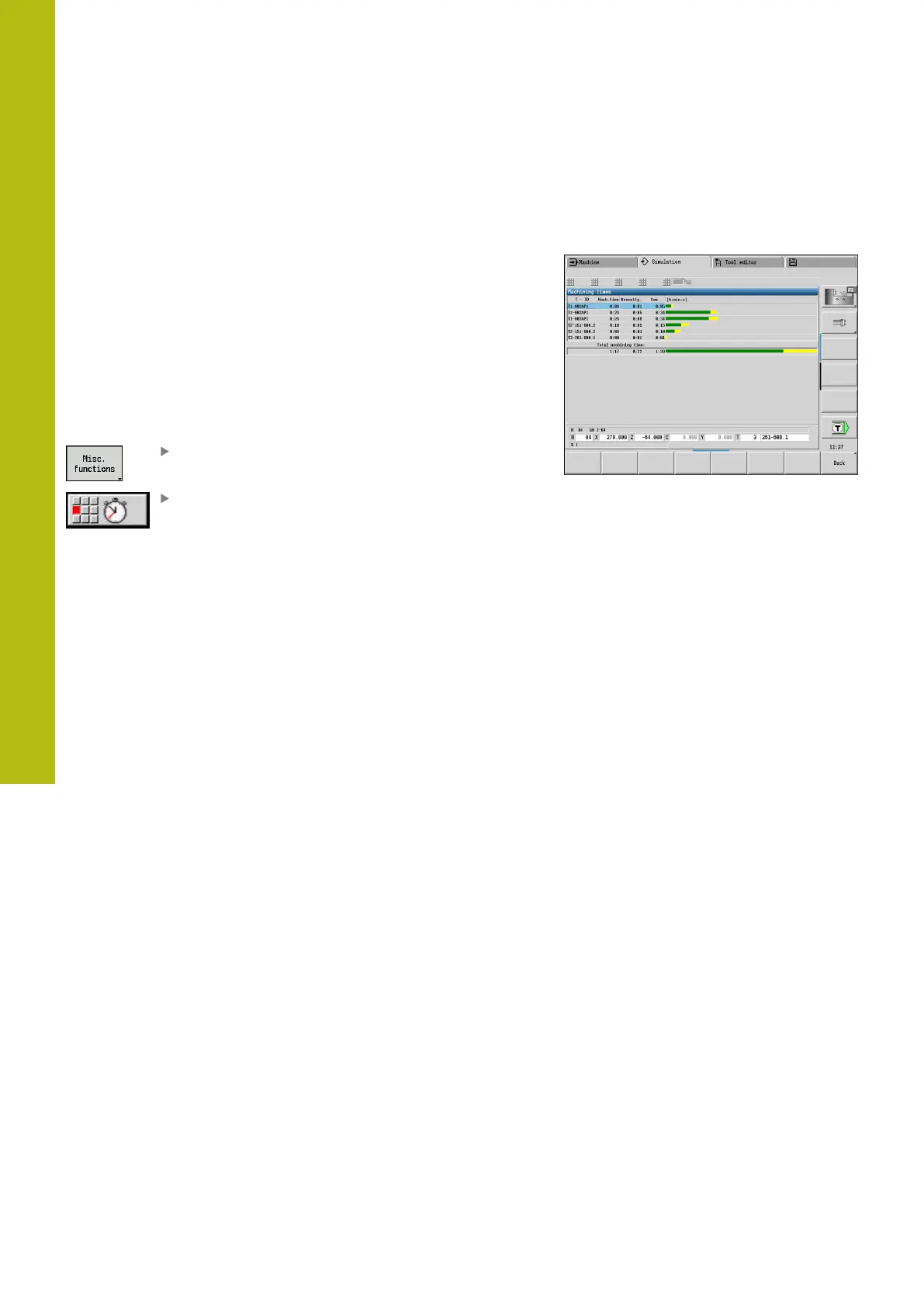

Showing the machining times
During simulation, the machining and idle-machine times are
calculated. The machining times, idle times and total times are
shown in the time calculation table (green: machining times;
yellow: idle times). If you are working with cycle programs, each
cycle is shown in a separate line. In DIN programs, each line
represents the use of a new tool (for each tool call with T).
If there are more table entries than fit on a screen page, you can
call further time data with the arrow keys and PgUp/PgDn.
You can access the machining times as follows:
Press the Miscellaneous functions soft key
Select the Time calculation menu item
