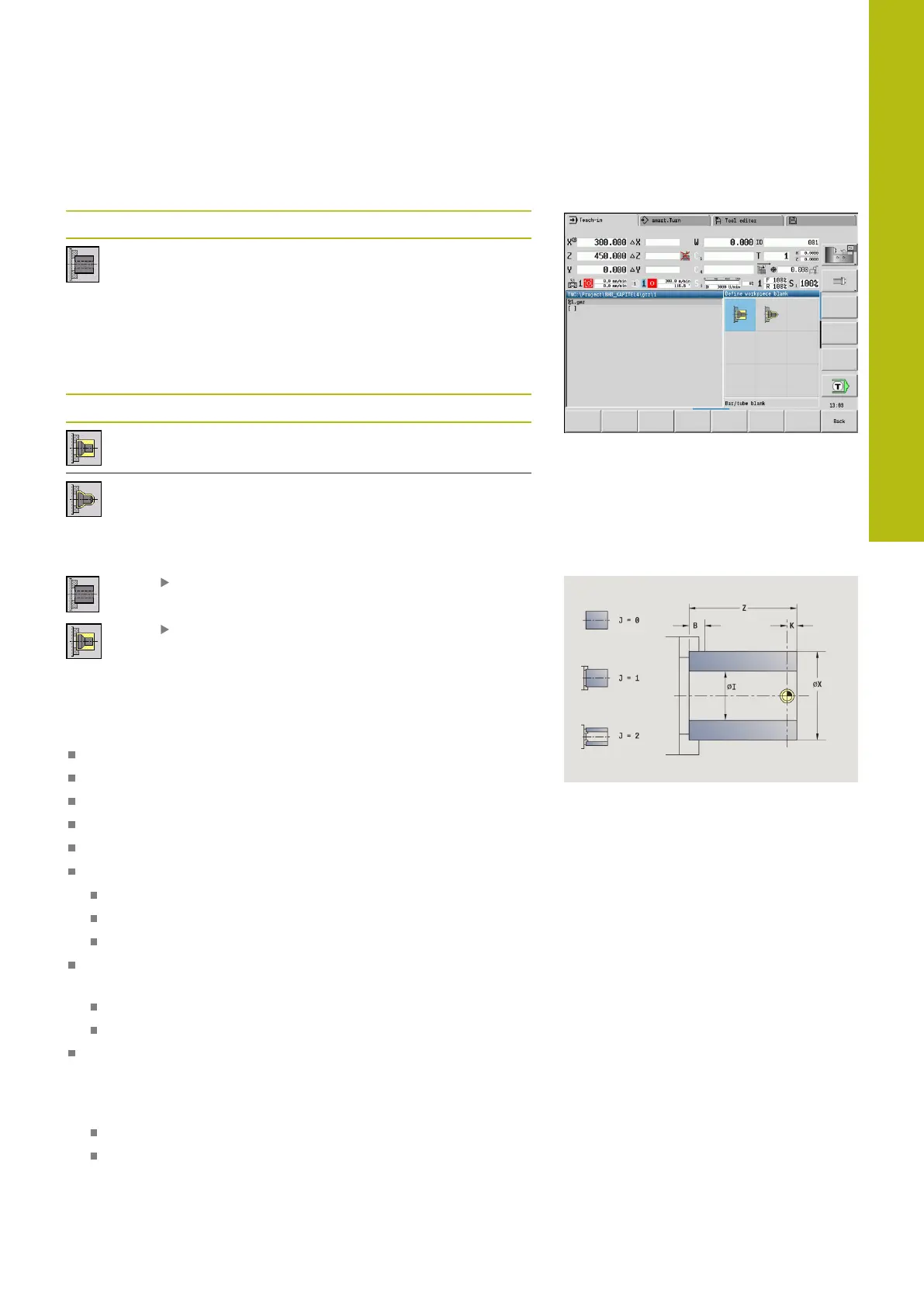

5.2 Workpiece blank cycles
Menu item Meaning
With the workpiece blank cycles you can
describe the workpiece blank and the setup
used. The workpiece blank cycles do not
influence the machining process.
The contours of workpiece blanks are
shown during the simulation of the machin-
ing process.
Menu item Workpiece blank cycles
Bar/tube blank
Defining a standard workpiece blank
ICP workpiece blank contour
Free workpiece blank description with ICP
Bar/tube blank
Select Define workpiece blank
Select Bar/tube blank
The cycle describes the workpiece blank and the setup used. This
information is evaluated in the Simulation submode.
Cycle parameters:
X: Outside diameter
Z: Length – Including transverse oversize and clamping range
I: Inside diameter
K: Righthnd edge – Transverse oversize
B: Clamp range
J: Clamp type
0: Not clamped
1: Externally clamped
2: Internally clamped
WP: No. of spindle – Displays which workpiece spindle is used
to execute the cycle (machine-dependent)
Main drive
Opposing spindle for rear-face machining
RG: Activate contour follow-up – Contour follow-up for Teach-
in submode
Further information: "Contour follow-up in Teach-in submode",
Page 174
0: Without contour follow-up
1: With contour follow-up
