Teach-in | Single cut cycles
5
186
HEIDENHAIN | MANUALplus 620 | User's Manual | 12/2017

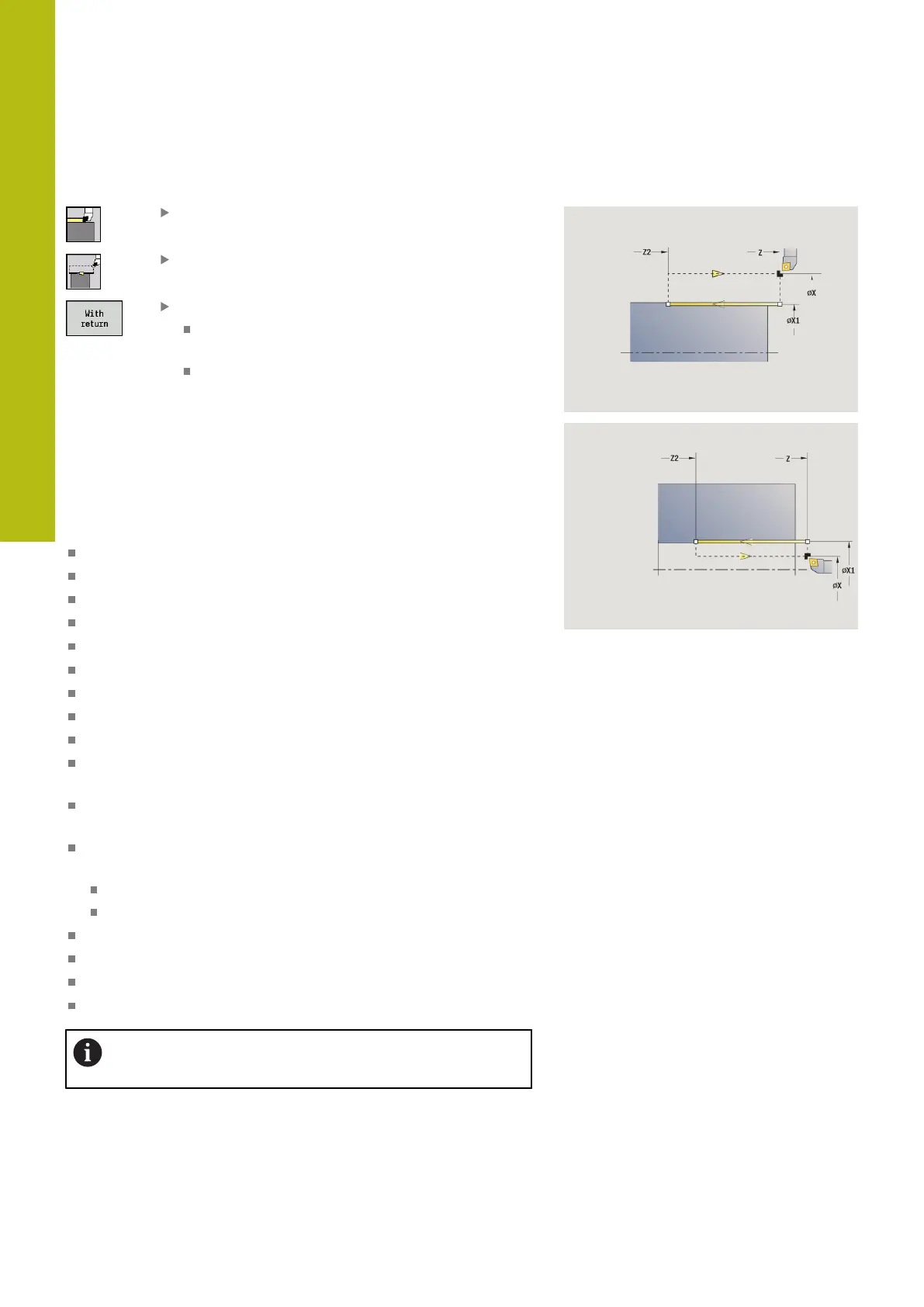

Linear mach. longit.
Select Single cuts
Select Linear mach. longit.
Select the scope of the cycle:
Off: When the cycle is completed, the tool
remains at the cycle end position
On: The tool returns to the starting point
Linear mach. longit.: The tool moves from the Start point to the
End point contour Z2 at the programmed feed rate and remains at
the cycle end position.
Linear mach. longit. (With return): The tool approaches the
workpiece, executes the longitudinal cut and returns to the Start
point at the end of cycle.
Cycle parameters:
X, Z: Start point
X1: Start point contour (if With return is active)
Z2: End point contour
T: Tool number – turret pocket number
G14: Tool change point (if With return is active)
ID: ID no.
S: Cutting speed or Constant speed
F: Feed per revolution
MT: M after T: M function that is executed after the tool call T
MFS: M at beginning: M function that is executed at the
beginning of the machining step
MFE: M at end: M function that is executed at the end of the
machining step
WP: No. of spindle – Displays which workpiece spindle is used
to execute the cycle (machine-dependent)
Main drive
Opposing spindle for rear-face machining
BW: Angle in the B axis (machine-dependent)
CW: Reverse the tool (machine-dependent)
HC: Shoe brake (machine-dependent)
DF: Miscellaneous function (machine-dependent)
Type of machining for technology database access:
Finishing
Cycle execution if With return is active:
1
Move from Start point to Start point contour X1
2
Move to End point contour Z2 at programmed feed rate
3
Retract and return to Start point on paraxial path
