Tool and technology database | Tool data
8
576
HEIDENHAIN | MANUALplus 620 | User's Manual | 12/2017
8.3 Tool data
General tool parameters
The parameters listed in the following table are available for all tool
types. Parameters for specific tool types are described in the later
chapters.
General tool parameters:
ID: ID no. – Tool name (max. 16 characters)

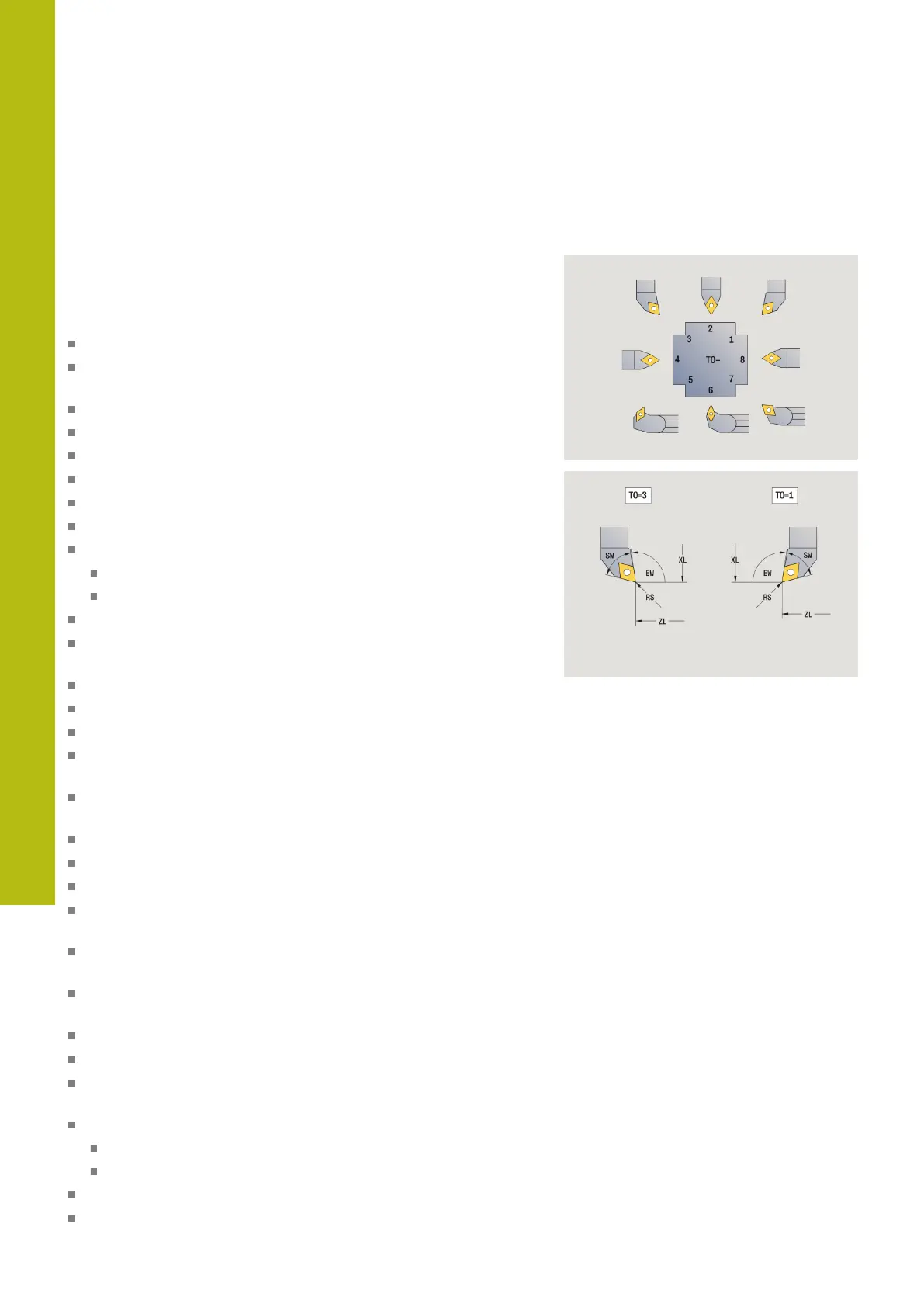

TO: Tool orientation (for identification number, see help
graphic)
XL: Setup dim. in X
ZL: Setup dim. in Z
DX: Wear compensation in X (range: –10 < DX < 10)
DZ: Wear compensation in Z (range: –10 < DZ < 10)
DS: Special corr. (range: –10 < DS < 10)
MU: Multipoint tool
MD: Rotatnl. dir. M3=3, M4=4 (default: Not defined
3: M3
4: M4
LA: Tool inserted
Life: Remaining time / remaining quantity (with tool life
monitoring)
Status: With tool life monitoring
Diagn.: Evaluation of diagnostic bits (with tool life monitoring)
QT: Reference to Tool text
CW: C tilting plane angle – Position of the C axis to determine
the work position of the tool (machine-dependent)
SS: Cutting material – Name of the cutting material for access
to the technology database
CK: G96 compensation factor (default: 1)
FK: G95 compensation factor (default: 1)
DK: Depth compensation factor (default: 1)
PLC: Additional information
Further information: Machine manual
MT: Programmed tool life – Default value for tool life
management (default: not specified)
MZ: Programmed quantity – Default value for tool life
management (default: Not defined)
RT: Remaining tool life
RZ: Remaining quantity
HID: Tool holder designation – Unique holder name (max. 16
characters)
MTS: Manual change system
0: Tool holder
1: Manual change tool
PTYP: Pocket type (machine-dependent)
NMX: Max. shaft speed (spindle speed limitation)
