Tool and technology database | Tool data
8
HEIDENHAIN | MANUALplus 620 | User's Manual | 12/2017
581
Thread-cutting tools
Press the New tool soft key
Press the Threading tool soft key

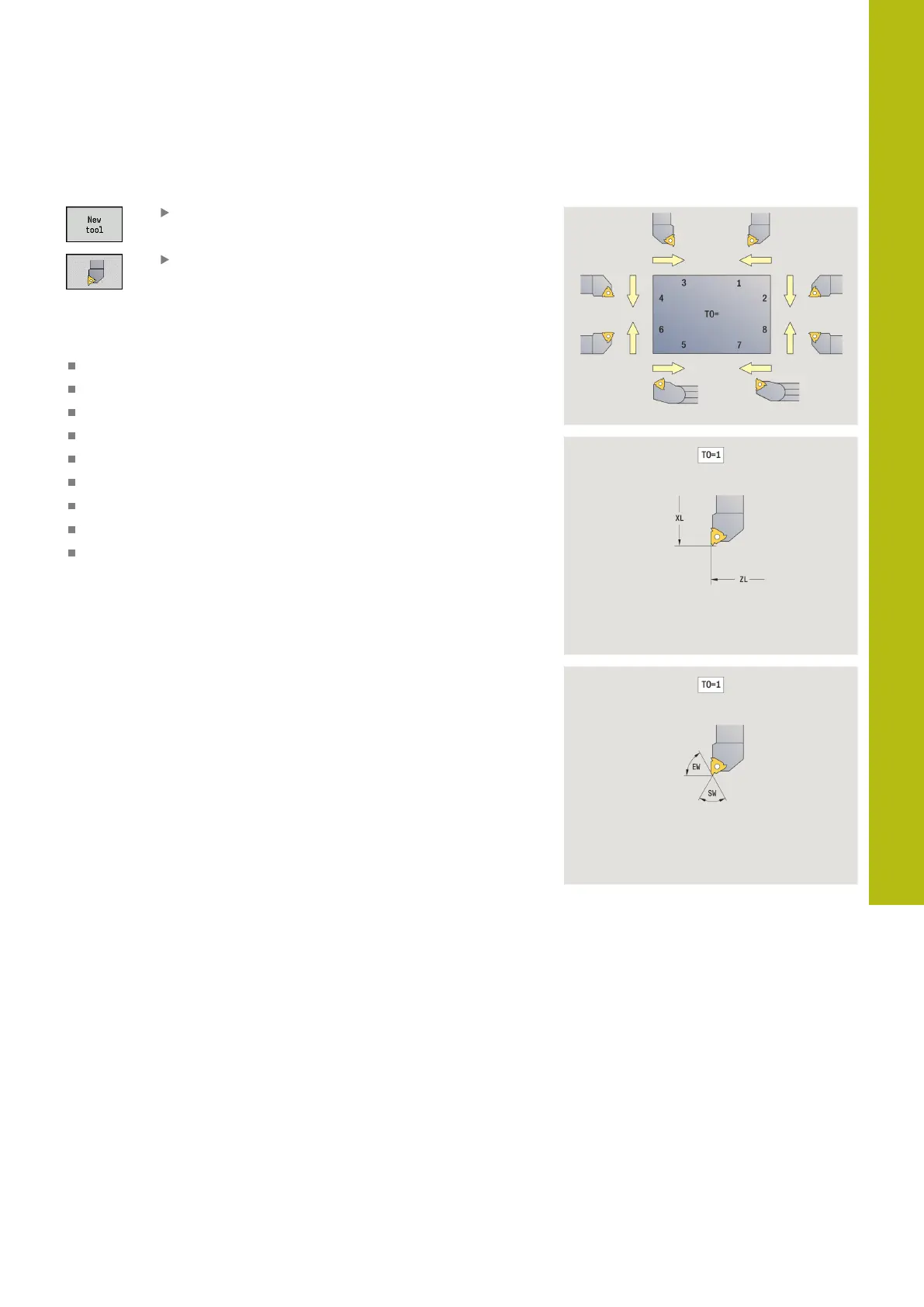

The help graphics illustrate the dimensions of the tools.
Special parameters for thread cutting tools:
RS: Cutting edge radius
SB: Cutting width
EW: Setting angle (range: 0° <= EW <= 180°)
SW: Point angle (range: 0° <= SW <= 180°)
DN: Tool width
SD: Shank diameter
ET: Max. plunging depth
NL: Usable length
Further tool parameters:
Further information: "General tool parameters", Page 576
