Tool and technology database | Tool data
8
582
HEIDENHAIN | MANUALplus 620 | User's Manual | 12/2017
Twist drills and indexable-insert drills
Press the New tool soft key
Press the Drill soft key
Alternative: For indexable-insert drills, switch to
dialog for Indexable-insert drill

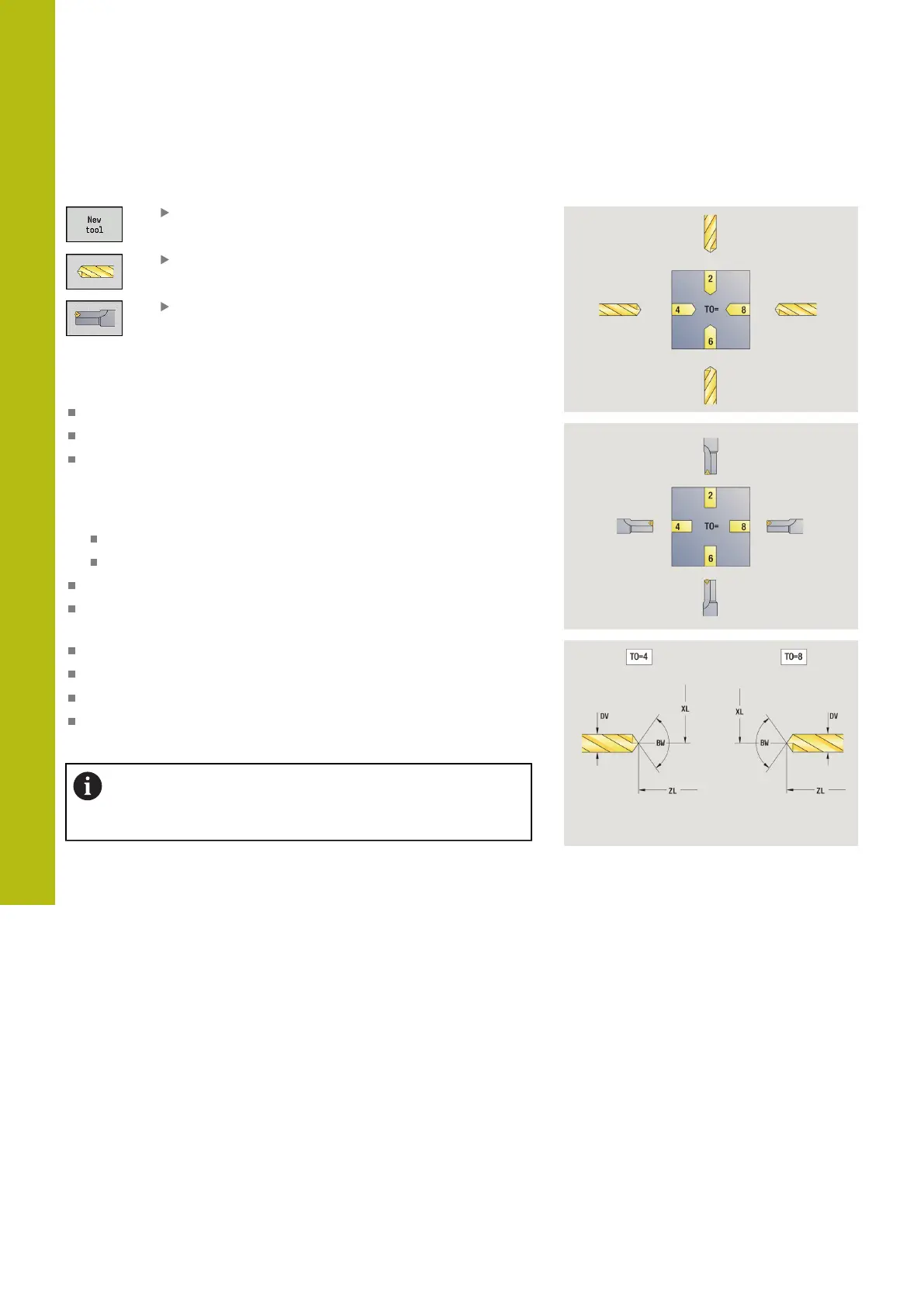

The help graphics illustrate the dimensions of the tools.
Special parameters for twist drills:
DV: Hole diameter
BW: Drill angle – Point angle of the drill
AW: Tool driven, no=0/yes=1
This parameter specifies for drilling and tapping tools during
cycle programming whether switching commands are
generated for the spindle or the driven tool.
0: Stationary tool
1: Driven tool
NL: Usable length
RW: Position angle – Deviation from the main machining
direction (range: –90° to +90°)
AX: Salient length in X
FH: Height of the chuck for driven tool
FD: Diameter of the chuck
Further tool parameters:
Further information: "General tool parameters", Page 576
For drilling operations at constant cutting speed, the
Hole diameter DV parameter is used to calculate the
spindle speed.
