ICP programming | Contours in the XY plane
6
508
HEIDENHAIN | MANUALplus 620 | User's Manual | 12/2017

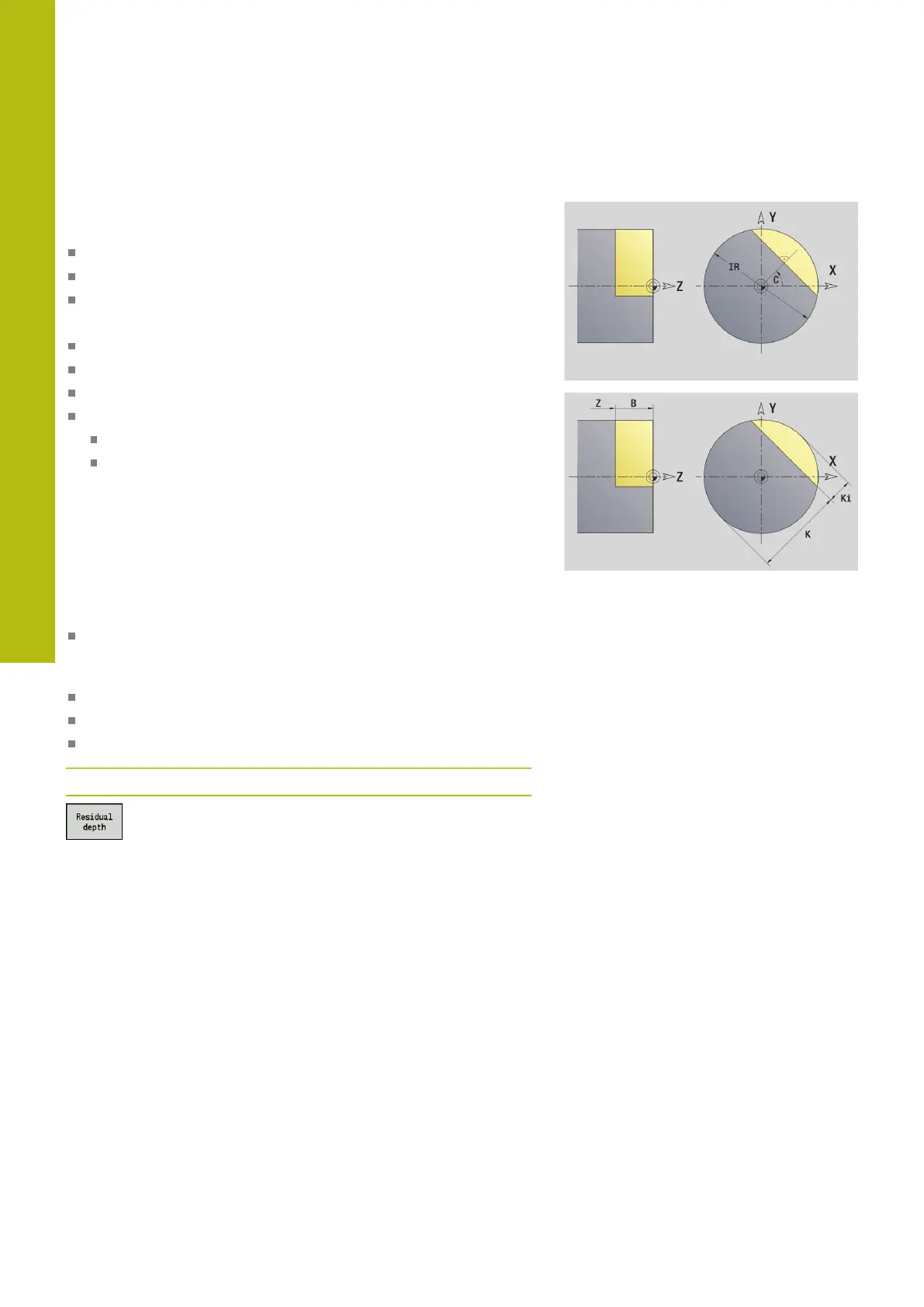

Single surface in XY plane
This function defines a surface in the XY plane.
Reference data of XY plane:
ID: Contour
C: Spindle angle
IR: Limit diameter
Parameters of single surface:
Z: Reference edge
Ki: Depth
K: Residual depth
B: Breadth (reference: Reference dimension ZR)
B < 0: Surface in negative Z direction
B > 0: Surface in positive Z direction
You can switch between Depth Ki and Residual depth K by soft
key.
You can use the Select reference plane function to determine the
Reference dimension ZR and the Limit diameter IR.
Further information: "Reference data and nested contours",
Page 472
ICP generates the following:
The FRONT Y section code with the Limit diameter, Reference
dimension, and Spindle angle parameters. The section code is
omitted for nested contours.
a G308 with the Contour name parameter
A G376 with the parameters of the single surface
A G309
Soft key
Switch the field to the input of Residual
depth K
