ICP programming | Front face contours in smart.Turn mode of operation
6
HEIDENHAIN | MANUALplus 620 | User's Manual | 12/2017
483

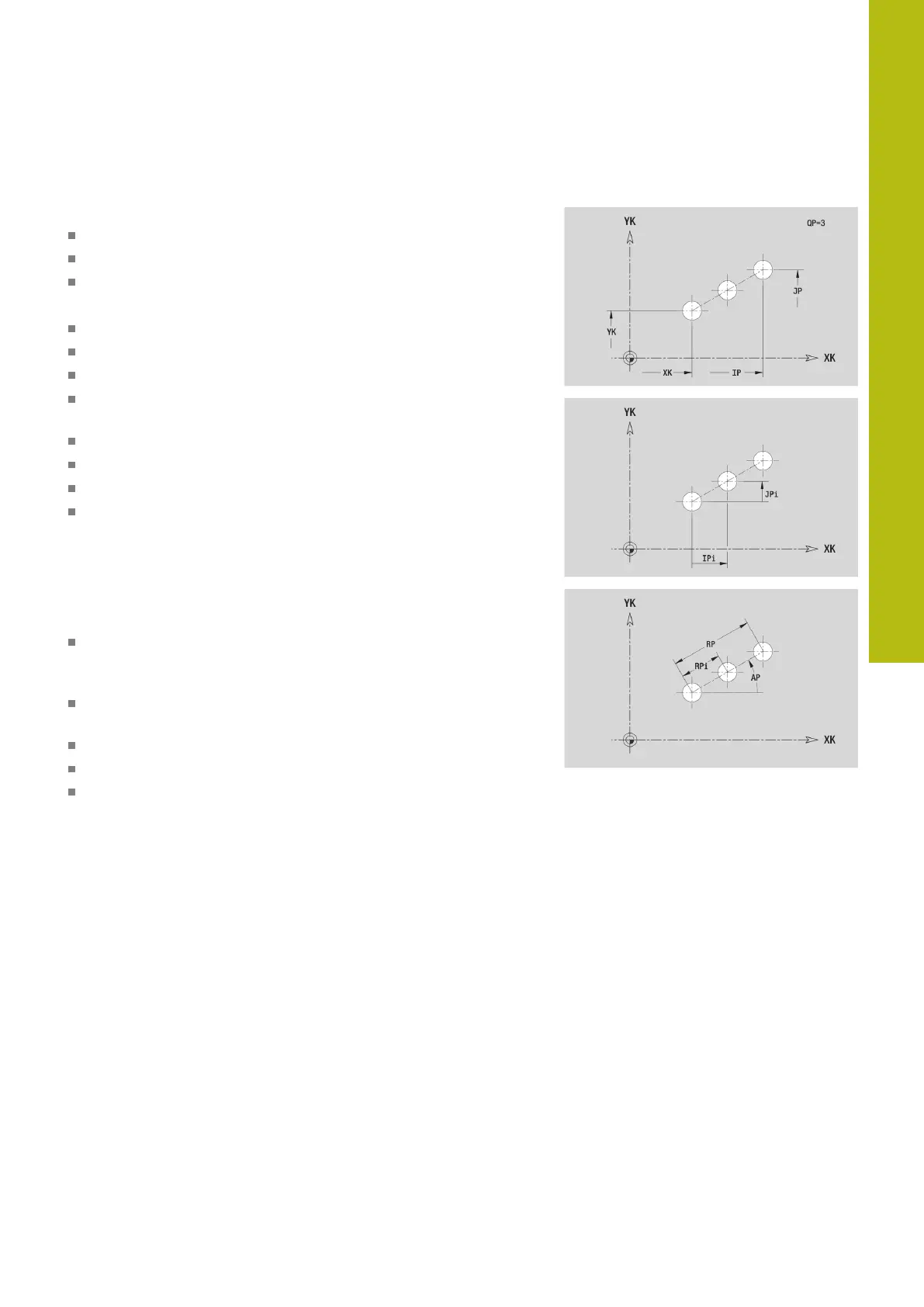

Linear pattern on front face
Reference data of face:
ID: Contour
PT: Milling depth
ZR: Reference dimension
Parameters of figure:
XK, YK: 1st pattern point (in Cartesian coordinates)
QP: Quantity of points in pattern
IP, JP: Final point of pattern (in Cartesian coordinates)
IPi, JPi: Final point – Distance between two pattern points (in
XK and YK)
AP: Position angle
RP: Length – Total length of pattern
RPi: Length – Distance between two pattern points
Parameters of selected figure or hole
You can use the Select reference plane function to determine the
Reference dimension ZR.
Further information: "Reference data and nested contours",
Page 472
ICP generates the following:
The FRONT section code with the Reference dimension
parameter. In nested contours, ICP generates only one section
code
a G308 with the Contour name and Milling depth or Boring
depth (–1*BT) parameters
A G401 with the parameters of the pattern
The G code and the parameters of the figure or hole
A G309
