Teach-in | Recessing cycles
5
HEIDENHAIN | MANUALplus 620 | User's Manual | 12/2017
275

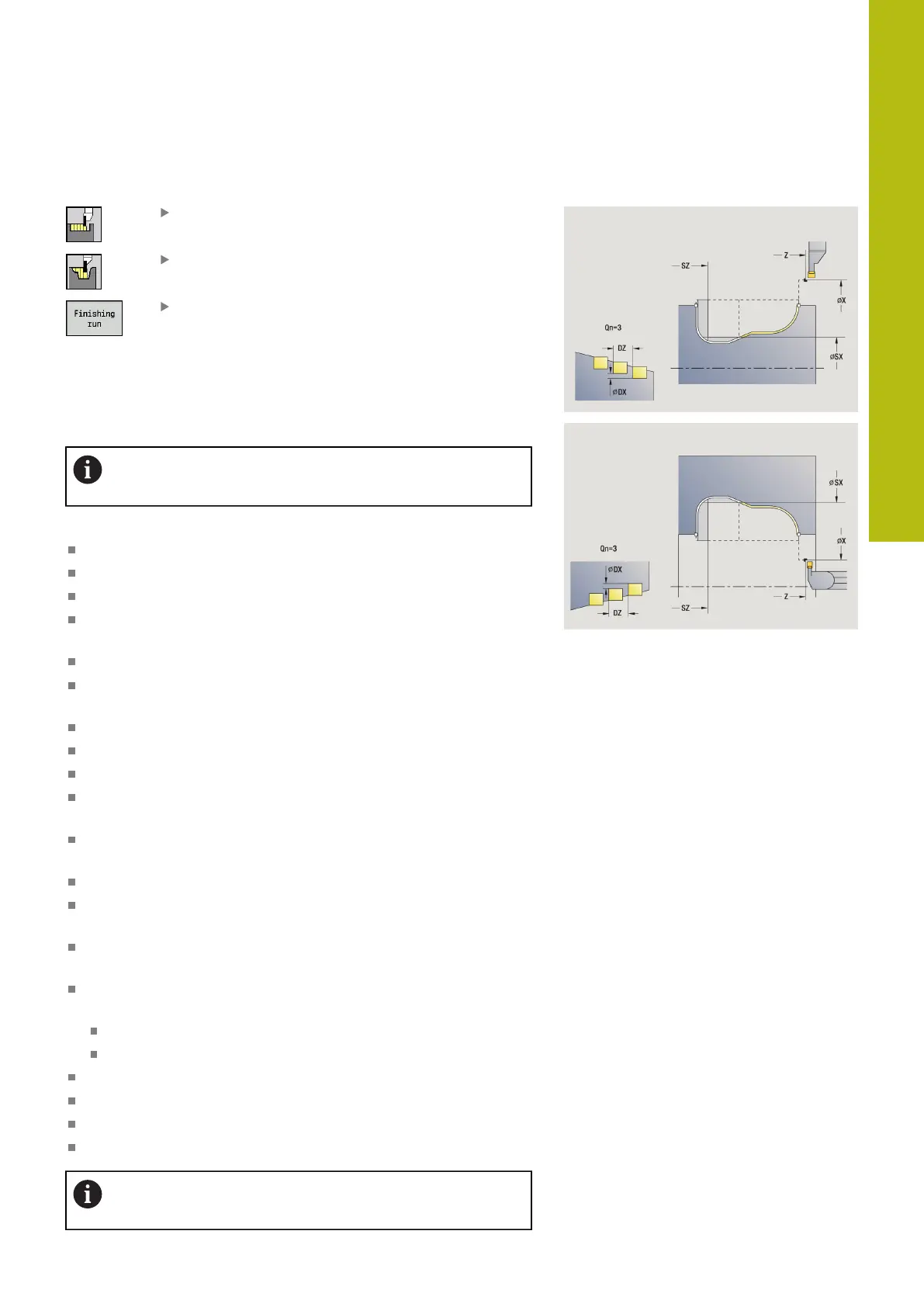

Radial ICP recessing, finishing
Select Recessing cycle
Select Recessing radial ICP
Press the Finishing run soft key
The cycle machines the number of recesses defined in Number
of recess cycles Qn. The Start point and End point contour
parameters define the first recess (position, recess depth and
recess width).
At the end of the cycle, the tool returns to the Start
point.
Cycle parameters:
X, Z: Start point
FK: No. of ICP finished part – name of contour to be machined
Qn: Number of recess cycles (default: 1)
DX, DZ: Dist.to subsequent recess with respect to the
preceding recess
T: Tool number – turret pocket number
G14: Tool change point
Further information: "Tool change point G14", Page 180
ID: ID no.
S: Cutting speed or Constant speed
F: Feed per revolution
SX, SZ: Cutting limit in X and Z
Further information: "Cutting limits SX, SZ", Page 180
G47: Safety clearance
Further information: "Safety clearance G47", Page 180
MT: M after T: M function that is executed after the tool call T
MFS: M at beginning: M function that is executed at the
beginning of the machining step
MFE: M at end: M function that is executed at the end of the
machining step
WP: No. of spindle – Displays which workpiece spindle is used
to execute the cycle (machine-dependent)
Main drive
Opposing spindle for rear-face machining
BW: Angle in the B axis (machine-dependent)
CW: Reverse the tool (machine-dependent)
HC: Shoe brake (machine-dependent)
DF: Miscellaneous function (machine-dependent)
Type of machining for technology database access:
Contour recessing
