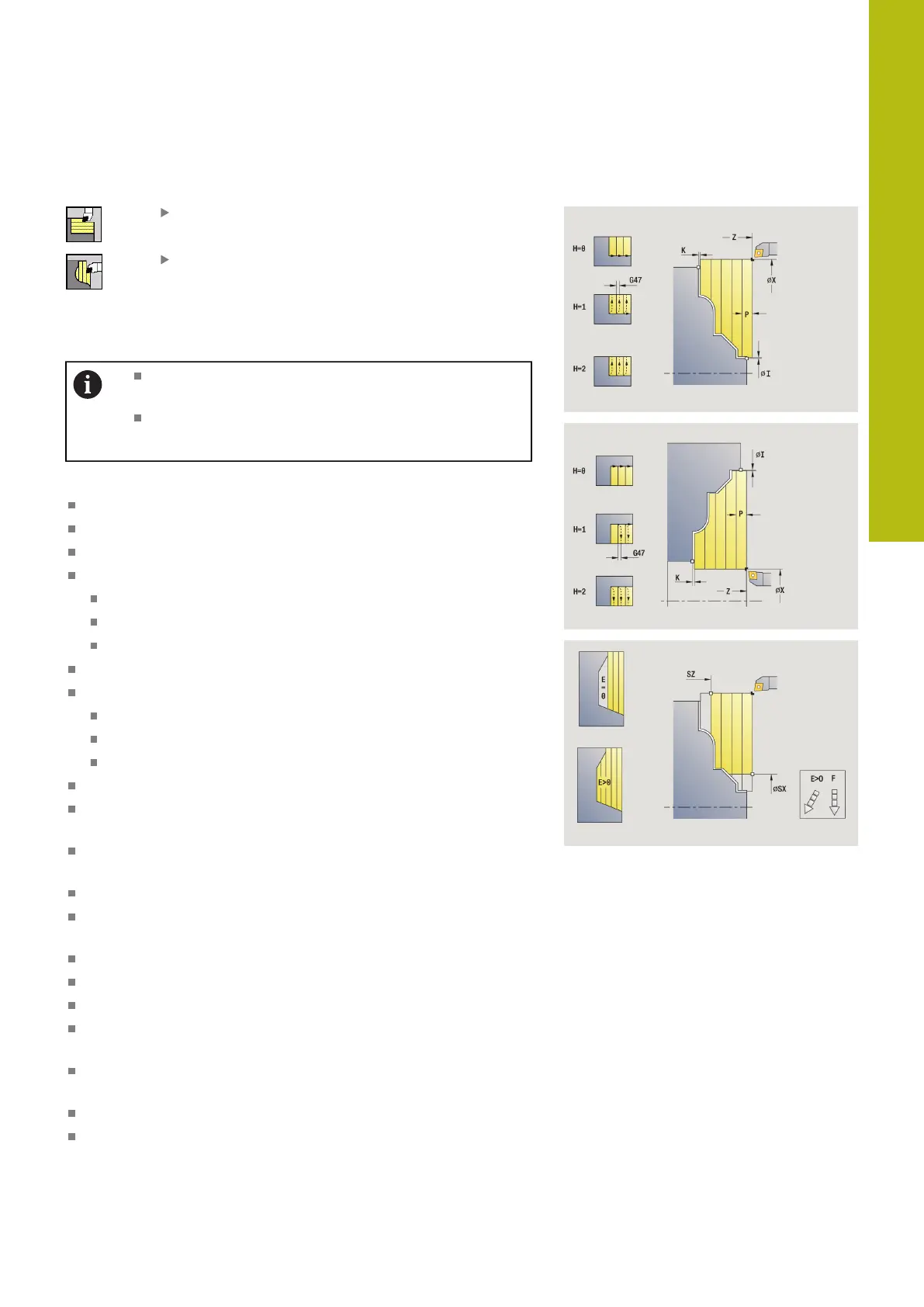

ICP cutting transverse
Select Roughing cycles lon/trans
Select ICP cutting transverse
The cycle roughs the area defined by the start point and the ICP
contour, taking the oversizes into account.
The tool plunges with the maximum possible angle,
leaving material remaining
The steeper the tool plunges into the material, the
greater the feed rate decrease (max. 50 %)
Cycle parameters:
X, Z: Start point
FK: No. of ICP finished part – name of contour to be machined
P: Feed depth – Maximum infeed depth
H: Contour smoothing
0: With each cut
1: With the last cut
2: No smoothing
I, K: O-size X and Z
E: Plunging behavior
No input: Automatic feed-rate reduction
E = 0: No plunging
E > 0: Plunging feed rate in use
O: Hide undercutting
SX, SZ: Cutting limit in X and Z
Further information: "Cutting limits SX, SZ", Page 180
G47: Safety clearance
Further information: "Safety clearance G47", Page 180
T: Tool number – turret pocket number
G14: Tool change point
Further information: "Tool change point G14", Page 180
ID: ID no.
S: Cutting speed or Constant speed
F: Feed per revolution
BP: Interval time – time span for interruption of the feed
The chip is broken by the (intermittent) interruption of the feed.
BF: Feed period – time interval until the next break
The chip is broken by the (intermittent) interruption of the feed.
A: Start angle (reference: Z axis; default: parallel to Z axis)
W: Depart.angle (reference: Z axis; default: orthogonal to Z axis)
