Examples of pattern machining

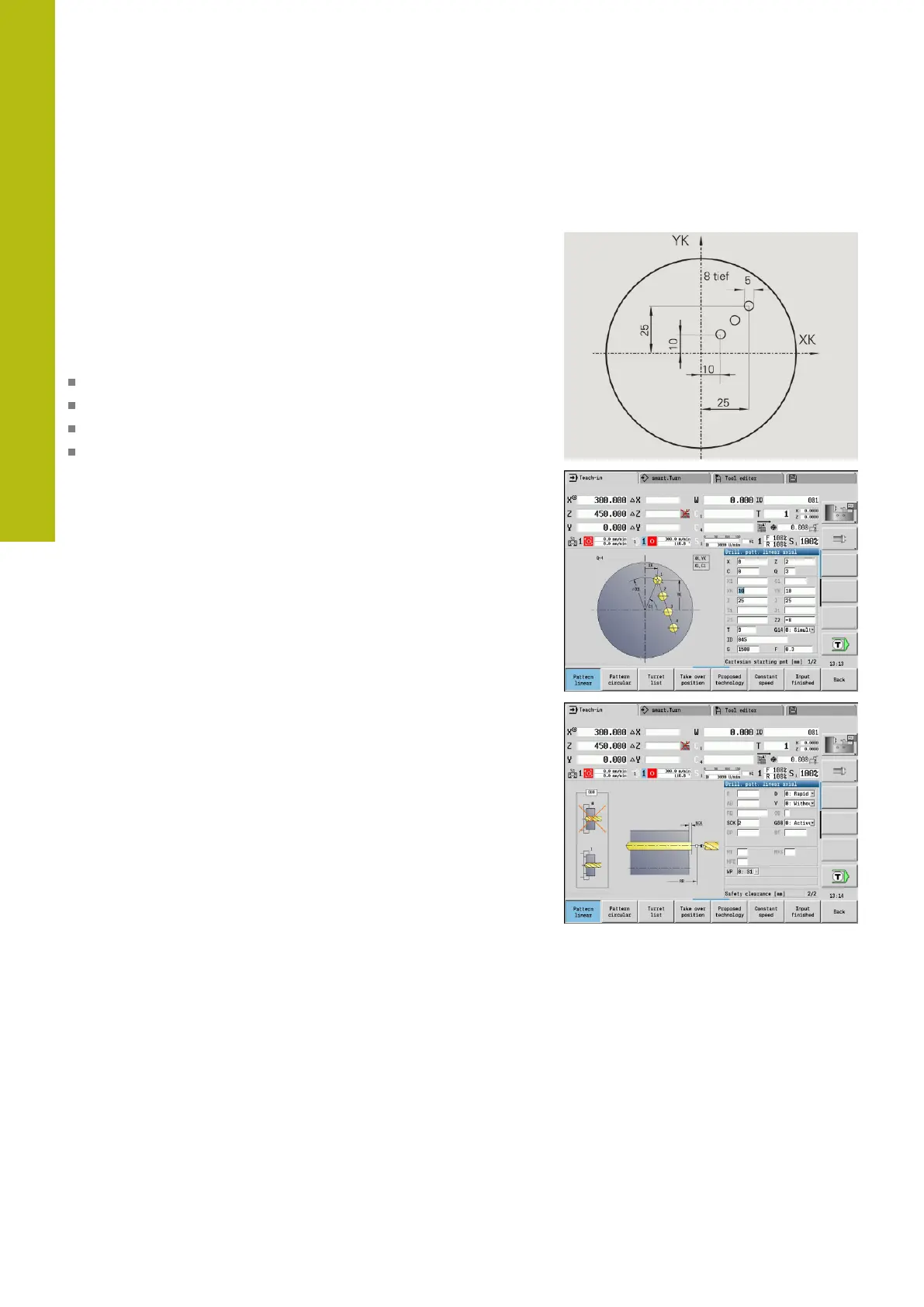

Linear hole pattern on face
A linear hole pattern is to be machined on the face of the
workpiece with the Drilling radial cycle. This machining operation
requires a traversable spindle and driven tools.
The pattern is programmed by entering the coordinates of the first
and last hole, and the number of holes. Only the depth is indicated
for the drilling cycle.
Tool data
TO = 8 – Tool orientation
DV = 5 – Drilling diameter
BW = 118 – Point angle
AW = 1 – The tool is a driven tool
