Teach-in | Turning cycles
5
HEIDENHAIN | MANUALplus 620 | User's Manual | 12/2017
199
Cut longitud.
Select Roughing cycles lon/trans
Select Cut longitud.

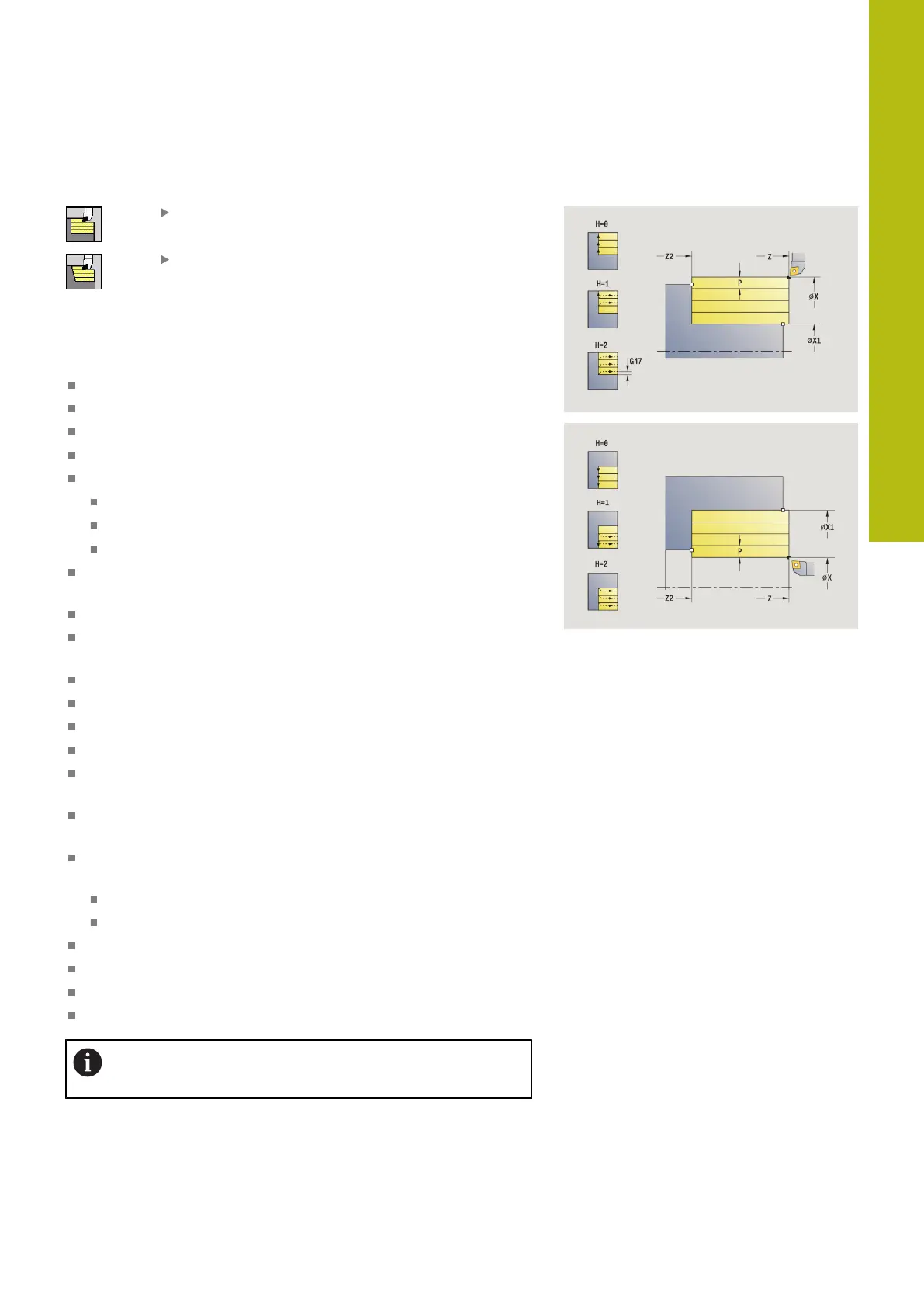

The cycle roughs the rectangle described by the Start point and
the Start point contour X1/End point contour Z2.
Cycle parameters:
X, Z: Start point
X1: Start point contour
Z2: End point contour
P: Feed depth – Maximum infeed depth
H: Contour smoothing
0: With each cut
1: With the last cut
2: No smoothing
G47: Safety clearance
Further information: "Safety clearance G47", Page 180
T: Tool number – turret pocket number
G14: Tool change point
Further information: "Tool change point G14", Page 180
ID: ID no.
S: Cutting speed or Constant speed
F: Feed per revolution
MT: M after T: M function that is executed after the tool call T
MFS: M at beginning: M function that is executed at the
beginning of the machining step
MFE: M at end: M function that is executed at the end of the
machining step
WP: No. of spindle – Displays which workpiece spindle is used
to execute the cycle (machine-dependent)
Main drive
Opposing spindle for rear-face machining
BW: Angle in the B axis (machine-dependent)
CW: Reverse the tool (machine-dependent)
HC: Shoe brake (machine-dependent)
DF: Miscellaneous function (machine-dependent)
Type of machining for technology database access:
Roughing
