ICP programming | Contours in the XY plane
6
500
HEIDENHAIN | MANUALplus 620 | User's Manual | 12/2017
Figures, patterns and holes in XY plane (front face)

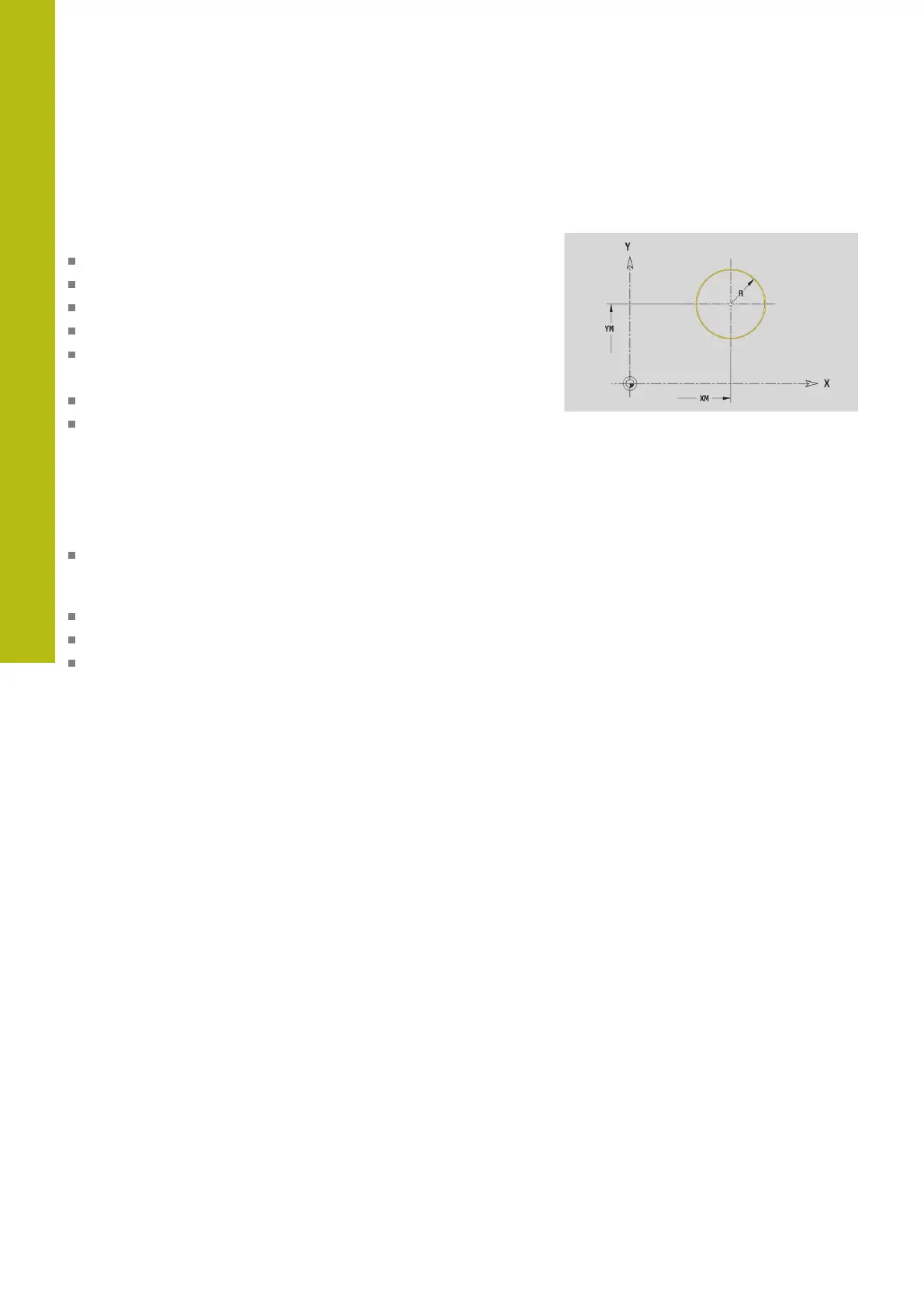

Circle in XY plane
Reference data of XY plane:
ID: Contour
PT: Milling depth
C: Spindle angle
IR: Limit diameter
ZR: Reference dimension
Parameters of figure:
XM, YM: Center
R: Radius
You can use the Select reference plane function to determine the
Reference dimension ZR and the Limit diameter IR.
Further information: "Reference data and nested contours",
Page 472
ICP generates the following:
The FRONT Y section code with the Limit diameter, Reference
dimension, and Spindle angle parameters. The section code is
omitted for nested contours.
A G308 with the Contour name and Milling depth parameters
A G374 with the parameters of the figure
