Tool control graphics

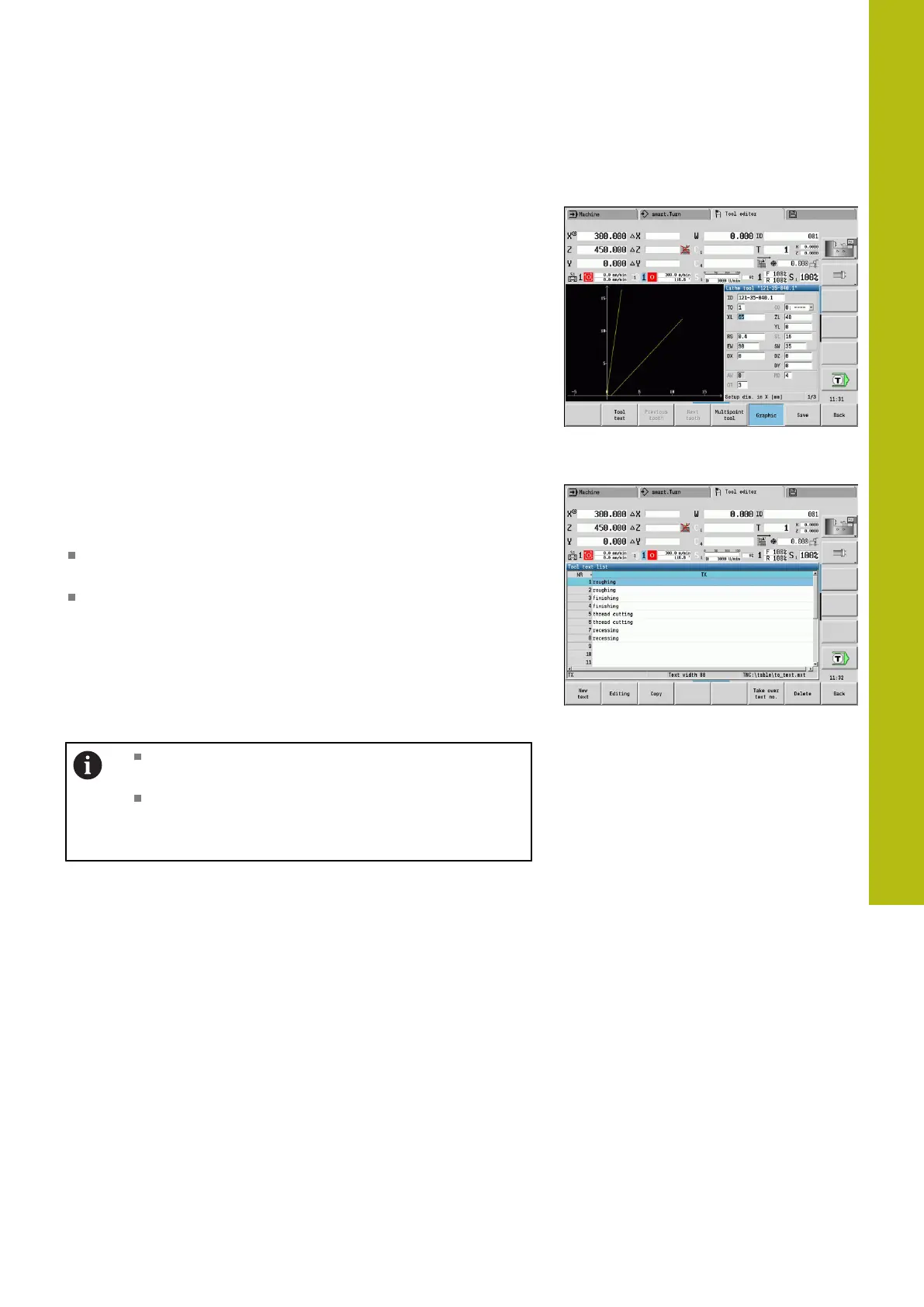

When the tool dialog box is open, the control provides a control
graphic with which you can check the entered tools. To do so,
press the Graphic soft key.
The control generates the displayed tool from the entered
parameters. The tool control graphic enables you to check the
entered data. Changes become effective as soon as you exit the
input field.
Tool texts
Tool texts are assigned to the tools and displayed in the tool list.
The control manages the tool texts in a separate list.
Connections:
The descriptions are managed in the tool text list. Each entry is
preceded by a QT number.
The parameter Tool text QT contains the reference number for
the tool text list. The text indicated by QT is then displayed in
the tool list.
When the tool dialog is open, the control lets you enter tool texts.
Press the Tool texts soft key.
You can define up to 999 tool texts with a length of max. 80
characters.
New texts are inserted in the next free line after the
cursor position
When deleting and editing a tool text, please
remember that the text might be used for more than
one tool
