ICP contour axial
Select Milling
Select ICP contour axial

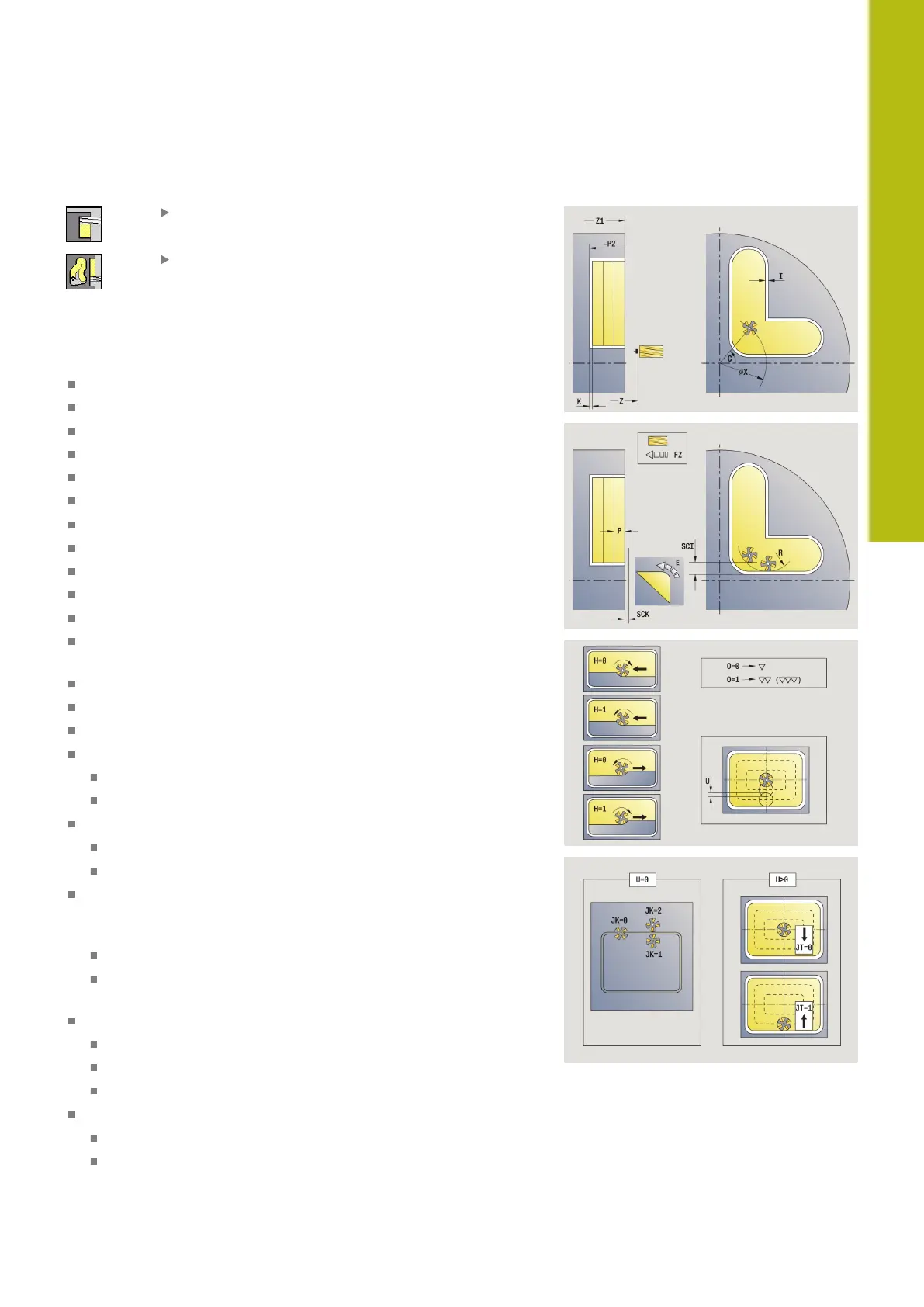

Depending on the parameters, the cycle mills one of the following
contours or roughs/finishes a pocket on the face.
Cycle parameters:
X, Z: Start point
C: Spindle angle – C-axis position
Z1: Millg. top edge (default: Starting point Z)
P2: Milling depth
I: Contour-parallel oversize
K: Infeed-direction oversize
P: Feed depth (default: total depth of one infeed)
FZ: Approach feed (default: active feed rate)
E: Reduced feed for circular elements (default: active feed rate)
FK: ICP contour number
T: Tool number – turret pocket number
G14: Tool change point
Further information: "Tool change point G14", Page 180
ID: ID no.
S: Cutting speed or Constant speed
F: Feed per revolution
O: Roughing/Finish – Only for pocket milling
0: Roughing
1: Finishing
H: Mill cutting direction
0: Up-cut
1: Climb
U: Overlap factor – defines the overlap of milling paths (default:
0.5) (range: 0 to 0.99)
Overlap = U * milling diameter
U = 0 or no input: Contour milling
U > 0: Pocket milling – Minimum overlap of milling paths = U
* milling diameter
JK: Contour milling – Input is evaluated only for contour milling
0: On the contour
1: Within the contour
2: Outside the contour
JT: Pocket milling – Input is evaluated only for pocket milling
0: From the inside out
1: From the outside in
