4.11 Graphic simulation
The Simulation submode enables you to check the machining
sequence, the proportioning of cuts and the finished contour
before actual machining.
In Machine mode of operation and Teach-in submode this function
simulates the execution of a single Teach-in cycle—in Program
Run submode it simulates a complete Teach-in program or DIN
program.

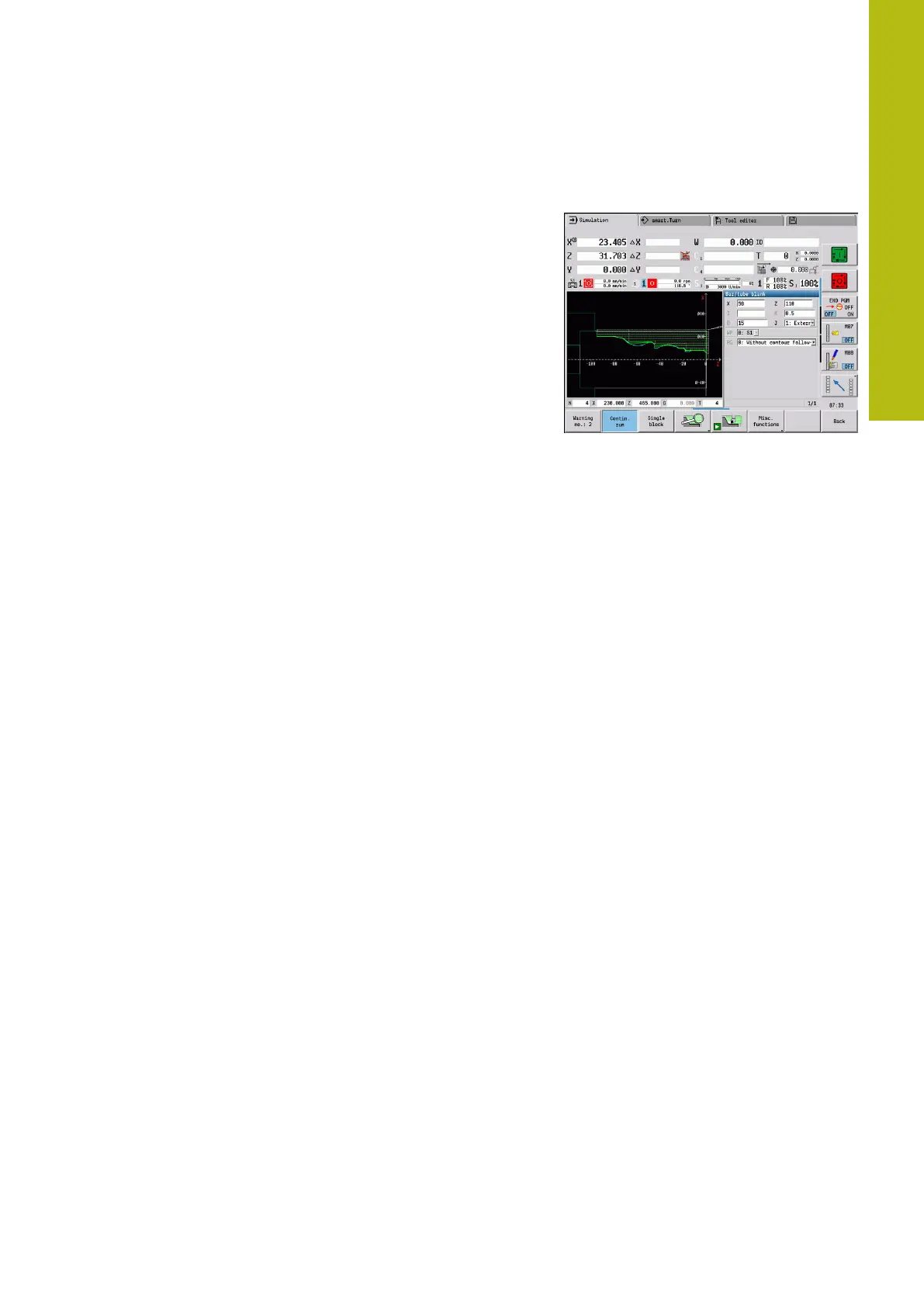

A programmed workpiece blank is displayed in Simulation
submode. The control also simulates machining operations that
are executed with a traversable spindle or the C axis on the face or
lateral surface. This allows you to check the complete machining
process.
In Machine operating mode and Teach-in submode, the Teach-
in cycle you are currently processing is simulated. In Program
run submode the simulation starts from the cursor position.
smart.Turn and DIN programs are simulated from the beginning of
the program.
Further information: "Simulation submode", Page 530
